Installation: Diverter Valve
diverter valve
Before installing, shut o water supply.
Caution
1

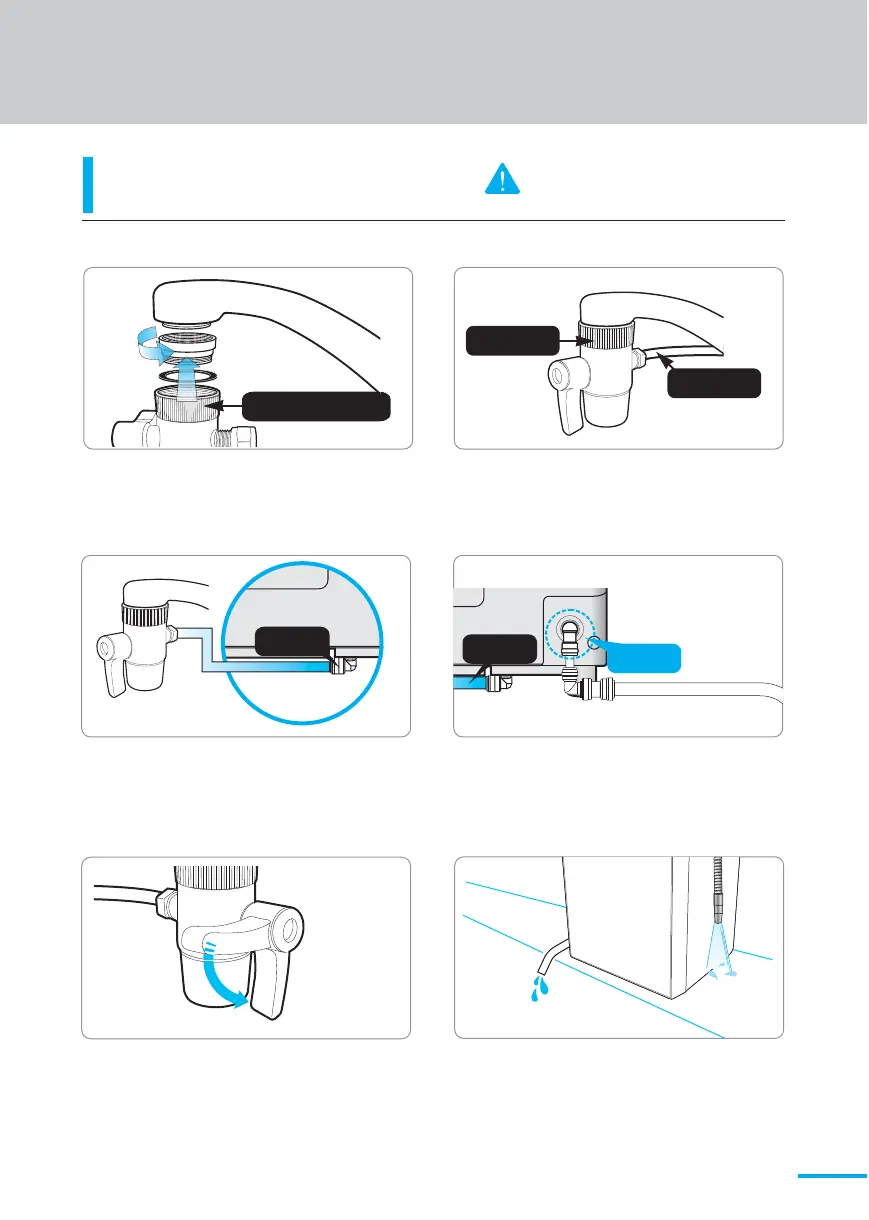

Remove aerator from faucet. Attach
diverter valve. Use sizing rings and
grommet if needed.
3
Push the 1/4in.(PE) hose all the
way in the water inlet at the bottom
of the machine.
4
Connect stainless steel acid line
to the acidic outlet and allow it to
drain into your sink.
2
Connect 1/4 in.(PE) hose to the
diverter in "Figure 2". Shown above.
[Figure 4]
[Figure 1]
[Figure 5]
5
After finishing the connection of
"Figure 4" open the water supply
valve and adjust the water
pressure.
6
Check for leaks on all connections
after installation is completed.
[Figure 2]
diverter
PE Hose
inlet
[Figure 3]
inlet
outlet
[Figure 6]
