Echo CS-2511T Owner's/Operator's Manual

23
CS-2511T

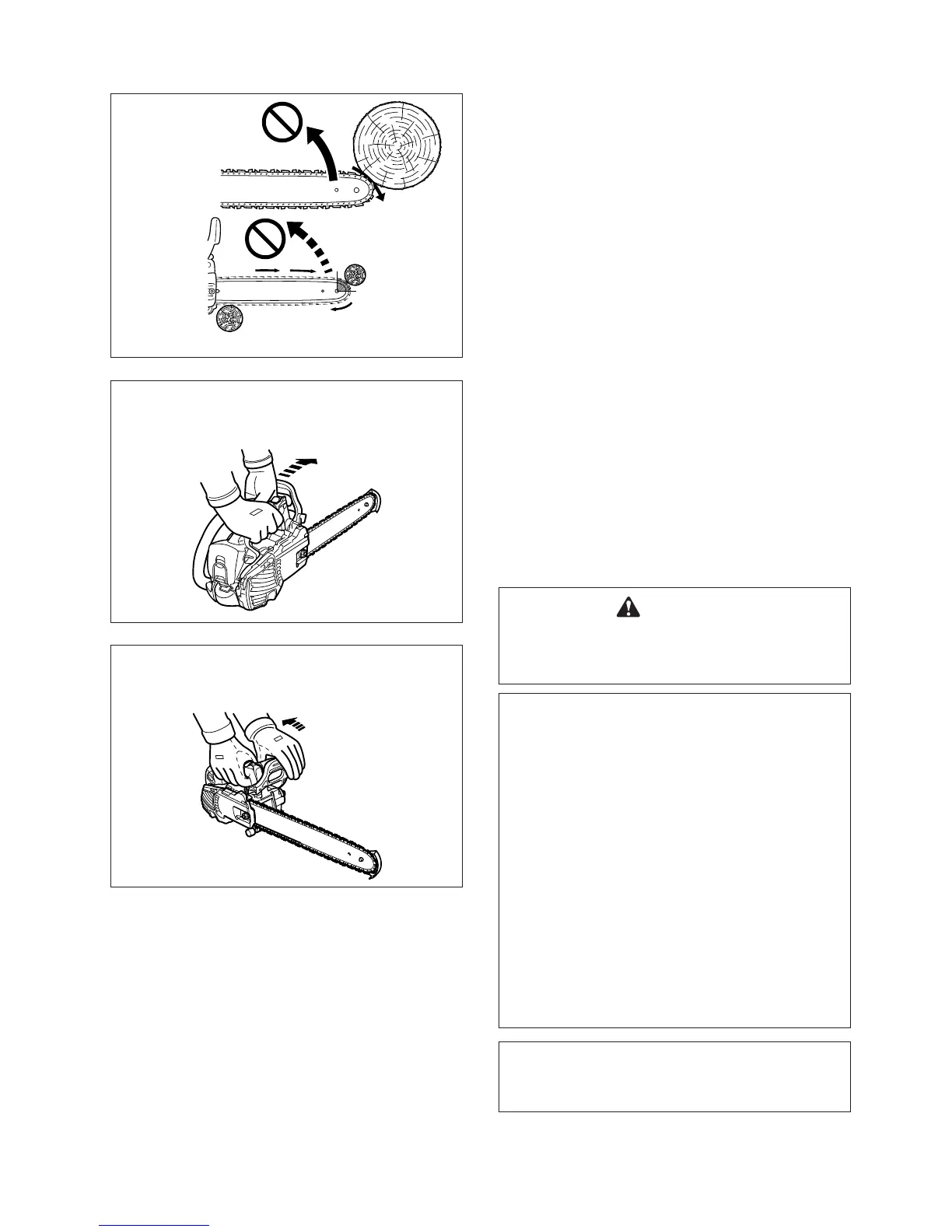

Chain brake function
When the lever is pushed forward, chain brake
instantly stops the chain.
Chain brake unlock
When the lever is fully pulled toward the
operator, brake is unlocked.
When the bar nose hits another tree, etc.
Improper thrust cutting
CHAIN BRAKE OPERATION
• Set the lever in the unlocked position before
starting to cut.
• If the brake is tripped by kickback reaction, the
chain will stop immediately. Release the throttle
to avoid possible damage to the engine or
clutch.
• Do not attempt to operate the engine with the
brake locked.
TESTING THE BRAKE
• Start the engine on a solid level surface and run
at a fast idle until warm.
• Hold the saw rmly by the handles and
accelerate the engine to a fast idle.
• Slowly operate the chain brake lever while
holding the saw rmly on the ground.
When the brake lever trips, the chain should
stop.
Immediately release the throttle trigger.
WARNING
If the chain does not stop immediately, return
the saw to your authorized ECHO dealer for
repair.
NOTICE
• For practice, while cutting a small tree, push
the lever forward to lock the brake.
• Conrm that the brake works properly before
each use.
• If the chain brake is clogged with wood chips,
function of the brake may deteriorate.
Always keep the device clean.
• Do not increase engine revolution while the
chain brake is locked.
• Use the chain brake only in starting or in
emergencies.
• When using throttle latch at starting, keep the
chain brake locked.
And after starting the engine, unlock the brake
immediately.
IMPORTANT
Do not allow the saw to tip forward in order to
avoid damage to the chain.
Kickback motion
Kickback motion

Echo CS-2511T Specifications

General

Engine Displacement	25.0 cc
Fuel Tank Capacity	190 ml
Oil Tank Capacity	140 ml
Weight (without bar and chain)	2.3 kg
Chain Pitch	3/8 in
Chain Gauge	0.050 in
Bar Length	12 in
Fuel Capacity	190 ml
Oil Capacity	140 ml
Guide Bar Length	12 in
