Echo CS-2511T Owner's/Operator's Manual

24
CS-2511T
End of the guide bar may be placed at the
height of about 40 cm (16 in.).
40 cm
(16 in.)
Rear handle should be gripped lightly with the
right hand.

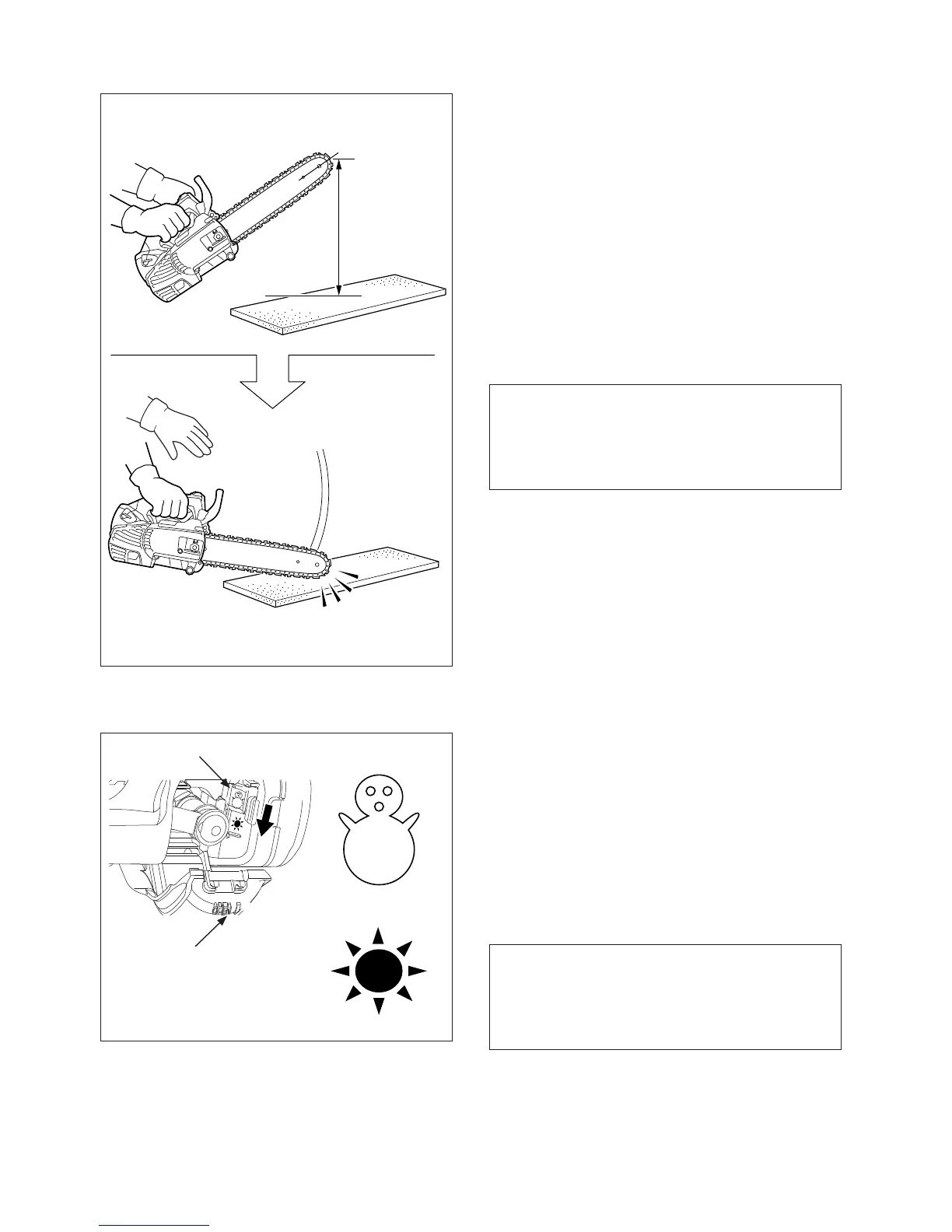

AUTOMATIC CHAIN BRAKE
Kickback produced from the tip of the guide bar will
trip the automatic chain brake. To make sure that
the automatic chain brake operates properly, follow
these steps:
1. Stop the engine.
2. Hold the saw with the guide bar approximately
40 cm (16 in.) above a wooden surface. Right
hand should hold the rear handle, and left hand
should hold the front handle.
3. Release the front handle and drop the end of the
guide bar against the wooden surface.
4. The impact should lock the chain brake.
IMPORTANT
When checking the operation of the automatic
chain brake, use a soft surface substance like
wood to provide the impact so the chain is not
damaged.
WINTER OPERATION
Use the air shutter to prevent carburetor trouble in
winter.
• Open the spark plug cover (see page 26 “Spark
plug cover”).
• Push down the air shutter to cold weather
position.
• For operation above 5 ºC (41°F), return (pull up)
the air shutter to its original place (sun mark
appears).
NOTICE
For operation at normal temperature, return the
air shutter to its original position (with the sun
mark appears). (5°C, 41°F)
It causes over heating of the engine.
Warm weather position
(sun mark)
Cold weather position
(snowman mark)
Air shutter
Spark plug cover

Echo CS-2511T Specifications

General

Engine Displacement	25.0 cc
Fuel Tank Capacity	190 ml
Oil Tank Capacity	140 ml
Weight (without bar and chain)	2.3 kg
Chain Pitch	3/8 in
Chain Gauge	0.050 in
Bar Length	12 in
Fuel Capacity	190 ml
Oil Capacity	140 ml
Guide Bar Length	12 in
