Correct Use Of Chain Brake
Chain Brake Operation
• Set the lever in the unlocked
position before starting to cut.
• If the brake is tripped by kickback
reaction, the chain will stop
immediately. Release the throttle to
avoid possible damage to the
engine or clutch.
• Do not attempt to operate the
engine with the brake locked.
Testing The Brake
• Start the engine on a solid level
surface and run at a fast idle until
warm.
• Hold the saw firmly by the handles
and accelerate the engine to a fast
idle.
• Slowly operate the chain brake
lever while holding the saw firmly
on the ground. When the brake lever trips, the chain should stop.
Immediately release the throttle trigger.
Do not allow the saw to tip forward in order to avoid damage to the
chain.
If the chain does not stop immediately, return the saw to your
authorized dealer for repair.
Note:
• For practice, while cutting a small tree, push the lever forward to lock
the brake.
• Confirm that the brake works properly before each use.
• If the chain brake is clogged with wood chips, function of the brake may
deteriorate. Always keep the device clean.
• Do not increase engine RPM while the chain brake is locked.

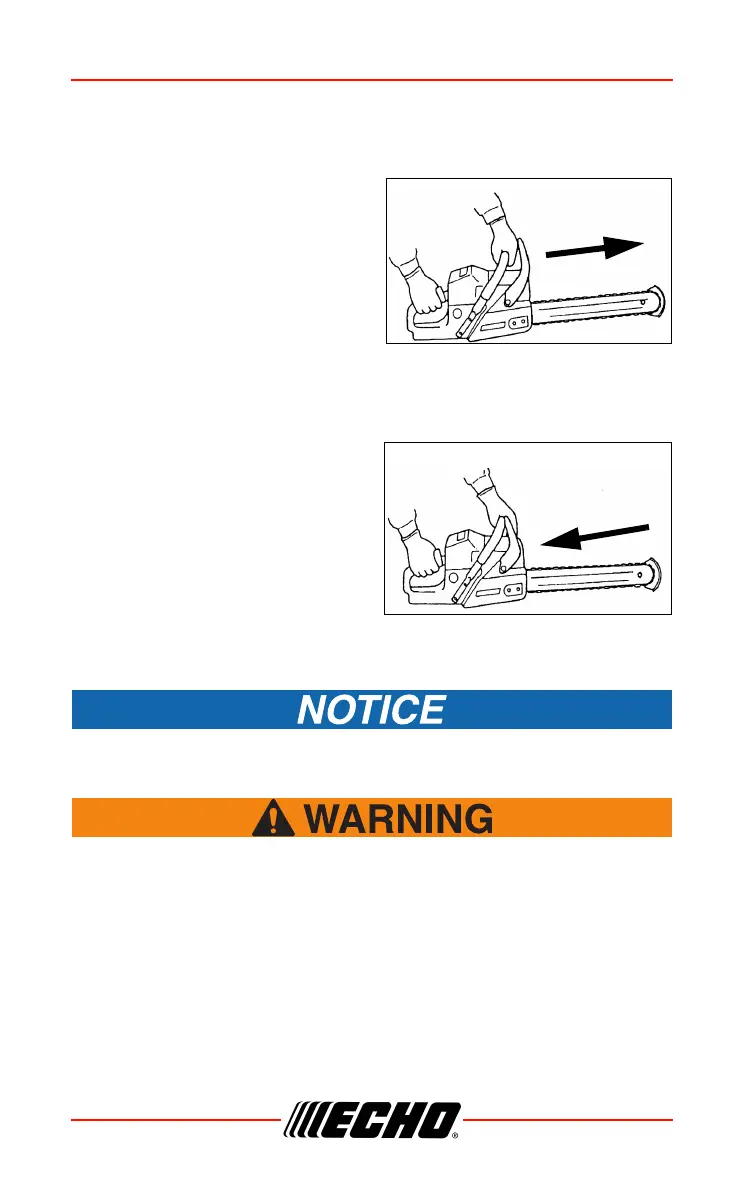

Locked
Shown with optional
Kick Guard
TM
Unlocked
Shown with optional
Kick Guard
TM

Echo CS-2511T Specifications

General

Engine Displacement	25.0 cc
Fuel Tank Capacity	190 ml
Oil Tank Capacity	140 ml
Weight (without bar and chain)	2.3 kg
Chain Pitch	3/8 in
Chain Gauge	0.050 in
Bar Length	12 in
Fuel Capacity	190 ml
Oil Capacity	140 ml
Guide Bar Length	12 in
