Echo CS-271T Service Manual

STARTER SYSTEM
CS-271T
8

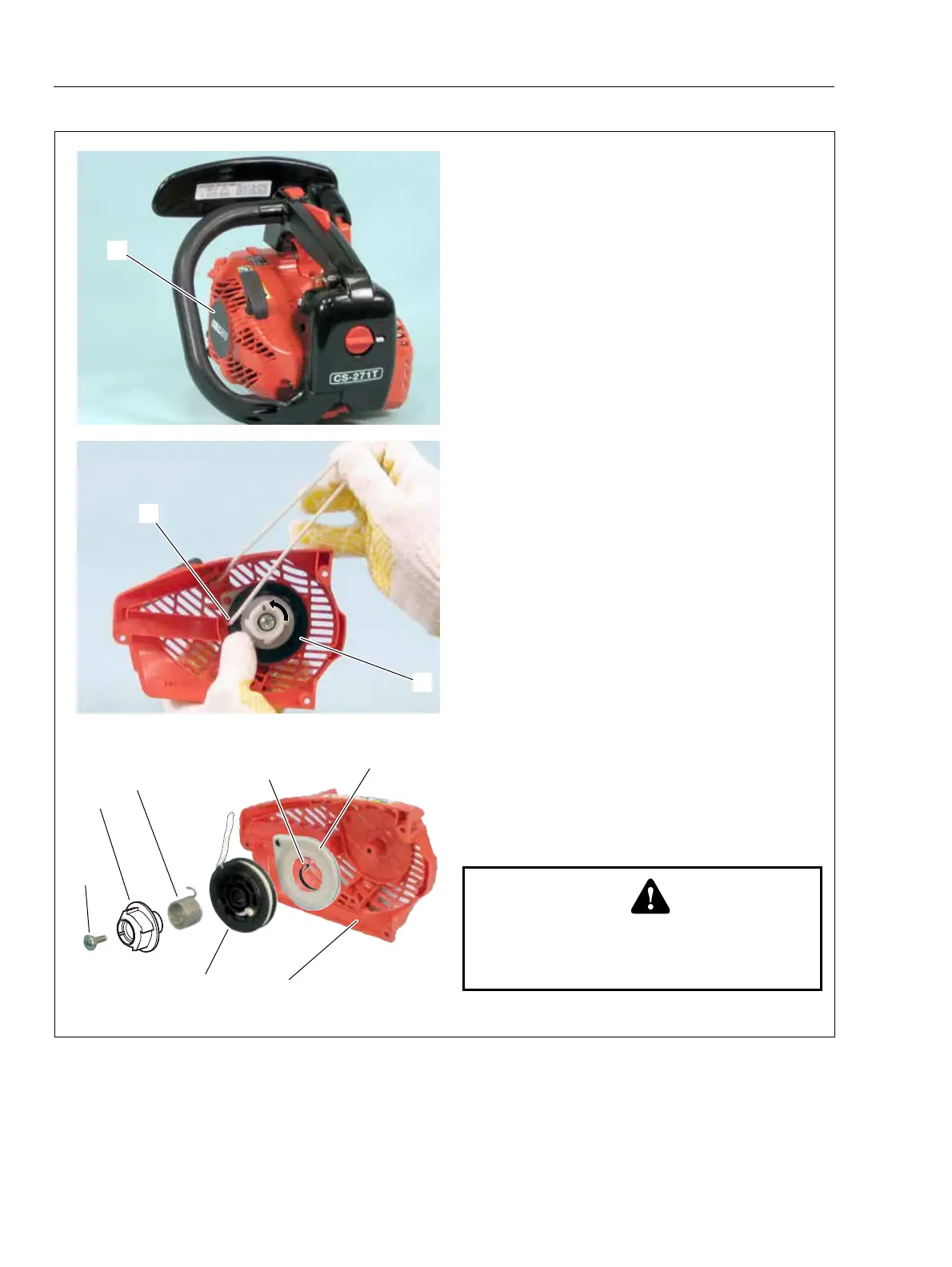

2-1 Disassemblingstarterassembly
1. Remove three screws and remove starter as-
sembly (A) from unit.
2. Pull out starter rope about 30cm (12in) and hold
rope reel (B) by hand. Loop excess rope in rope
reel notch (b) as shown.
3. Rotate rope reel (B) counterclockwise to release
tension of rewind spring.
4. Remove screw (C).
5. Remove pawl catcher (D) and power spring (E).
6. Remove rope reel (B) from starter case (F) slow-
ly to prevent rewind spring (G) from unwinding.
7. Remove rewind spring case assembly (H) from
starter case (F).
838
WARNING DANGER
Weareyeprotectionandtakecarewhen
removing starter drum. Rewind spring may
unwindsuddenlyandcausepersonalinjury.
A
B
C
D
F
G
H
b
E
B

Echo CS-271T Specifications

General

Engine Displacement	26.9 cc
Bar Length	12 inches
Chain Pitch	3/8 inch
Fuel Capacity	0.21 L
Chain Oil Type	Bar and chain oil
Chain Gauge	0.050 inch
Oil Capacity	160 ml
