Echo CS-271T Service Manual

STARTER SYSTEM
CS-271T
9

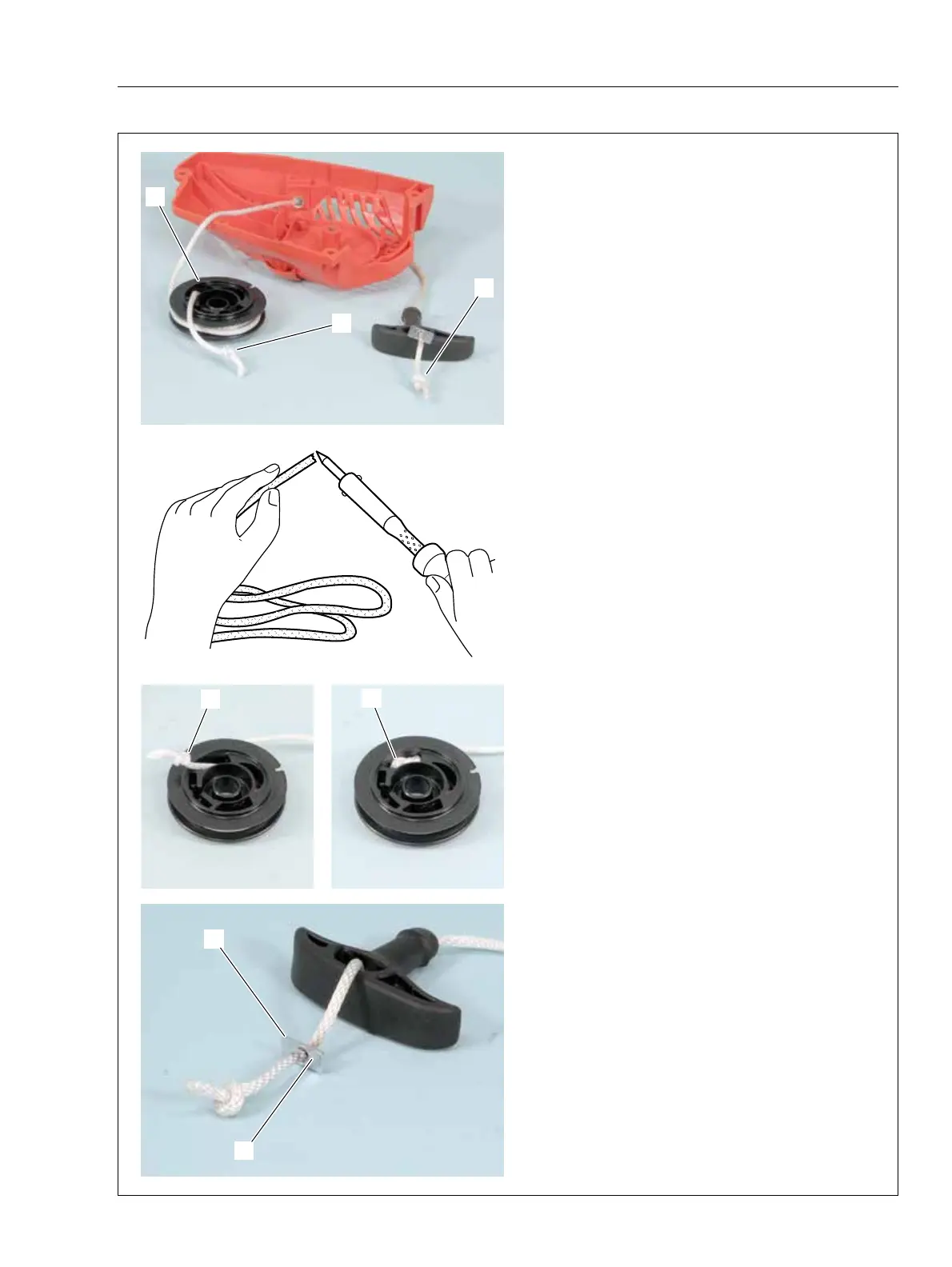

2-2 Replacingstarterrope
1. Pull out and untie knot (A).
2. Pull knot (B) to remove rope from rope reel (C).
4. Make a knot (D) at end of starter rope and pass
the rope through hole of rope reel, then press the
knot (D) into recess as shown.
3. When installing a new starter rope, singe both
ends of the rope to prevent fraying.
5. Pass the other end of starter rope through start-
er case, from inside to outside.
6. Pass starter rope through starter grip. Set plate
(E) facing smooth side (e) to starter rope end.
Make a knot as shown.
7. Tighten knot. Push plate and knot into recess of
starter grip.
A
B
C
D
D
E
e

Echo CS-271T Specifications

General

Engine Displacement	26.9 cc
Bar Length	12 inches
Chain Pitch	3/8 inch
Fuel Capacity	0.21 L
Chain Oil Type	Bar and chain oil
Chain Gauge	0.050 inch
Oil Capacity	160 ml
