Echo CS-271T Service Manual

STARTER SYSTEM
CS-271T
10

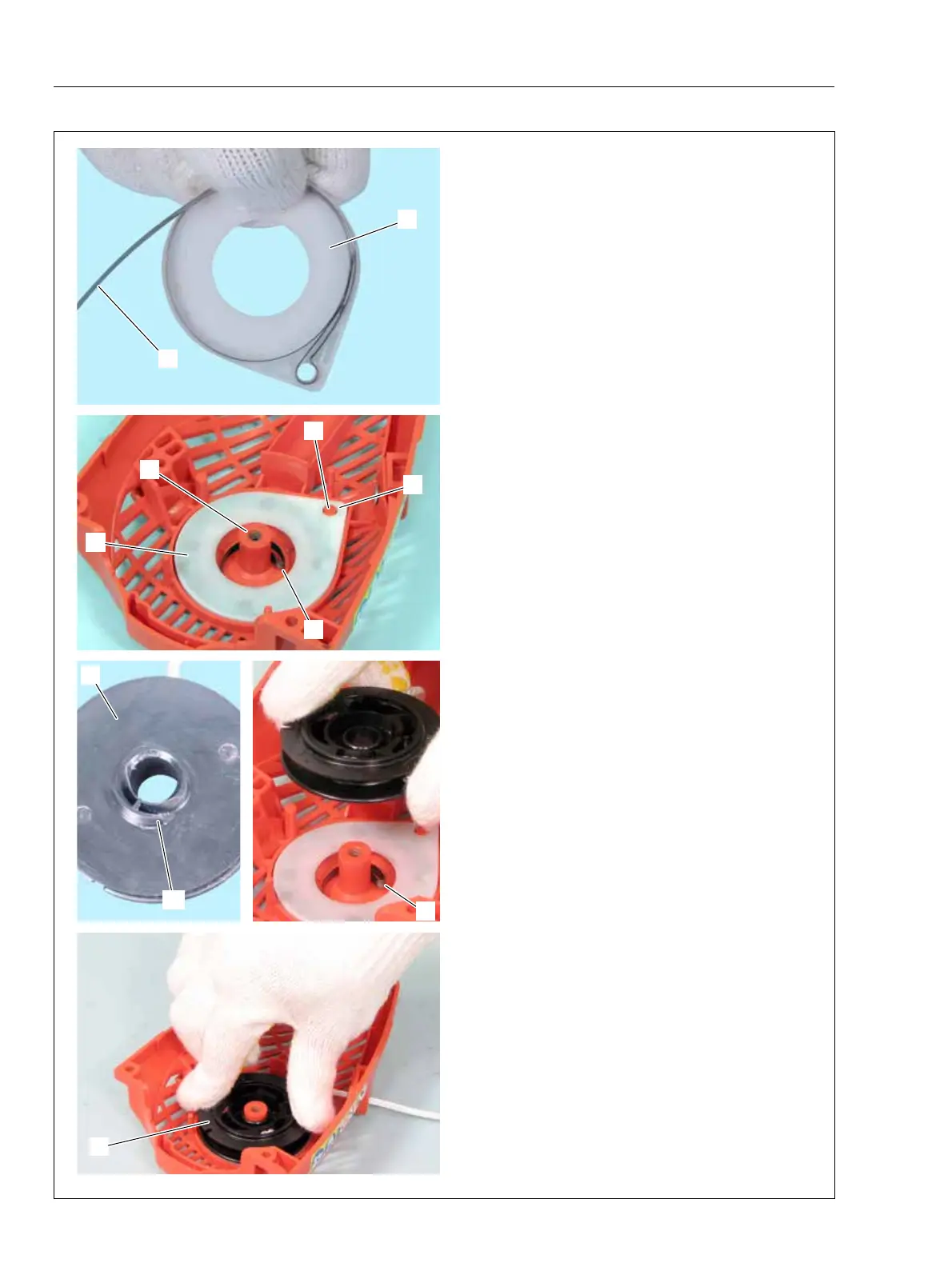

2-3 Assemblingstarter
1. If rewind spring (A) is unwound from rewind
spring case (B), wind the spring inside case as
shown.
2. Carefully install rewind spring case assembly
(C) on starter case, matching hole (c) with post (D).
Hook (a) of rewind spring should contact with post
(E) of starter case.
3. Assemble rope reel (F) engaging hook (f1) with
hook (a) of rewind spring.
4. Check for proper engagement of rewind spring
and rope reel by turning rope reel (F) clockwise
and counterclockwise.
A
B
E
D
c
C
F
f1
a
a
F

Echo CS-271T Specifications

General

Engine Displacement	26.9 cc
Bar Length	12 inches
Chain Pitch	3/8 inch
Fuel Capacity	0.21 L
Chain Oil Type	Bar and chain oil
Chain Gauge	0.050 inch
Oil Capacity	160 ml
