Echo CS-271T Service Manual

IGNITION SYSTEM
CS-271T
17
3-5Replacingignitionswitch

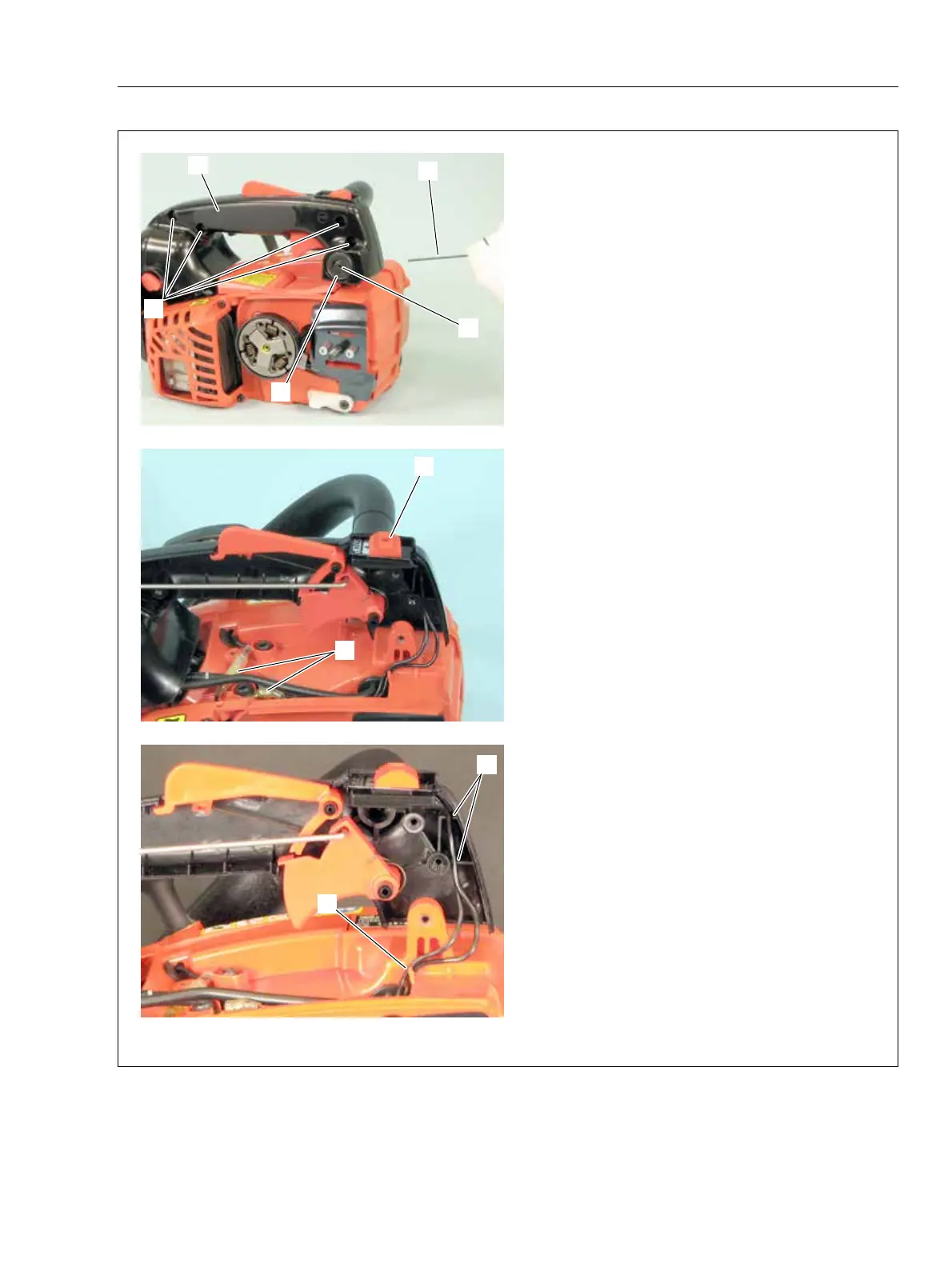

1. Remove sprocket guard.
2. Remove cushion cap (A) by hooking hole (a)
with small hexagon wrench (B) etc., and remove
screw inside.
3. Remove four screws (C).
4. Remove top handle lid (D).
5. Disconnect terminals (e) and remove ignition
switch (E).
6. Assemble new ignition switch, passing leads
through three guides (F).
7. Connect terminals of ignition switch.
8. Pass leads under fuel lines.
9. Reassemble all removed parts.
A
B
F
D
E
e
a
C
F
