DESCRIPTION CS-310
22 X7503275401
© 02/2019 ECHO Inc.
Preparation For Use
Saw chain is sharp! Always wear gloves when handling
assembly, otherwise serious personal injury may result.
Note: The machine may be delivered with guide bar,
tip guard, and saw chain separated. Install
guide bar, tip guard, and saw chain as follows.

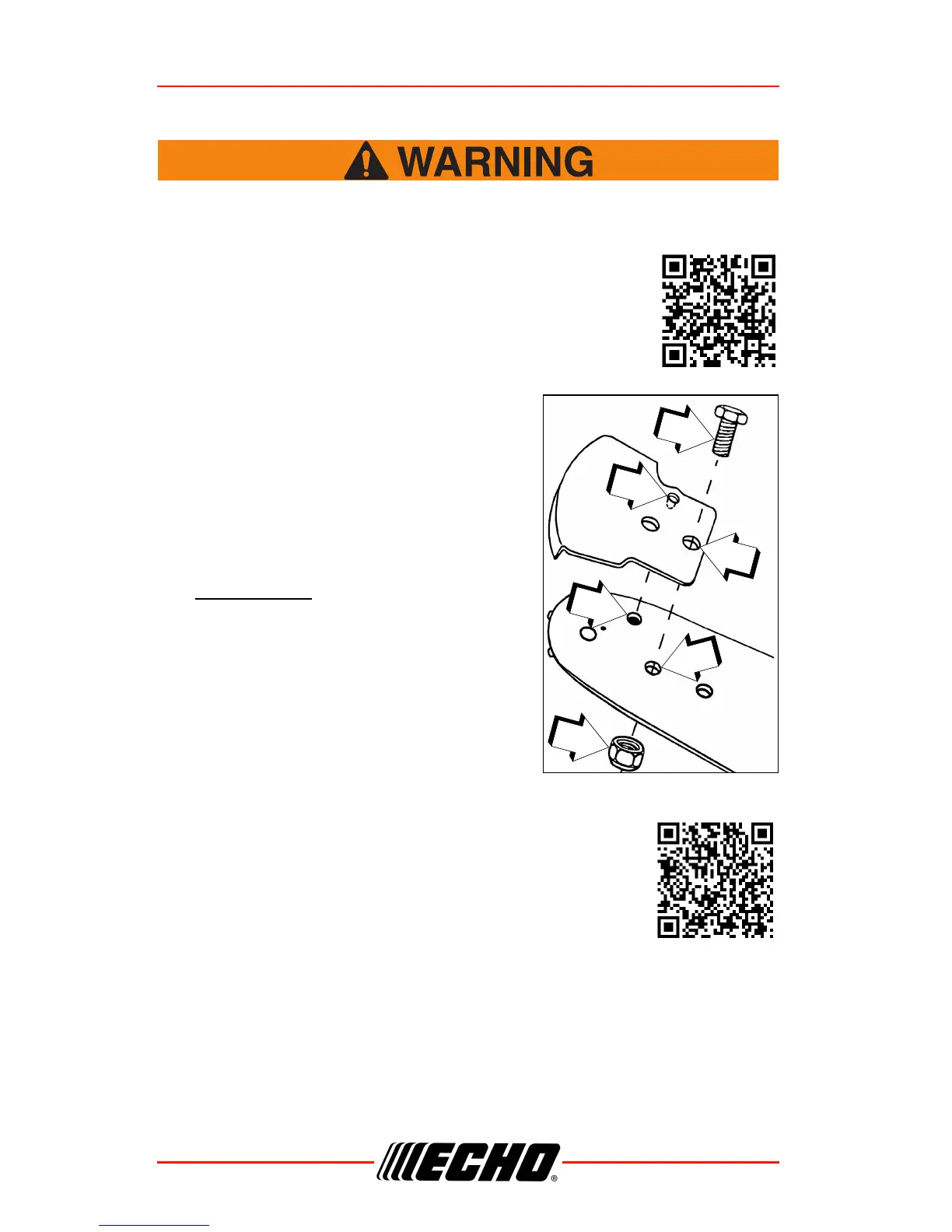

Tip Guard to Bar Instructions
Tools Needed: Two 11 mm (7/16 in.)
Wrenches. For saws with Tip Guard P/N
2894901 and Symmetrical or
Asymmetrical Low-Kick type (Double
Guard) guide bars.
1. Install bolt (A) in rear hole (B) of tip
guard and through front hole (C) in guide
bar.
2. IMPORTANT:
Dimple (D) in tip guard
must engage recess (E) in guide bar.
3. Securely tighten nut (F) and bolt (A).
Guide Bar and Saw Chain Installation/Removal
1. Release the cylinder cover latches, and remove the
cylinder cover.
2. Remove spark plug lead.
