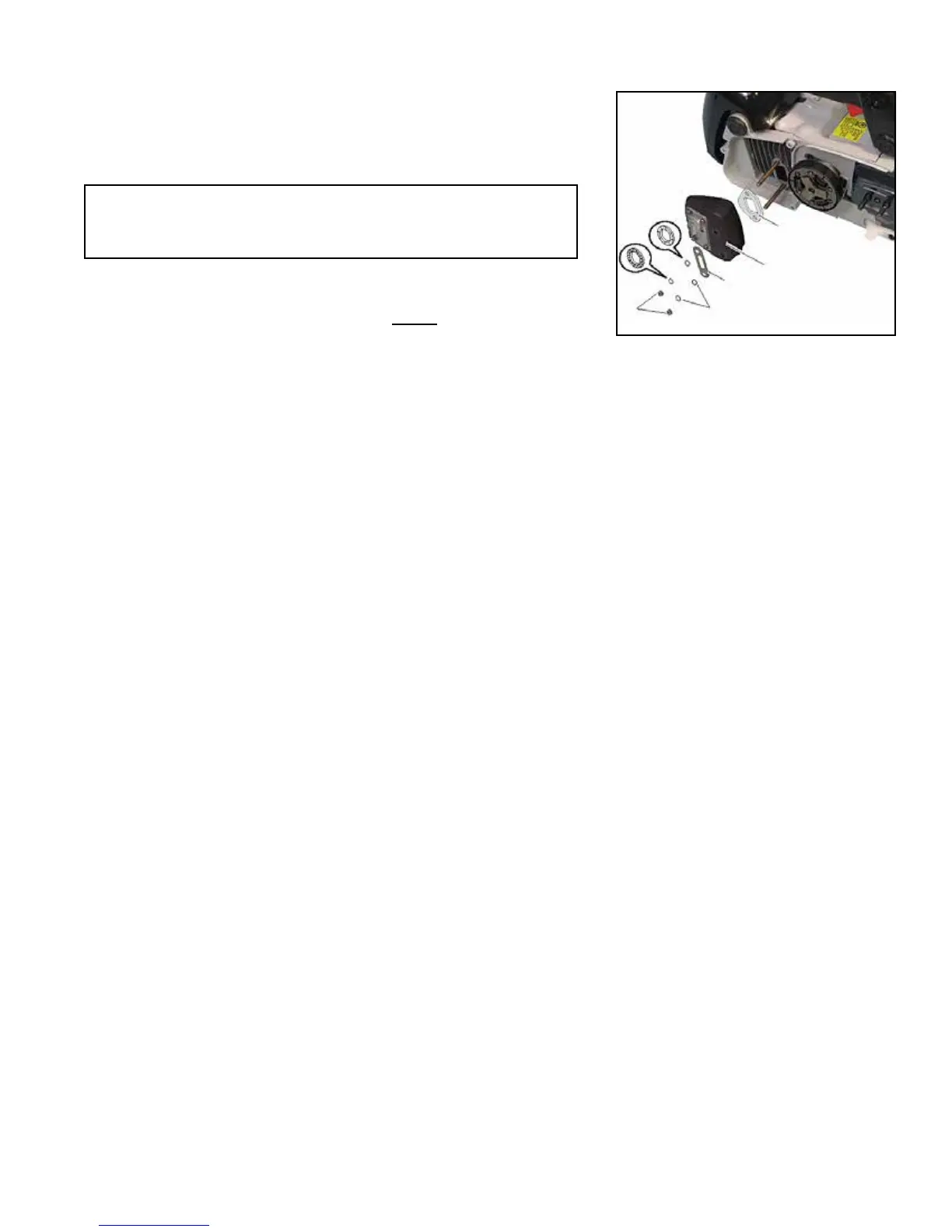

7. Install mufer gasket (F), mufer (E), eyeplate (D), washer sets
(C), and mufer nuts (B). Tighten nuts to 70 kgf • cm (7 N-m, 60 in
• lbf), but do not exceed specications, otherwise damage to studs
may occur.
IMPORTANT
Washer sets must be installed with serrated surfaces facing apart,
as shown in illustration.
8. Connect spark plug lead and replace air lter cover.
9. Start engine, and allow unit to warm up at idle for several minutes.
10. Stop engine, and re-tighten mounting nuts to to 70 kgf • cm (7
N-m, 60 in • lbf), but do not exceed specications, otherwise dam-
age to studs may occur.
11. Install mufer cover and tighten screws.
12. Install guide bar and chain, clutch cover, and guide bar nuts, tight-
ening nuts until nger tight. Adjust chain tension as instructed in
“Adjustment, Chain Tension” section of instruction manual.
13. Start engine and check for exhaust leaks between mufer and
cylinder head. Stop engine if leak is found and correct problem
before operating chain saw.
