28

CS-800P

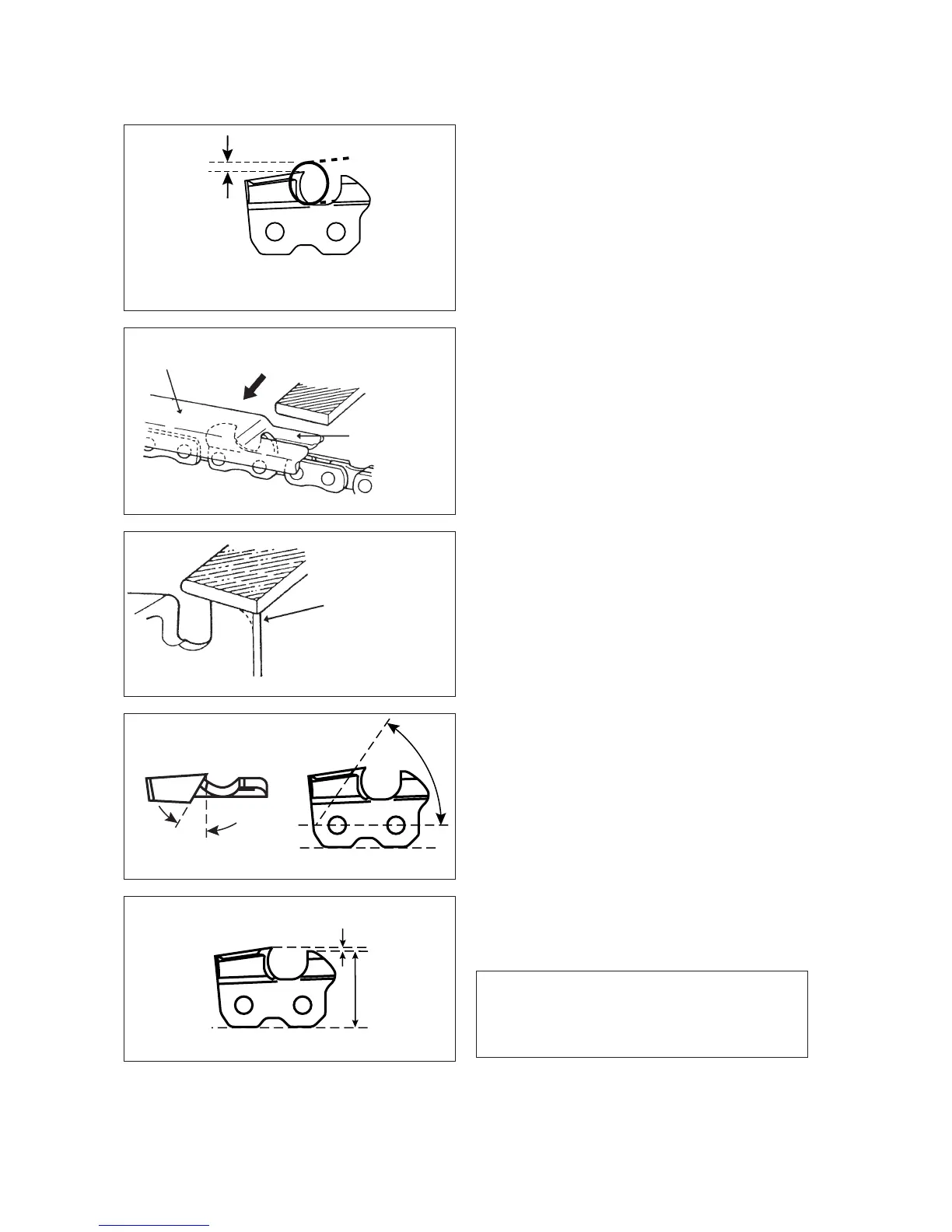

s 0LACETHEDEPTHGAUGETOOLlRMLYONGUIDEBAR

so that depth gauge protrudes.

Then ﬁle top of depth gauge with the ﬂat ﬁle until

ﬂat with top of the depth gauge tool.

- Be sure to round off the front edge of the

depth gauge.

Properly ﬁled cutters are shown in illustration.

When setting of the chain is ﬁnished, soak it in oil

and wash away ﬁlings completely before using.

- When chain has been ﬁled on the bar,

supply sufﬁcient oil to it, rotate the chain

slowly to wash away the ﬁlings before using

again.

- If the chain saw is operated with ﬁlings

clogged in the groove, the saw chain and the

guide bar will be damaged prematurely.

- If the saw chain becomes soiled with resin, for

instance, clean it with kerosene and soak in it

oil.

NOTICE

These angles are referred to as Oregon 72LPX.

To sharpen other follow chain manufacturer’s

instruction.

Remove until

ﬂat with tool

Depth gauge tool

Round off the edge

1/5

One ﬁfth of ﬁle diameter remains

above cutter edge

Top plate ﬁling angle

25°

Top plate cutting angle

55°

Parallel

0.65 mm (0.025 in.)

Depth gauge

Other manuals for Echo CS-800P

Operator's Manual36 pages
