Asemble the Shaft
ASSEMBLY

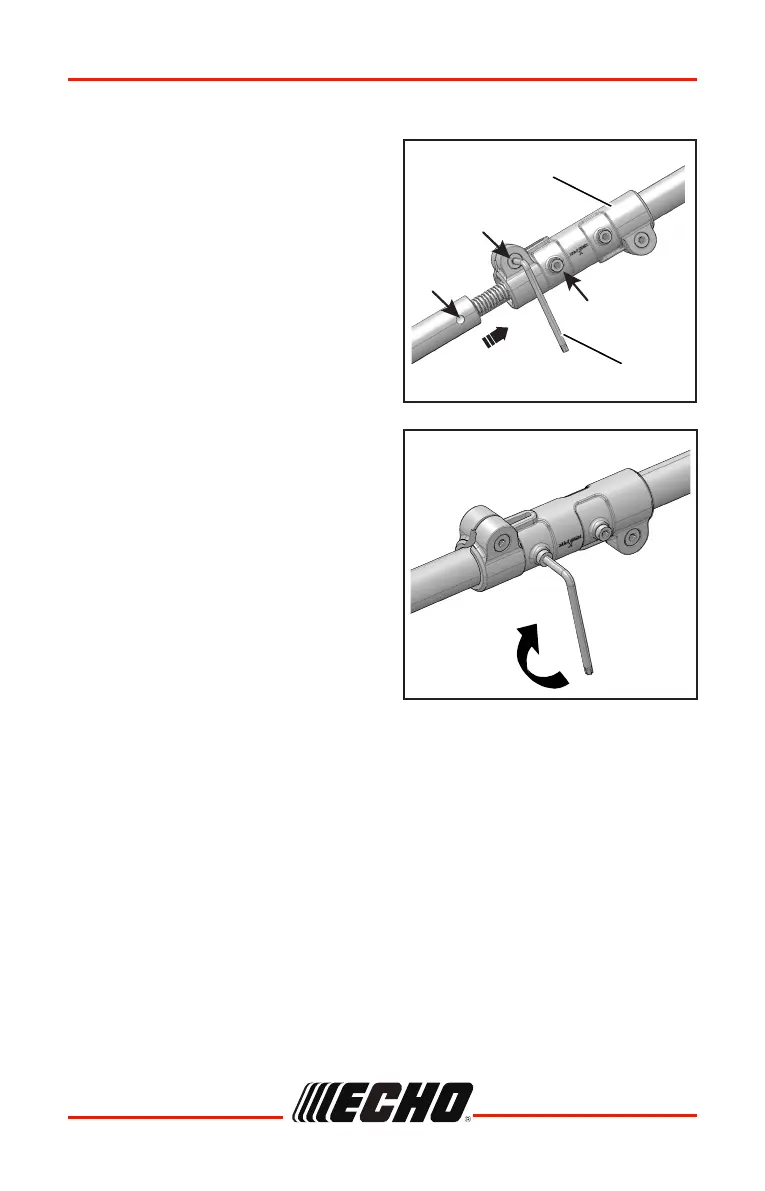

1. Loosen the screws (A,B) on the
coupler (7) with the wrench (12).
2. Align the positioning hole (C) on the
lower shaft with the screw (B) and
slide the two shafts together.
3. Turn the lower shaft until the screw
(B) locks into the positioning hole.
4. Tighten the screws (B,A).
A
B
C
12
7
