MAINTENANCE
Nylon Line Head Disassembly Instructions
Note: For normal use, Speed-Feed® head disassembly is not necessary.
However, if circumstances require disassembly, follow these instructions.

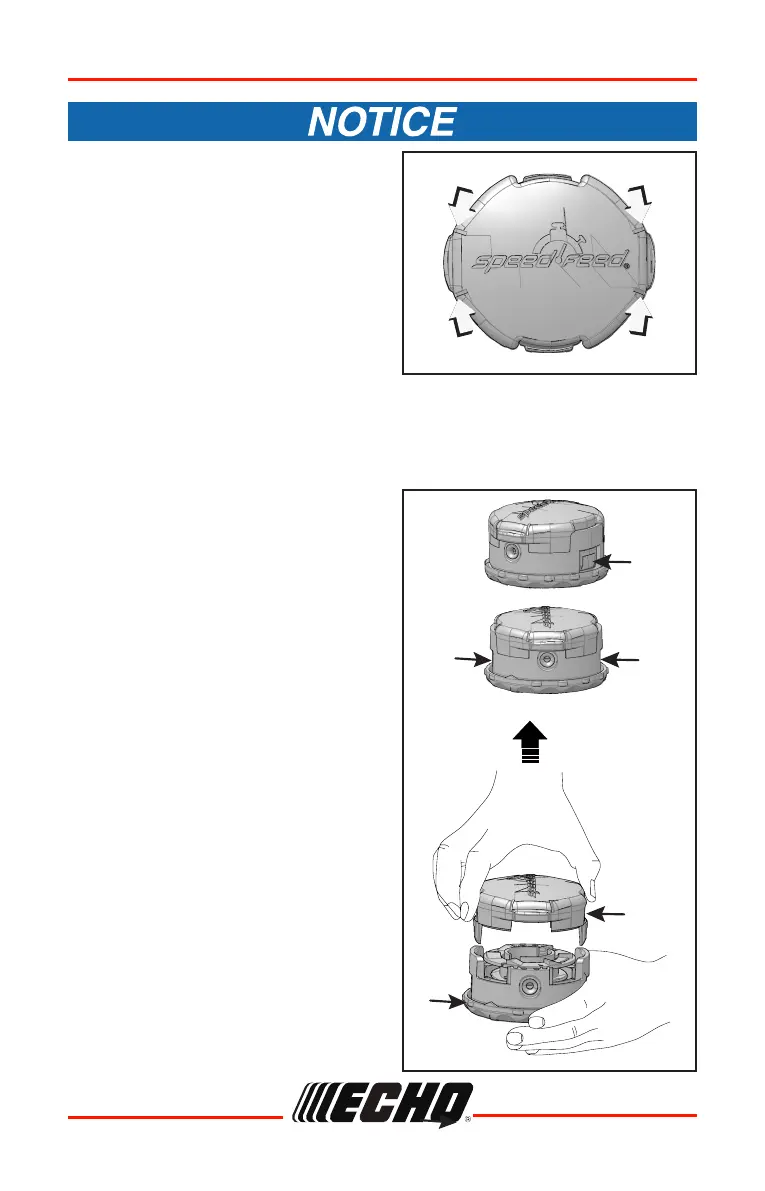

1. Press top of locking tabs (L) on
both sides of Speed-Feed® head
to release cover (M) from eyelet
carrier (N).
2. Remove cover from eyelet carrier.
L
L
L
M
I
When the wear indicators located
at the bottom of the Speed-Feed®
head are worn smooth, or if holes
appear, replacement of the cover
or the entire Speed-Feed® head is
required.
N
