Echo GT-1100

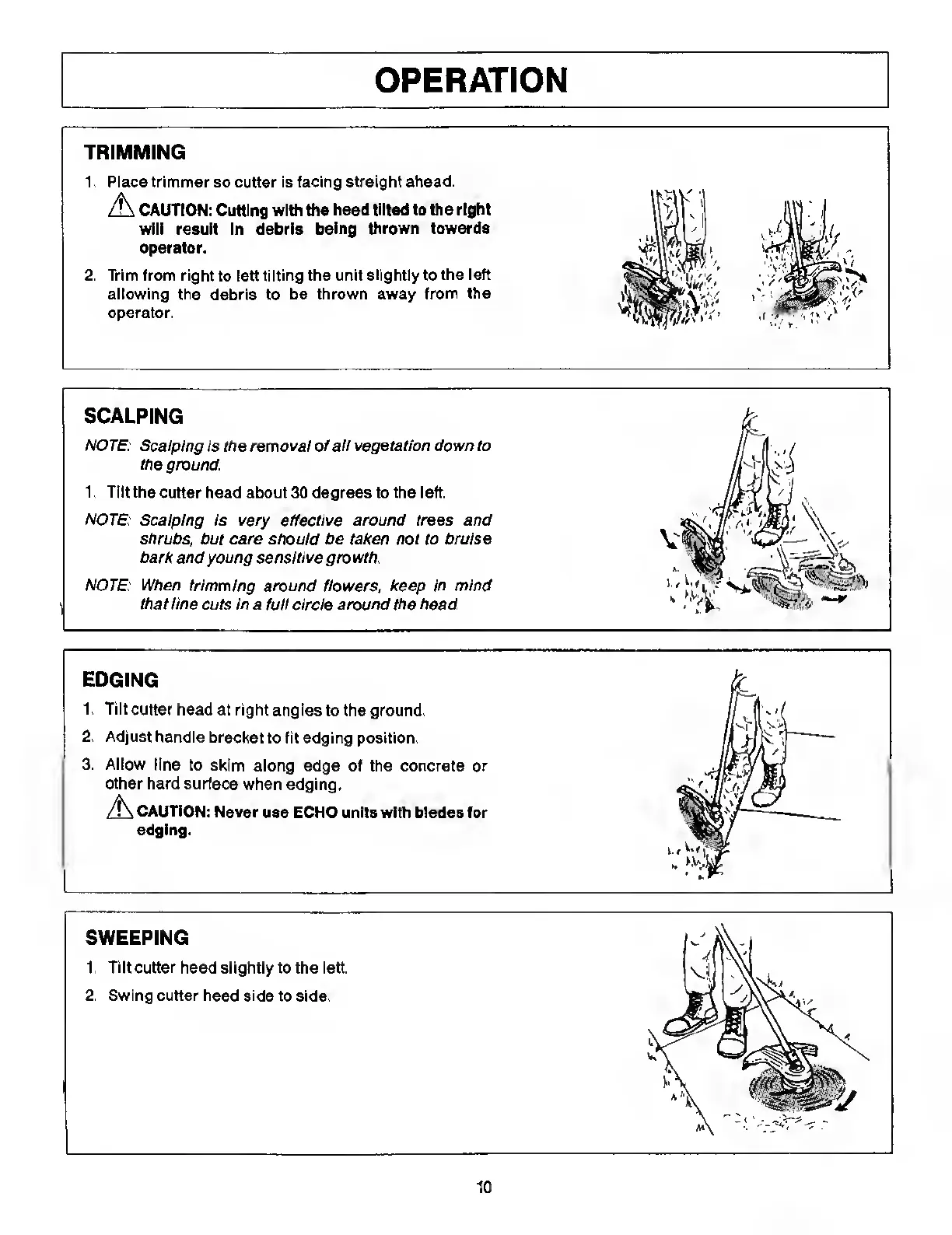

OPERATION
TRIMMING
1. Place trimmer so cutter is facing straight ahead.
CAUTION: Cutting with the head tilted to the right
will result In debris being thrown towards
operator.
2. Trim from right to left tilting the unit slightly to the left
allowing the debris to be thrown away from the
operator.
m
0
SCALPING
L
NOTE: Scalping is the removal of all vegetation down to
the ground.
Bf
1. Tilt the cutter head about 30 degrees to the left.
NOTE: Scalping is very effective around trees and
shrubs, but care should be taken not to bruise
bark and young sensitive growth.
„ ‘<t
m
NOTE: When trimming around flowers, keep in mind
that line cuts in a full circle around the head.
i. • •
■ n .4
EDGING
1. Tilt cutter head at right angles to the ground.
2. Adjust handle bracket to fit edging position.
3. Allow line to skim along edge of the concrete or
other hard surface when edging.
CAUTION: Never use ECHO units with blades lor
edging.
