Echo GT-1100

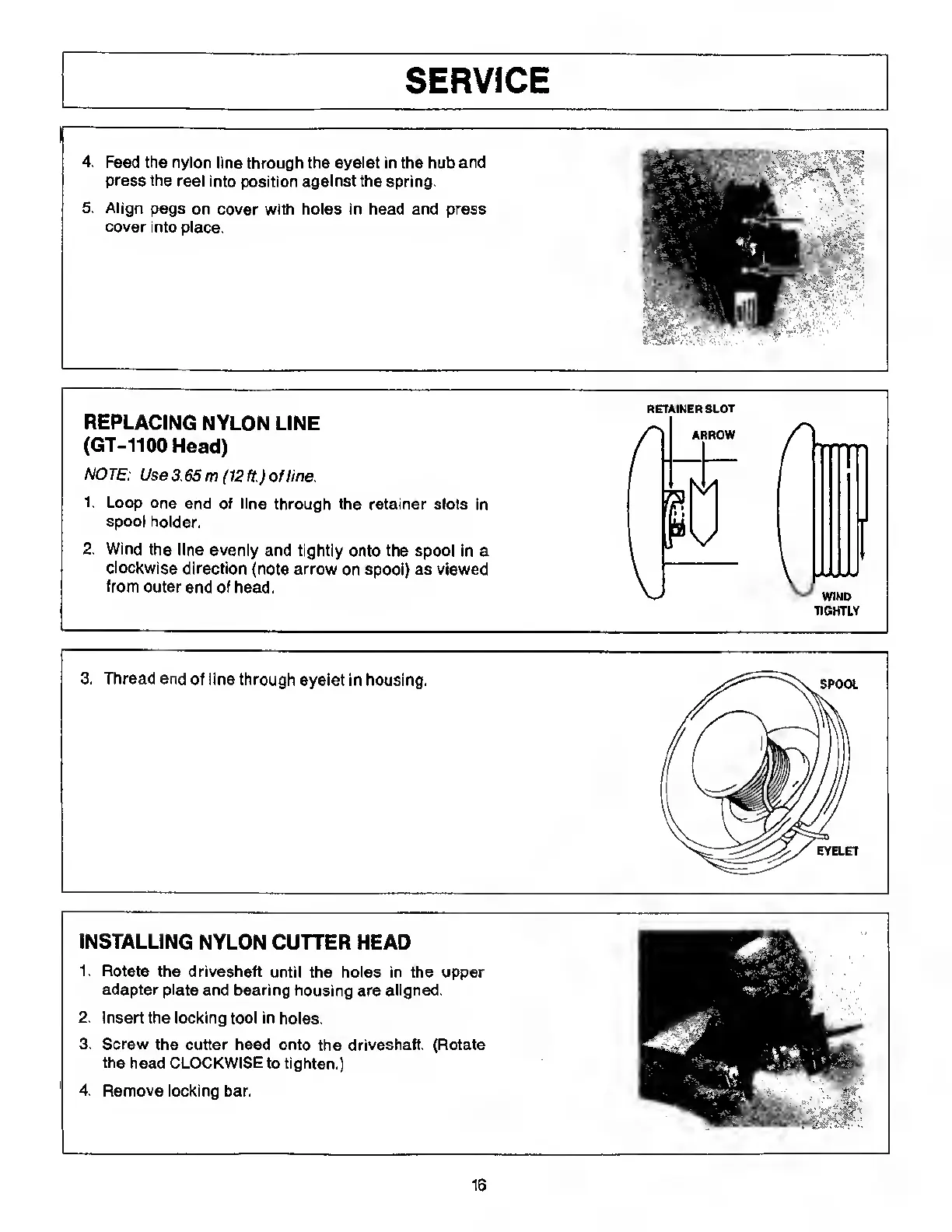

SERVICE
4. Feed the nylon line through the eyelet in the hub and
press the reel into position against the spring.
5. Align pegs on cover with holes in head and press
cover into place.
REPLACING NYLON LINE
(GT-1100 Head)
NOTE: Use 3.66 m (12 ft.) of line.
1. Loop one end of line through the retainer slots in
spool holder.
2. Wind the line evenly and tightly onto the spool in a
clockwise direction {note arrow on spool) as viewed
from outer end of head.
RETAINER SLOT
ARROW
iJ/i
/ WIND
TIGHTLY
3. Thread end of line through eyelet in housing.
INSTALLING NYLON CUTTER HEAD
1. Rotate the driveshaft until the holes in the upper
adapter plate and bearing housing are aligned.
2. Insert the locking tool in holes.
3. Screw the cutter head onto the driveshaft. (Rotate
the head CLOCKWISE to tighten.)
4. Remove locking bar.
16
