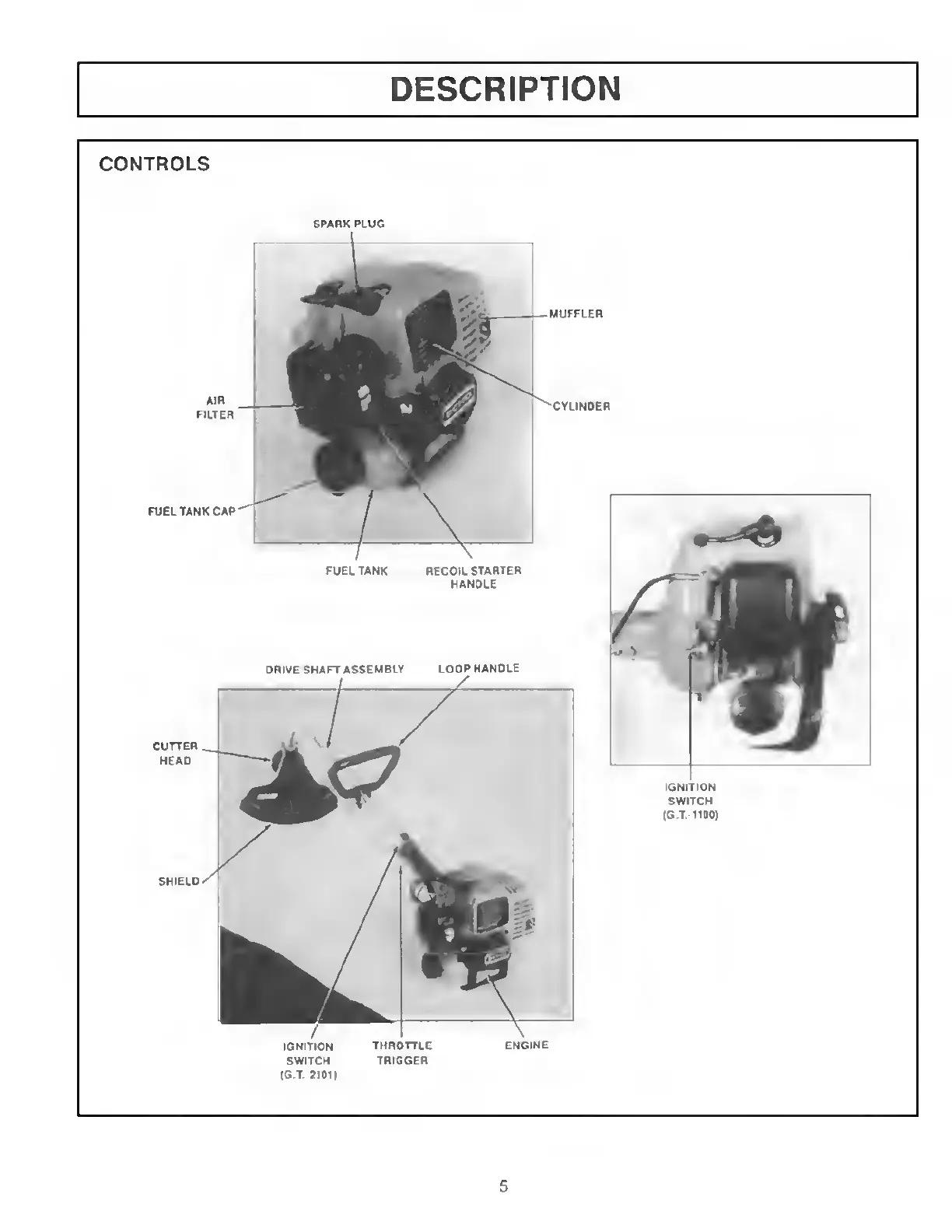

Page #6 background imageLoading...
Page #6 background image
SPARK
PLUG
MUFFLER
CYLINDER
FILTER
FUEL
TANK
CAP
SHIELD
ENGINE
DESCRIPTION
CONTROLS
FUEL
TANK
CUTTER
HEAD
RECOIL
STARTER
HANDLE
DRIVE
SHAFT
ASSEMBLY
LOOP
HANDLE
IGNITION
SWITCH
(G.T.
1100)
IGNITION
THROTTLE
SWITCH
TRIGGER
(G.T.
2101)
5

Table of Contents

Other manuals for Echo GT-1100

Preview: Parts Catalog
Parts Catalog11 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Echo GT-1100 and is the answer not in the manual?

Echo GT-1100 Specifications

G.T.-1100

Engine Specifications IconEngine Specifications
type of engineAir-cooled, two-stroke, single-cylinder, gasoline engine
bore32.2 mm
stroke26.0 mm
displacement21.2 cc
Fuel System IconFuel System
fuelMixed fuel
fuel oil ratio32:1 ratio with ECHO oil or 50:1 ratio with ECHO oil
fuel tank capacity0.4 lit.
Ignition System IconIgnition System
ignition systemFlywheel magneto, capacitor discharge ignition type
spark plugNGK BPM7A, CHAMPION CJ-7Y
starter systemAutomatic rewind system
Weight and Dimensions IconWeight and Dimensions
length1.4 m
width330 mm
height360 mm
weight8.4 lbs

G.T.-2101

Engine Specifications IconEngine Specifications
type of engineAir-cooled, two-stroke, single-cylinder, gasoline engine
bore32.2 mm
stroke26.0 mm
displacement21.2 cc
Fuel System IconFuel System
fuelMixed fuel
fuel oil ratio32:1 ratio with ECHO oil or 50:1 ratio with ECHO oil
fuel tank capacity0.4 lit.
Ignition System IconIgnition System
ignition systemFlywheel magneto, capacitor discharge ignition type
spark plugNGK BPM7A, CHAMPION CJ-7Y
starter systemAutomatic rewind system
Weight and Dimensions IconWeight and Dimensions
length1.4 m
width330 mm
height360 mm
weight8.8 lbs
