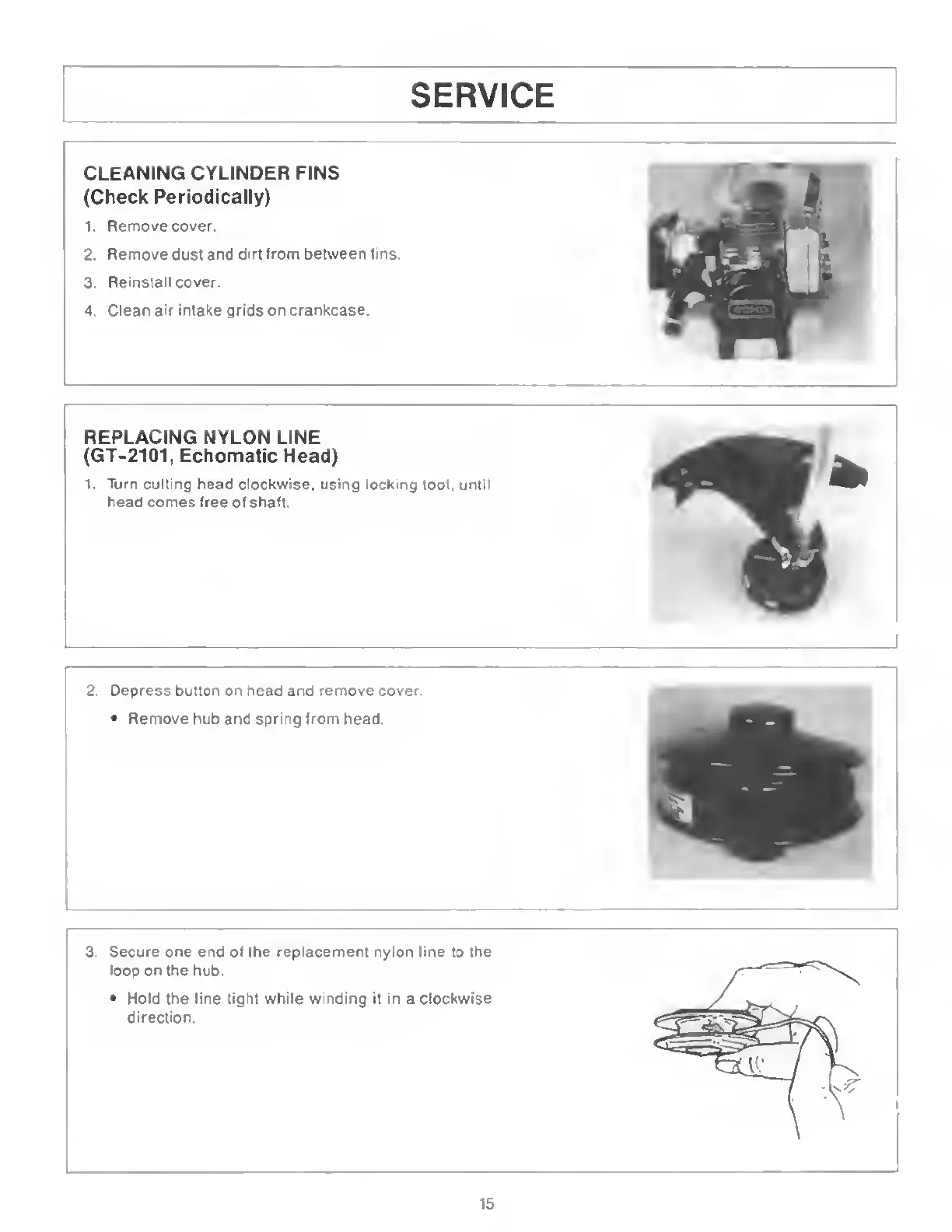

SERVICE
CLEANING
CYLINDER
FINS
(Check
Periodically)
1.
Remove
cover.
2.
Remove
dust
and
dirt
from
between
fins.
3.
Reinstall
cover.
4.
Clean
air
intake
grids
on
crankcase.
REPLACING
NYLON
LINE
(GT-2101,
Echomatic
Head)
1.
T
urn
cutting
head
clockwise,
using
locking
tool,
until
head
comes
free
of
shaft.
2.
D
epress
button
on
head
and
remove
cover.
•
Remove
hub
and
spring
from
head.
3.
S
ecure
one
end
of
the
replacement
nylon
line
to
the
loop
on
the
hub.
•
Hold
the
line
tight
while
winding
it
in
a
clockwise
direction.
15

Table of Contents

Other manuals for Echo GT-1100

Preview: Parts Catalog
Parts Catalog11 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Echo GT-1100 and is the answer not in the manual?

Echo GT-1100 Specifications

G.T.-1100

Engine Specifications IconEngine Specifications
type of engineAir-cooled, two-stroke, single-cylinder, gasoline engine
bore32.2 mm
stroke26.0 mm
displacement21.2 cc
Fuel System IconFuel System
fuelMixed fuel
fuel oil ratio32:1 ratio with ECHO oil or 50:1 ratio with ECHO oil
fuel tank capacity0.4 lit.
Ignition System IconIgnition System
ignition systemFlywheel magneto, capacitor discharge ignition type
spark plugNGK BPM7A, CHAMPION CJ-7Y
starter systemAutomatic rewind system
Weight and Dimensions IconWeight and Dimensions
length1.4 m
width330 mm
height360 mm
weight8.4 lbs
