Echo GT-1100

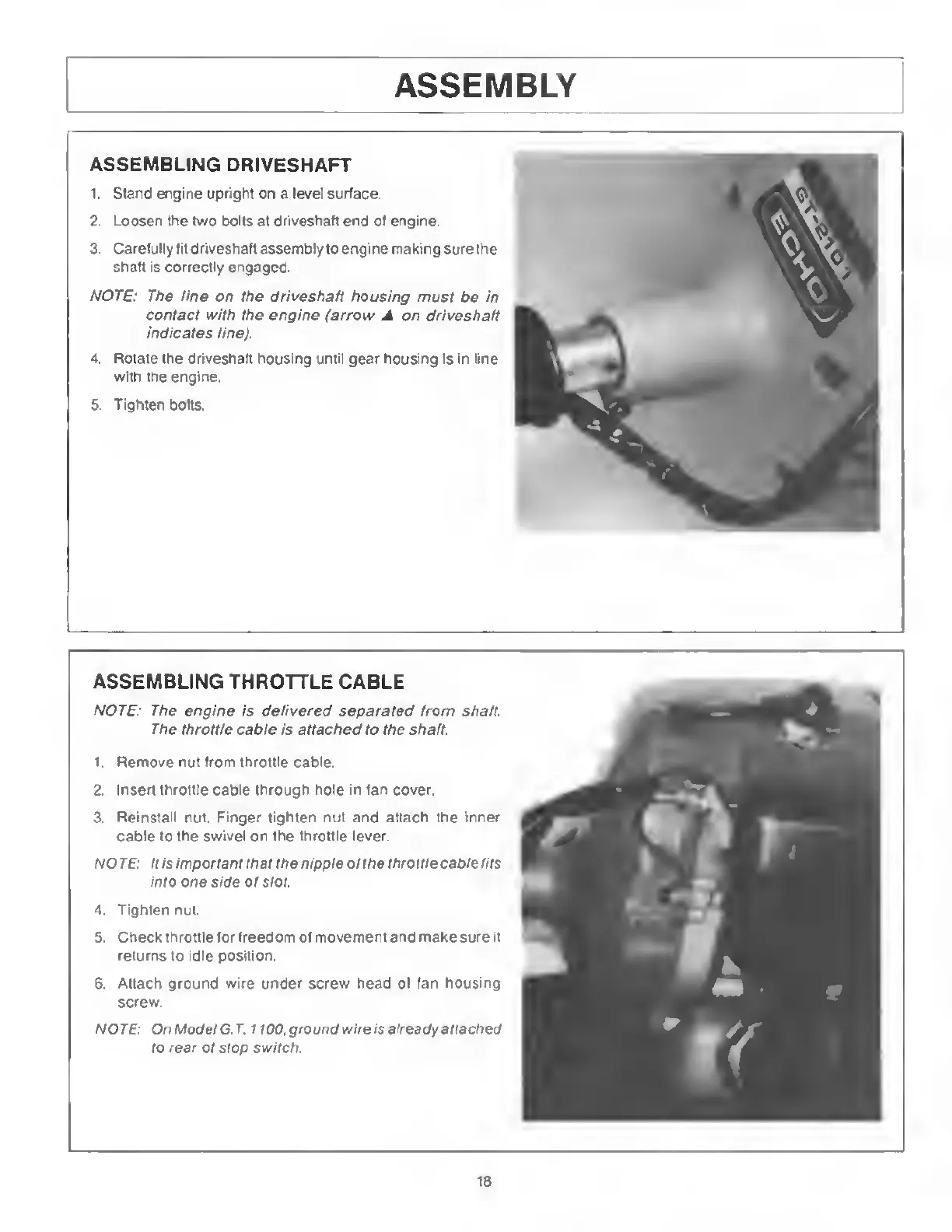

ASSEMBLY
ASSEMBLING DRIVESHAFT
1. Stand engine upright on a level surface.
2. Loosen the two bolts at driveshaft end of engine.
3. Carefully fit driveshaft assembly to engine making sure the
shaft is correctly engaged.
NOTE: The line on the driveshaft housing must be in
contact with the engine (arrow A on driveshaft
indicates line).
4. Rotate the driveshaft housing until gear housing is in line
with the engine.
5. Tighten bolts.
ASSEMBLING THROTTLE CABLE
NOTE: The engine is delivered separated from shaft.
The throttle cable is attached to the shaft.
1. Remove nut from throttle cable.
2. Insert throttle cable through hole in fan cover.
3. Reinstall nut. Finger tighten nut and attach the inner
cable to the swivel on the throttle lever.
NOTE: It is important that the nipple olthe throttle cable fits
into one side ot slot.
4. Tighten nut.
5. Check throttle for freedom of movement and make sure it
returns to idle position.
6. Attach ground wire under screw head of fan housing
screw.
NOTE: On Model G.T. 1100. ground wire is already attached
to rear ot stop switch.
18
