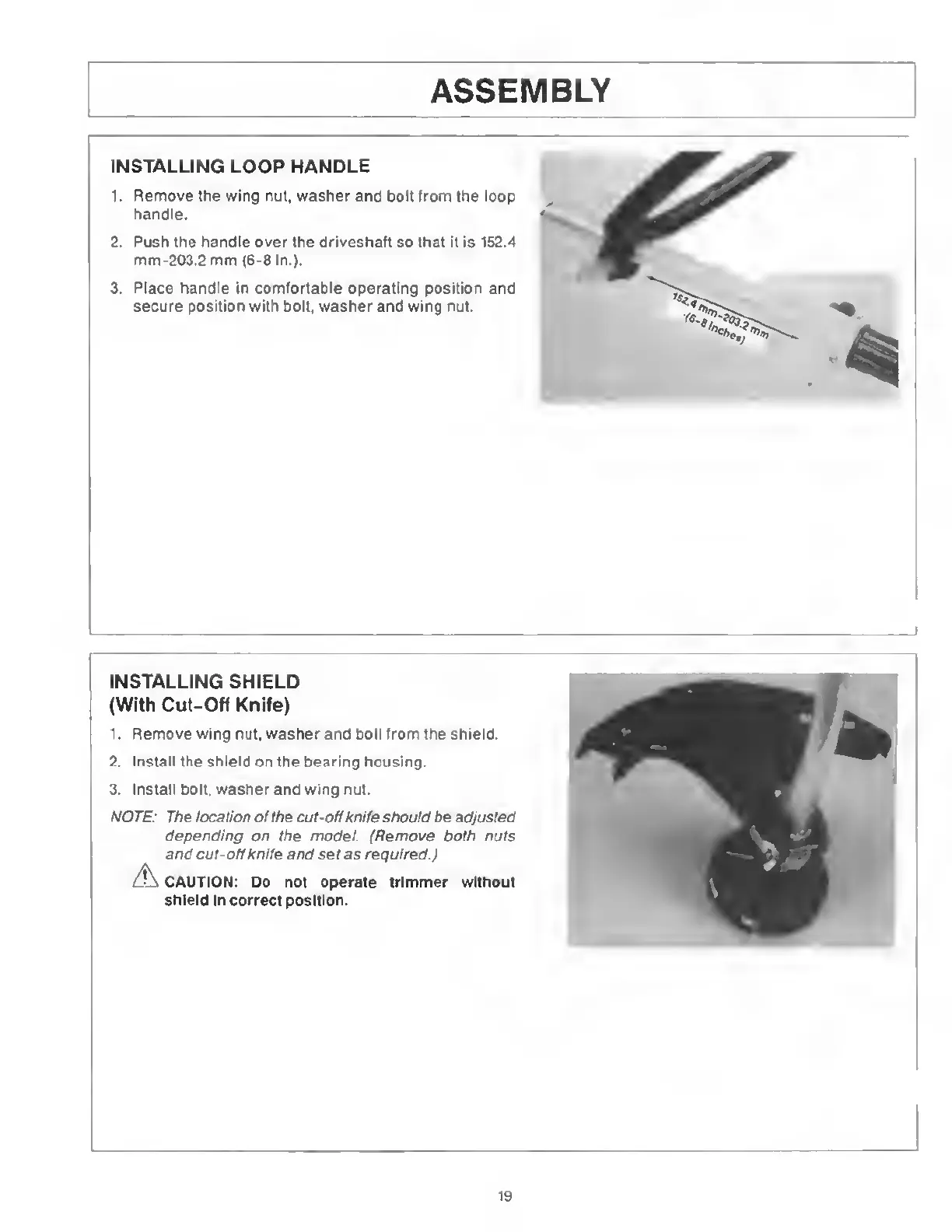

ASSEMBLY
INSTALLING LOOP HANDLE
1. Remove the wing nut, washer and bolt from the loop
handle.
2. Push the handle over the driveshaft so that it is 152.4
mm 203.2 mm (6-8 in.).
3. Place handle in comfortable operating position and
secure position with bolt, washer and wing nut.
INSTALLING SHIELD
(With Cut-Off Knife)
1. Remove wing nut, washer and bolt from the shield.
2. Install the shield on the bearing housing.
3. Install bolt, washer and wing nut.
NO TE: The location of the cut- off knife should be adjusted
depending on the model. (Remove both nuts
and cut-off knife and set as required.)
CAUTION: Do not operate trimmer without
shield in correct position.
