Echo GT-1100

SERVICE

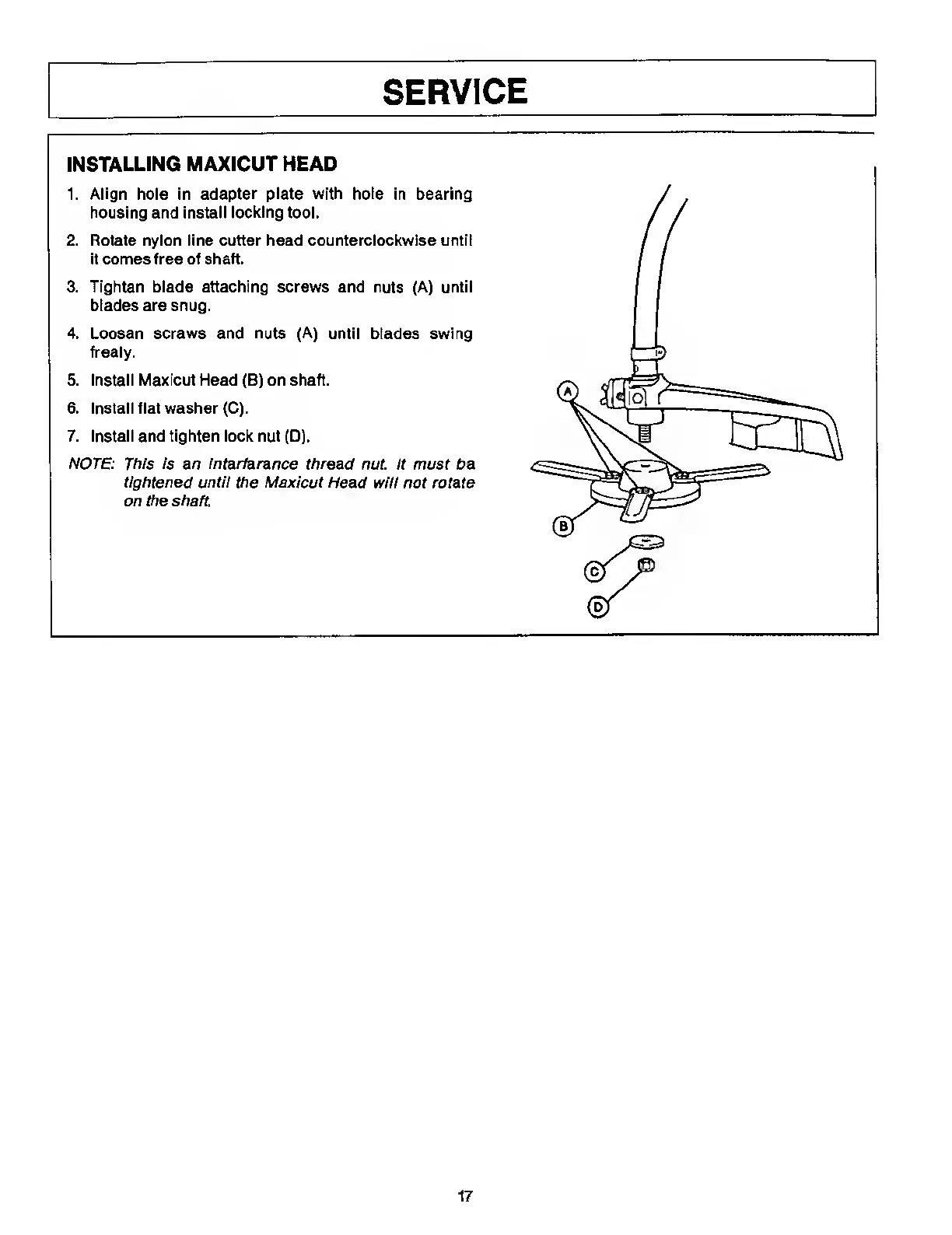

INSTALLING MAXICUT HEAD
1. Align hole in adapter plate with hole in bearing
housing and install locking tool.
2. Rotate nylon line cutter head counterclockwise until
it comes free of shaft.
3. Tighten blade attaching screws and nuts (A) until
blades are snug.
4. Loosen screws and nuts (A) until blades swing
freely.
5. Install Maxicut Head (B) on shaft.
6. Install flat washer (C).
7. Install and tighten lock nut (D).
NOTE: This is an interference thread nut. It must be
tightened until the Maxicut Head will not rotate
on the shaft.
17
