Drive Shaft (Lower)

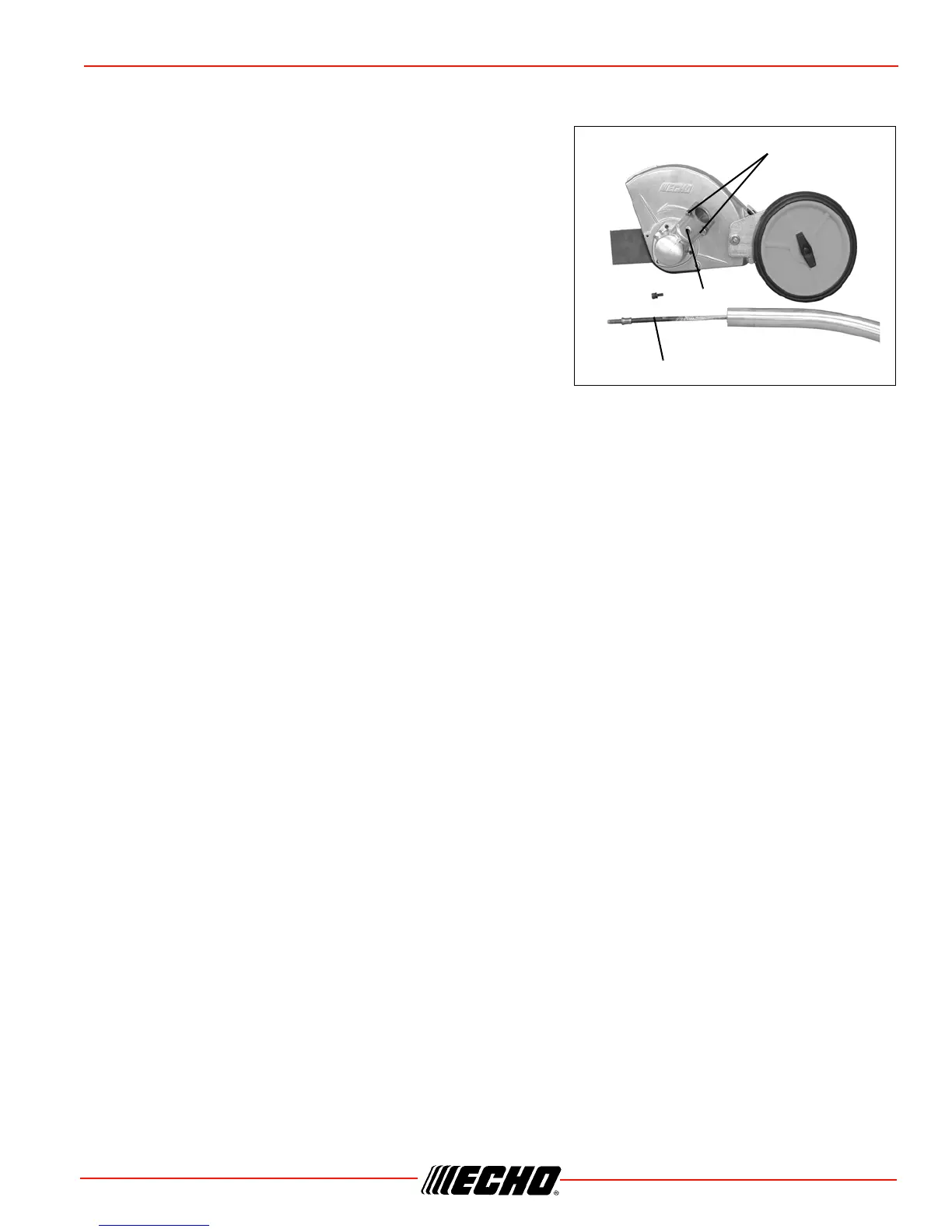

1. Loosen screws (A) and remove center locating screw (B).
Pull gear box and shield from drive shaft housing.
2. Pull flexible cable (C) from the drive shaft housing, wipe
clean and re-coat with a thin coating [15 ml (1/2 oz.)] of
grease.
3. Slide the flexible cable (C) back in the drive housing. DO
NOT get dirt on the flex cable.
4. Install the gear housing and shield assembly.
5. Tighten screws securely.
B
A
C
