PB-500 H/T ASSEMBLY
X7505200007 17
© 02/2014 ECHO Inc.

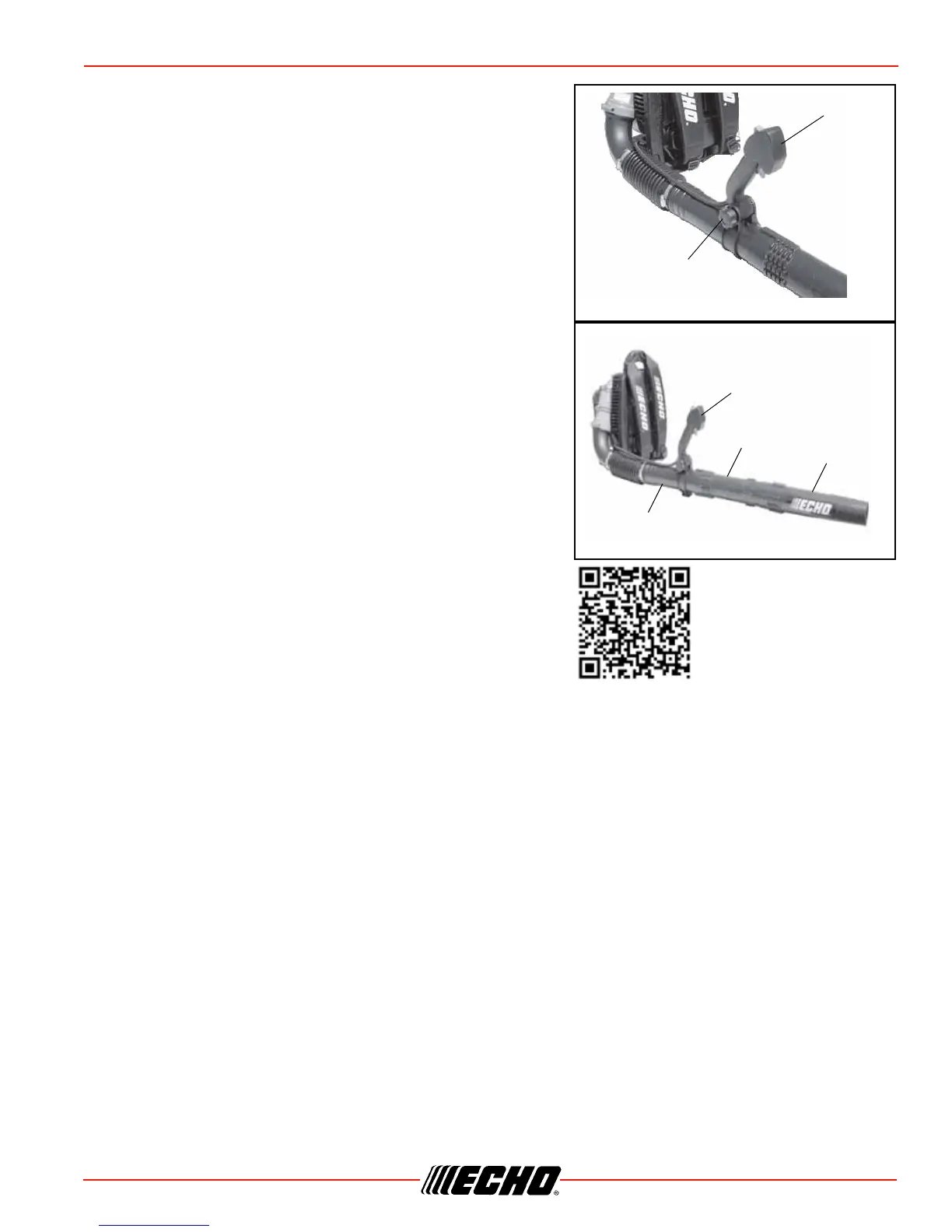

7. Move handle (E) to desired position. Tighten knob (H) hand
tight.
8. Assemble straight pipe (I) onto swivel pipe (C), until you feel
light resistance. Do not force connection. Hold swivel pipe
and turn straight pipe clockwise, engaging positive locking
channels, until connection is firm. Do not force connection.
9. Assemble straight pipe with decal (J) to straight pipe (I) as in
step 8.
Note: Blower use will eventually loosen pipe connections.
Exclusive positive locking system allows pipes to be
tightened. If loosening occurs, remove two straight pipes
and install according to instructions 8 & 9.
H
E
C
E
I
J
For more information
scan this QR code.

Echo PB-500 H Specifications

General

Engine Displacement	50.2 cc
Type	Backpack Blower
Power Source	Gasoline
Engine Type	2-stroke
Noise Level	70 dB(A)
