ASSEMBLY PB-500 H/T
Note: Blower use will eventually loosen pipe connections.
Exclusive positive locking system allows pipes to be
tightened. If loosening occurs, remove two straight pipes
and install according to instructions 7 & 8.
PB-500T
Never perform maintenance or assembly procedures with engine running or serious personal injury
may result.

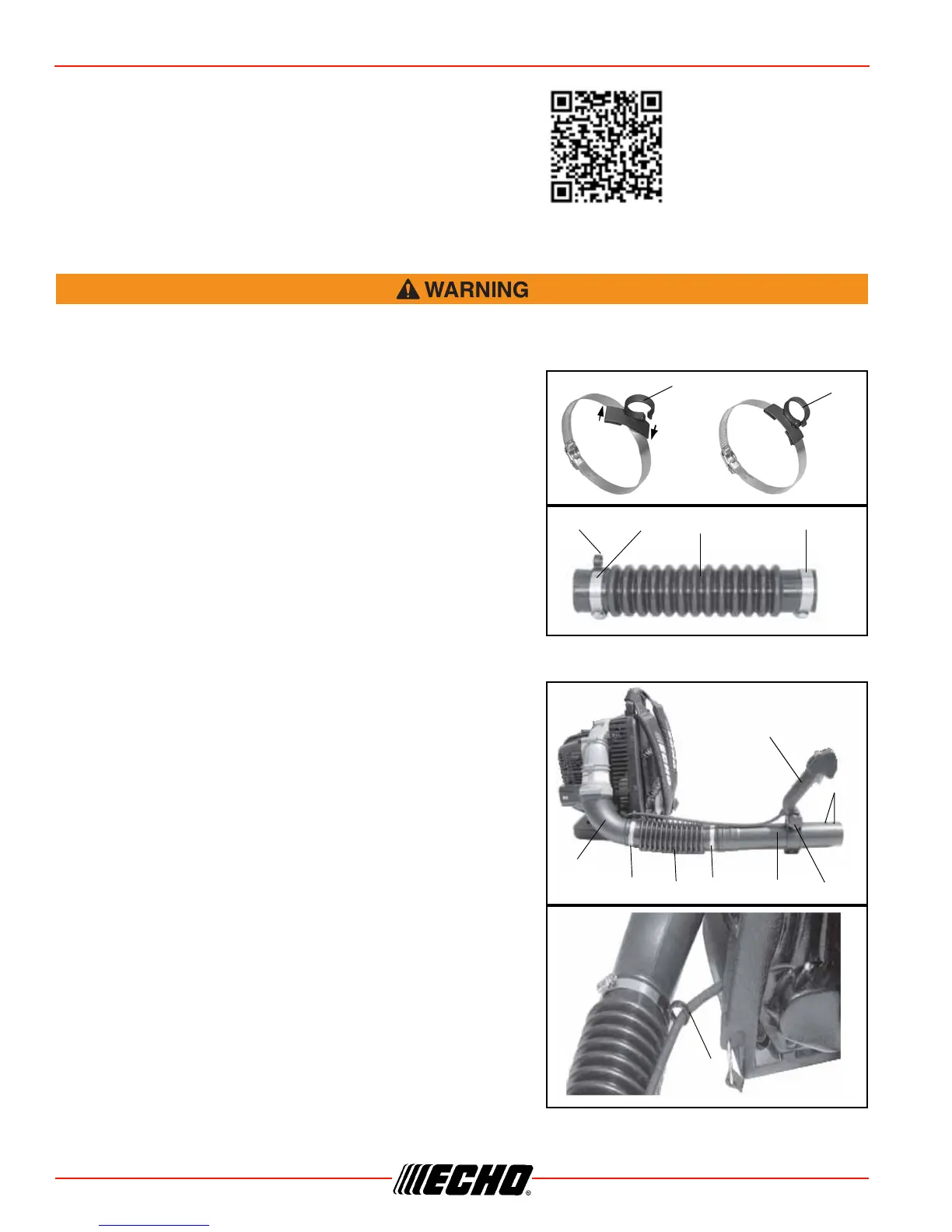

Install Blower Pipes
1. Place guide loop (G) across clamp, and turn until clip fully
engages clamp band.
Note: Clamp with cable guide loop (G) fits elbow end of flexible
pipe (B).
2. Assemble clamps (A) onto both ends of flexible pipe (B).
3. Assemble flexible pipe (B) to elbow (D) on blower. Position
guide loop (G) on inside (blower side) of flexible tube and
tighten clamp (A).
Note: A light lubricant may be used to ease assembly of flexible
pipe to blower elbow.
Note: Hang handle freely from blower to assure throttle cable is not twisted before installing handle (E).
4. Position cable between the elbow (D) and frame and along
the top of the flexible pipe. Loosen knob (H) on handle (E).
Align notch in handle with tabs (F). Install onto swivel pipe
(C) past long ridges in pipe.
5. Assemble swivel pipe (C) into flexible pipe (B) and tighten
clamp (A).
6. Clip throttle cable into throttle cable guide loop (G).
For more information
scan this QR code.
G
G
A
G
B
A
E
H
F
C
D
A
A
B
G

Echo PB-500 H Specifications

General

Engine Displacement	50.2 cc
Type	Backpack Blower
Power Source	Gasoline
Engine Type	2-stroke
Noise Level	70 dB(A)
