ASSEMBLY PB-580 H/T
ASSEMBLY
PB-580 H
Never perform maintenance or assembly procedures with engine running or serious personal injury
may result.

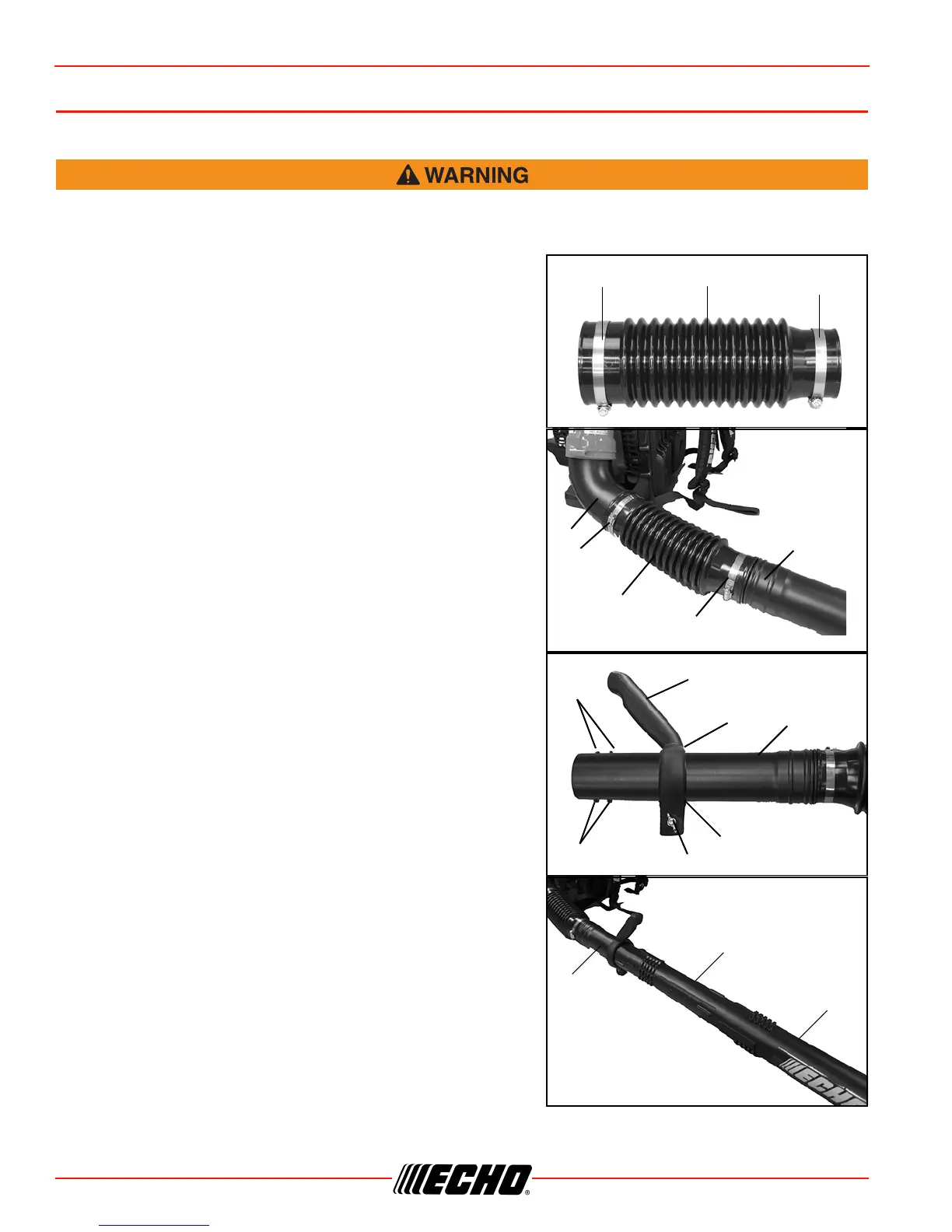

Install Blower Pipes/Stick Handle
1. Assemble clamps (A) onto both ends of flexible pipe (B).
2. Assemble straight pipe with swivel (C) into flexible pipe (B).
3. Assemble flexible pipe (B) to elbow (D) on blower and
tighten clamps (A).
Note: A light lubricant may be used to ease assembly of flexible
pipe to blower elbow.
4. Loosen wing nut (E) completely and expand stick handle
clamp (F). Align notches (G) in handle clamp with tabs (H).
5. Slide stick handle onto swivel pipe (C). Stick handle (F)
should be angled away from operator.
6. Position stick handle (F) for comfortable operation. Tighten
wing nut (E).
7. Assemble straight pipe (J) onto swivel pipe (C), until you feel
light resistance. Do not force connection. Hold swivel pipe
and turn straight pipe clockwise, engaging positive locking
channels, until connection is firm. Do not force connection.
8. Assemble straight pipe with decal (K) to straight pipe (J) as
in step 7.
A
B
A
D
A
B
C
A
C
E
G
F
H
H
G
C
J
K
