Echo PB-580 H/T User Manual

PB-580 H/T ASSEMBLY
X7505200600 17
© 11/2014 ECHO Inc.
Note: Blower use will eventually loosen pipe connections.
Exclusive positive locking system allows pipes to be
tightened. If loosening occurs, remove two straight pipes
and install according to instructions 7 & 8.
PB-580T
Never perform maintenance or assembly procedures with engine running or serious personal injury
may result.

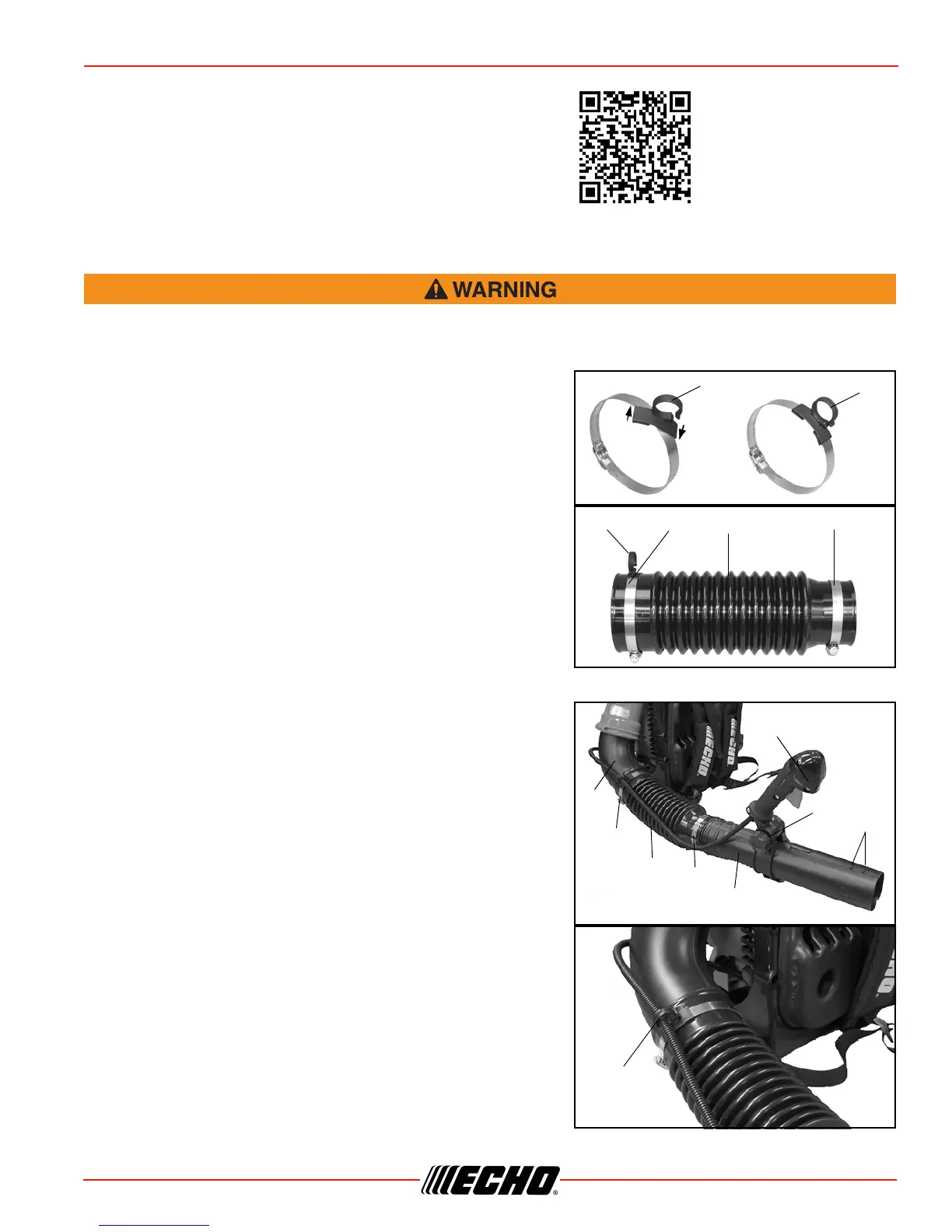

Install Blower Pipes
1. Place guide loop (G) across large clamp, and turn until clip
fully engages clamp band.
Note: Clamp with cable guide loop (G) fits elbow end of flexible
pipe (B).
2. Assemble clamps (A) onto both ends of flexible pipe (B).
3. Assemble flexible pipe (B) to elbow (D) on blower. Position
guide loop (G) on outside of flexible tube and tighten clamp
(A).
Note: A light lubricant may be used to ease assembly of flexible
pipe to blower elbow.
Note: Hang handle freely from blower to assure throttle cable is
not twisted before installing handle (E).
4. Position cable along the outside of elbow (D). Loosen knob
(H) on handle (E). Align notch in handle with tabs (F). Install
onto swivel pipe (C) past long ridges in pipe.
5. Assemble swivel pipe (C) into flexible pipe (B) and tighten
clamp (A).
6. Clip throttle cable into throttle cable guide loop (G).
For more information
scan this QR code.
G
G
A
G
B
A
E
H
F
C
D
A
B
A
G
