PB-580 H/T ASSEMBLY
X7505200708 19
© 01/20 ECHO Incorporated
ASSEMBLY
PB-580 H
Never perform maintenance or assembly procedures with
engine running or serious personal injury may result.

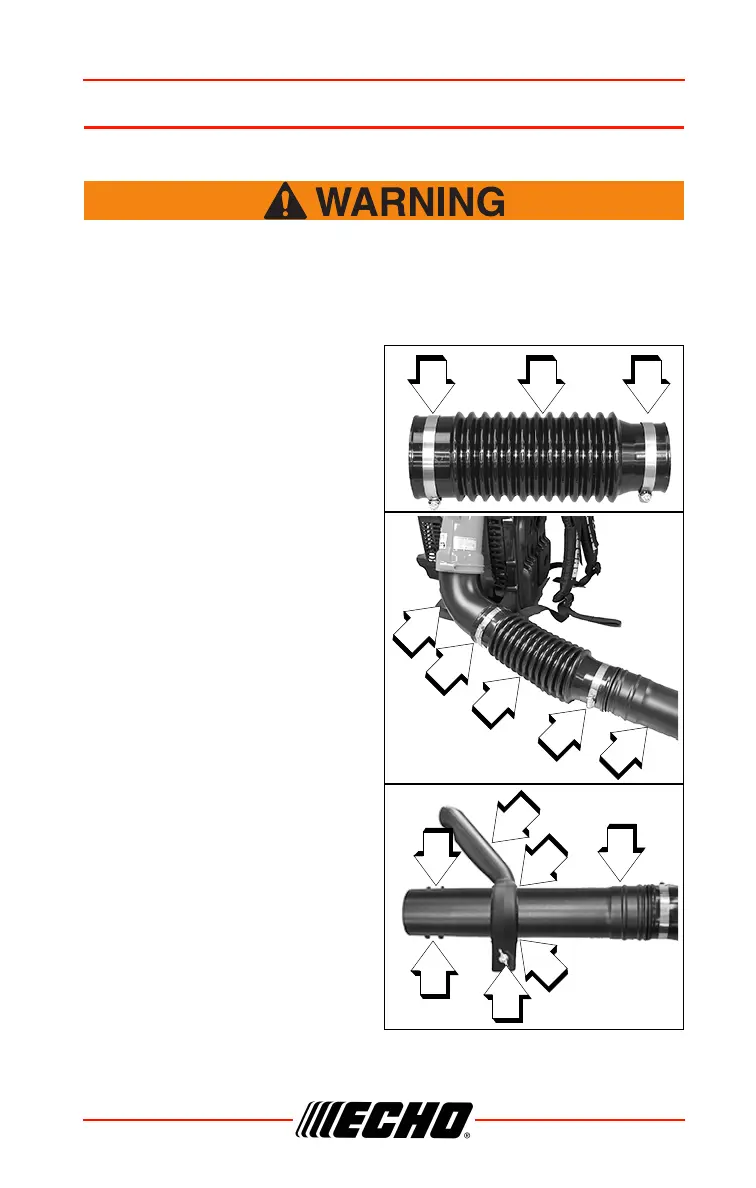

Install Blower Pipes and Stick Handle
1. Assemble clamps (A) onto both
ends of flexible pipe (B).
2. Assemble straight pipe with
swivel (C) into flexible pipe (B).
3. Assemble flexible pipe (B) to
elbow (D) on blower and tighten
clamps (A).
Note: A light lubricant may be
used to ease assembly of
flexible pipe to blower
elbow.
4. Loosen wing nut (E) completely
and expand stick handle clamp
(F). Align notches (G) in handle
clamp with tabs (H).
5. Slide stick handle onto swivel
pipe (C). Stick handle (F)
should be angled away from
operator.
6. Position stick handle (F) for
comfortable operation. Tighten
wing nut (E).
A AB
C
A
B
D
C
A
H
H
F
G
C
E
G

Echo PB-580 H Specifications

General

Engine Displacement	58.2 cc
Air Speed	215 MPH
Type	Backpack Blower
Engine Type	2-Stroke
Fuel Tank Capacity	1.1 L
