Echo PB-580 H User Manual

ASSEMBLY PB-580 H/T
20 X7505200708
© 01/20 ECHO Incorporated

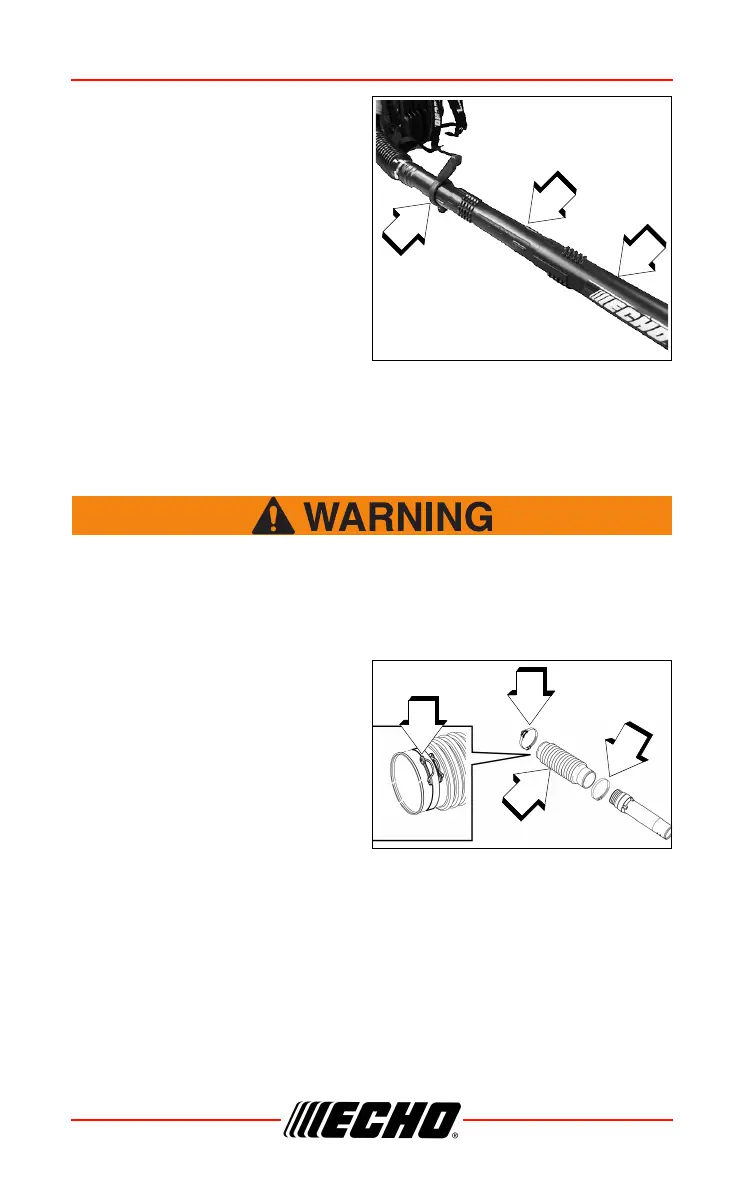

7. Assemble straight pipe (J) onto
swivel pipe (C), until you feel
light resistance. Hold swivel
pipe and turn straight pipe
clockwise, engaging positive
locking channels, until
connection is firm. Do not force
connection.
8. Assemble straight pipe with
decal (K) to straight pipe (J) as
in step 7.
Note: Blower use will eventually
loosen pipe connections.
Exclusive positive locking
system allows pipes to be tightened. If loosening occurs,
remove two straight pipes and install according to instructions
7 & 8.
PB-580T
Never perform maintenance or assembly procedures with
engine running or serious personal injury may result.
Install Blower Pipes
1. Assemble clamps (A) and (G)
onto both ends of flexible pipe
(B).
Note: Clamp with cable guide
loop (G) fits elbow end of
flexible pipe.
J
C
K
G
G
A
B

Echo PB-580 H Specifications

General

Engine Displacement	58.2 cc
Air Speed	215 MPH
Type	Backpack Blower
Engine Type	2-Stroke
Fuel Tank Capacity	1.1 L
