PB-580 H/T ASSEMBLY
X7505200708 21
© 01/20 ECHO Incorporated

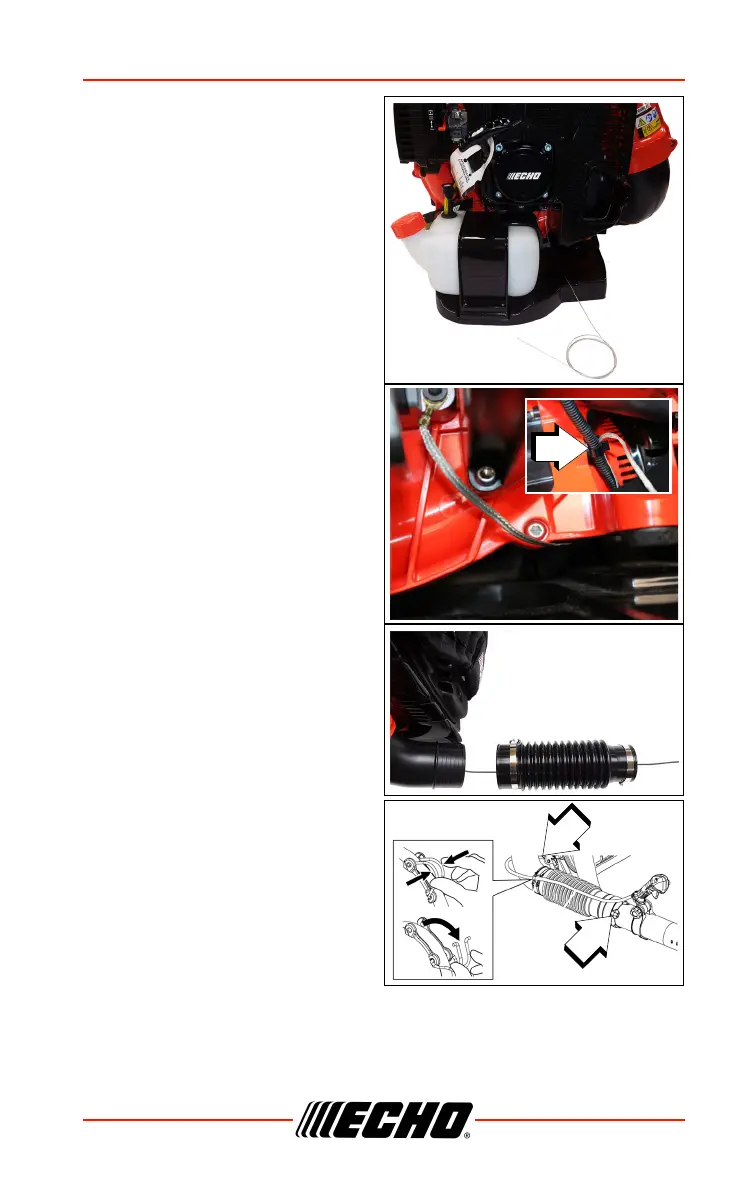

Note: Anti-static wire before
installation.
2. Route anti-static wire below fan
housing and clip wire into
throttle cable retaining clip (X).
Position wire outside blower
elbow.
3. Insert anti-static wire through
flex tube. Leave enough slack
in anti-static wire to allow for full
rotation of elbow.
Note: A light lubricant may be
used to ease assembly of
flexible pipe to blower
elbow.
4. Assemble flexible pipe to elbow
(D) on blower. Position clamp
with cable guide loop (G) on
outside of flexible pipe and
tighten clamp.
Note: Hang handle freely from
blower to assure throttle
cable is not twisted before
installing handle (E).
X
G
D

Echo PB-580 H Specifications

General

Engine Displacement	58.2 cc
Air Speed	215 MPH
Type	Backpack Blower
Engine Type	2-Stroke
Fuel Tank Capacity	1.1 L
