22

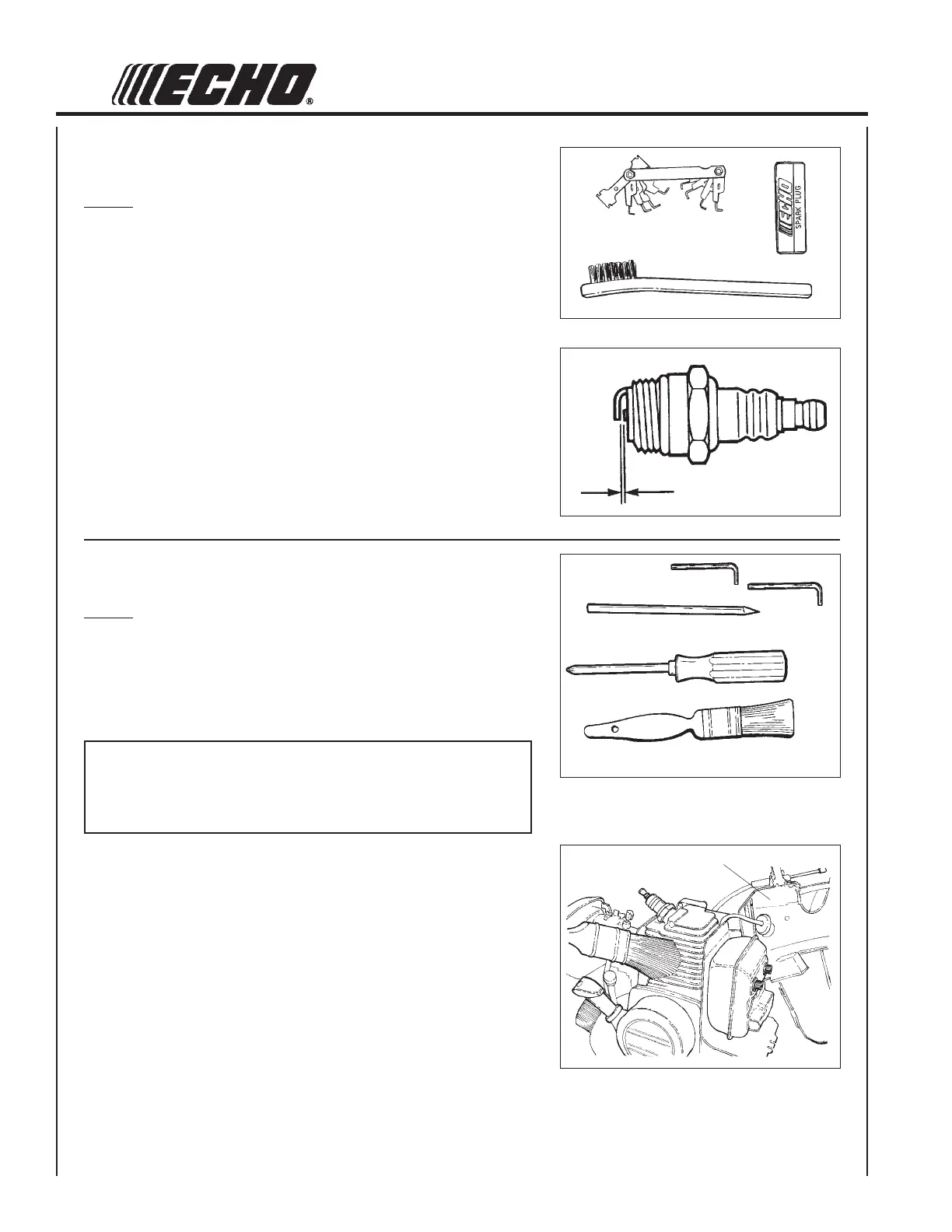

SPARK PLUG
Level 2.
Parts Required: Spark Plug, NGK BPMR-7A
1. Remove spark plug and check for fouling, worn and rounded center
electrode.
2. Clean the plug or replace with a new one. DO NOT sand blast to
clean. Remaining sand will damage engine.
3. Adjust spark plug gap by bending outer electrode.
4. Tighten spark plug to 145-155 kg/cm (125-135 in. lb.).
0.65 mm
(0.026 in.)
COOLING SYSTEMS CLEANING
Level 3.
Parts Required: None.
IMPORTANT
To maintain proper engine operating temperatures, cooling air
must pass freely through the cylinder fin area. This flow of air
carries combustion heat away from the engine.
Overheating and engine seizure can occur when:
• Air intakes are blocked, preventing cooling air from reaching
the cylinder.
• Dust and grass build up on the outside of the cylinder. This
build up insulates the engine and prevents the heat from leaving.
Removal of cooling passage blockages or cleaning of cooling fins is
considered “Normal Maintenance”. Any failure attributed to lack of
maintenance is not warranted.
1. Remove spark plug lead and throttle linkage end from the carbure-
tor swivel.
2. Remove the four screws that retain the cover. Two at the top of the
recoil starter, two on either side of the front. Lift the engine cover
(A) from the engine and lay to the front of the edger.
A
To Next Page
