POWER EDGER
OPERATOR'S MANUAL
23
NOTE
The throttle linkage remains assembled to the cover and the spark
plug lead and grommet remain installed.
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder fins.
3. Use the wooden stick or brush to remove dirt from the cylinder fins.
4. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
5. When installing the cover, be certain the tab of the metal deflector
shield is in the slot of the cover.

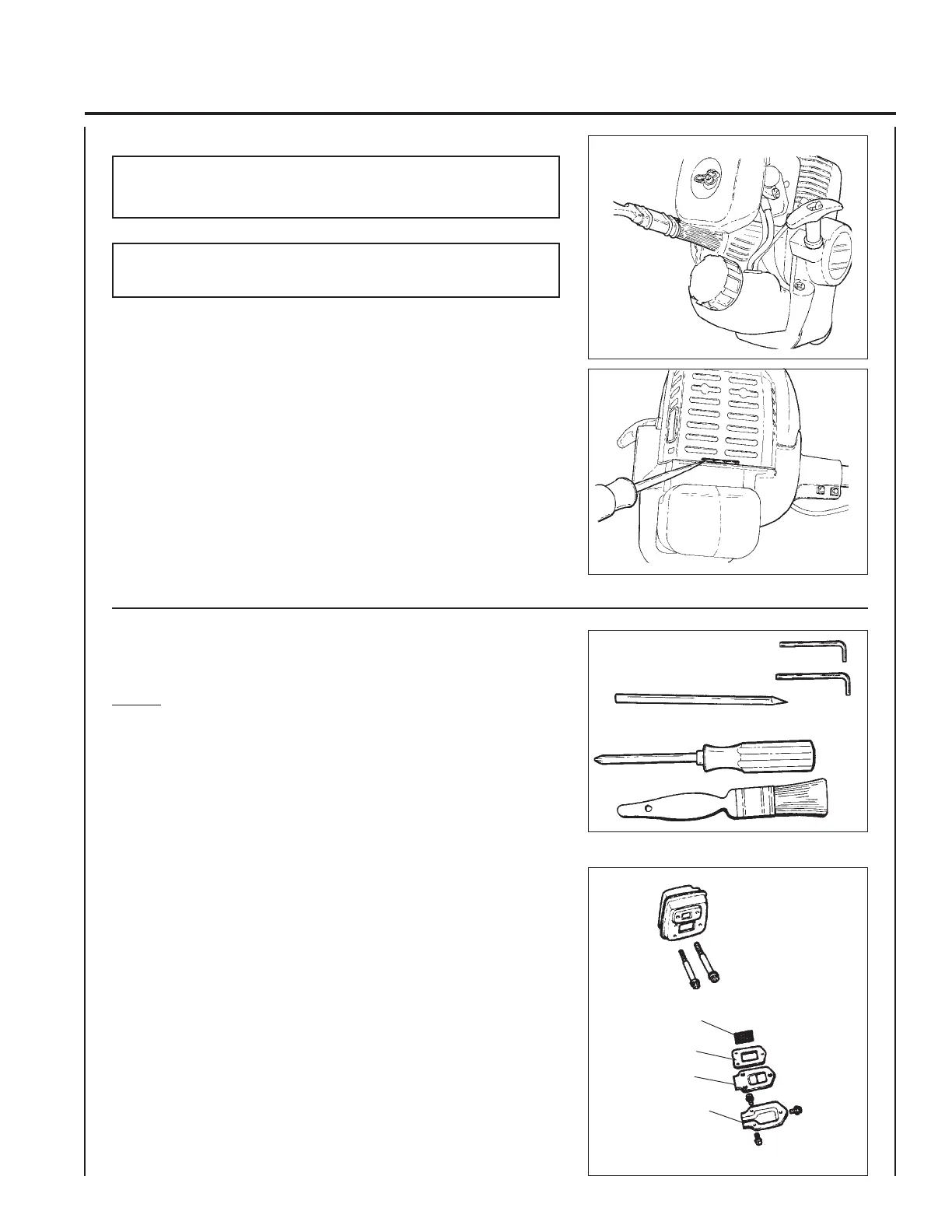

MUFFLER SCREEN
Level 3.
Parts Required: (PE-2000/2400) (1) 14586652031 Spark Arrestor
Screen.
(PE-3100) (1) 14590555730 Spark Arrestor Screen.
1. Remove engine cover (A). See "Cooling Systems Cleaning" for step
by step instructions.
2. Remove muffler cover (B), screen holder (C) PE-2000/2400 only,
gasket (D) and screen (E) from muffler body.
PE-2000
PE-2400
B
C
D
E
