Power Pruner
TM
oPeraTor's Manual
13
handle shaft / power head

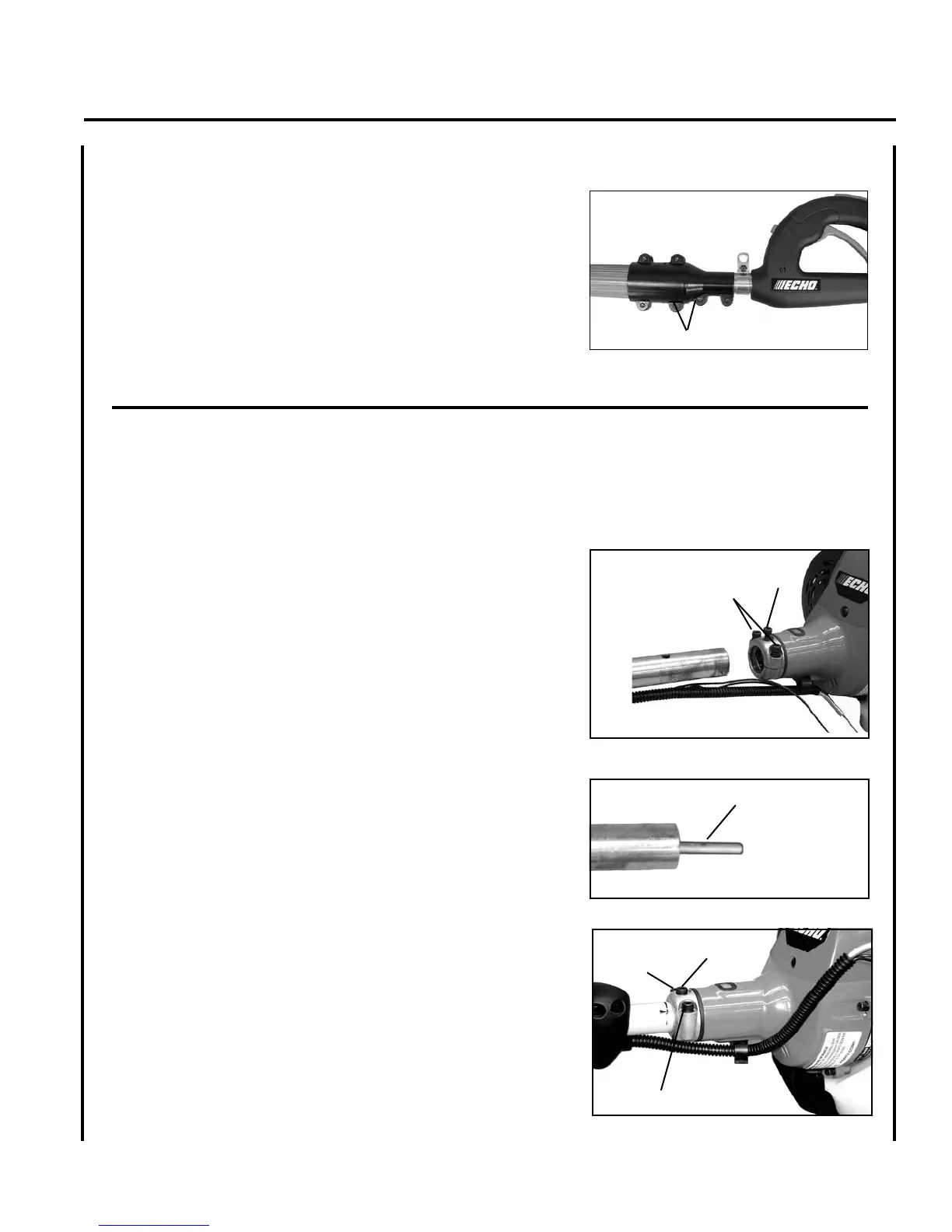

1. Loosen two (2) clamping screws (A) and remove locating screw
(B).
2. Pull exible drive shaft coupler (C) 2-3 in. out of handle shaft as-
sembly.
3. Align exible drive shaft coupler with engine socket and slide
together until locating hole in shaft is visible through locating hole
in engine housing.
4. Install locating screw (B) and tighten clamping bolts (A).
4. Align exible drive shaft coupler with drive shaft socket and slide
together until handle shaft is fully seated into drive shaft.
5. Tighten clamping bolts (A).
A
B
A
A
C
A
B
