Power Pruner
TM
oPeraTor's Manual
15
d
c
c
I
E
F
d
WARNING
Saw Chain is sharp! Always wear gloves when handling assembly,
otherwise serious personal injury may result.

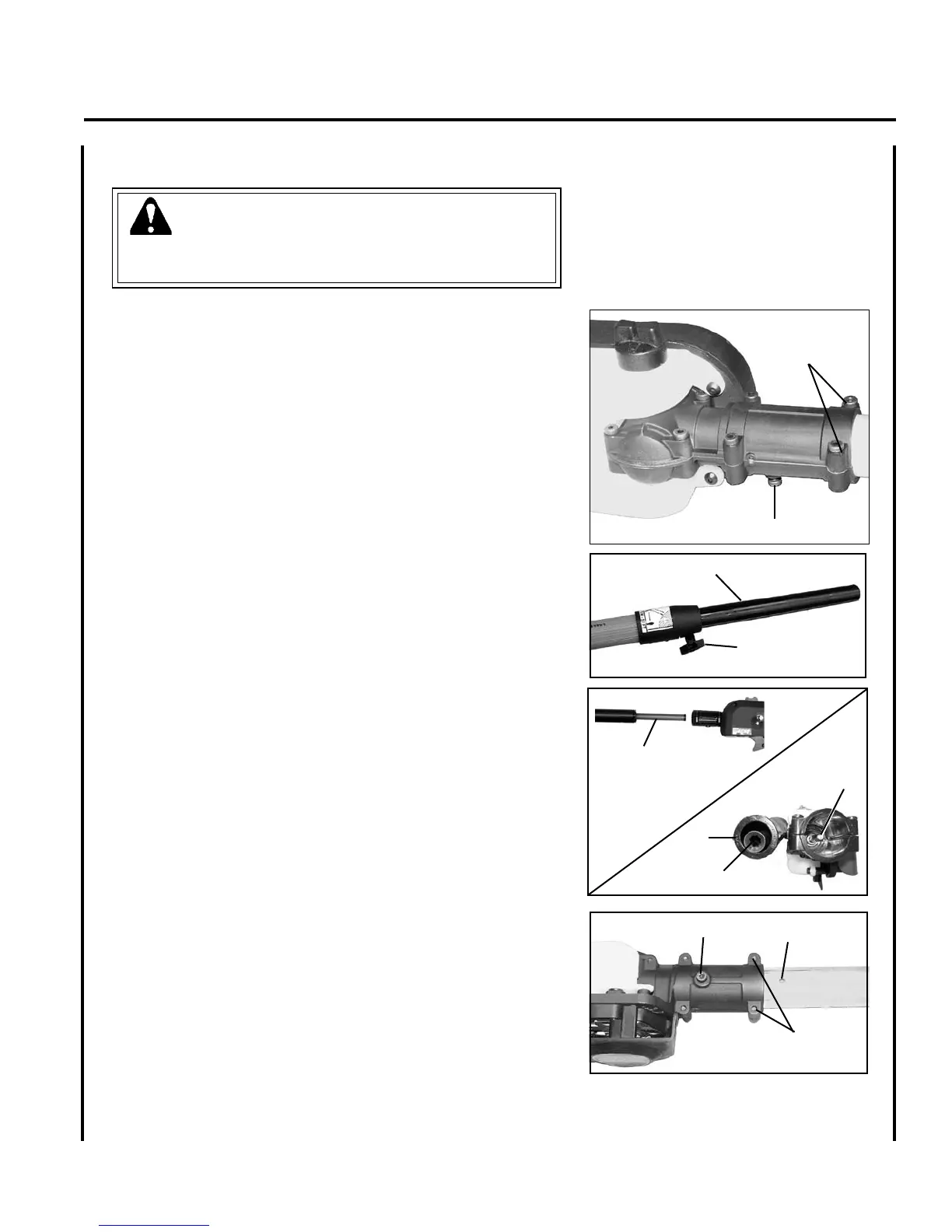

1. Loosen the two (2) screws (C) and locator screw (D) on cutting
attachment.
2. Loosen clamp knob (E) turning counter clockwise.
3. Pull upper tube (F) out of berglass lower tube 127-152 mm (5-6
in.), then slide (F) back into berglass lower tube exposing inner
drive shaft (G). Align and join star shaped drive end of inner drive
shaft (G) with cutting attachment shaft (H).
4. Align ridges (J) on upper tube with seams in cutting attachment.
5. Slide together aligning locator screw (D) in cutting attachment with
locating hole (I) in upper tube.
6. Tighten locator screw (D). Tighten two (2) cutting attachment
screws (C).
7. Extend upper tube to desired length. Tighten clamp knob (E) turn-
ing clockwise.
cuttIng attachment to drIve shaft InstallatIon
G
H
G
J
