Echo PPT-266 - Throttle Linkage and Ignition Leads

14
E
F

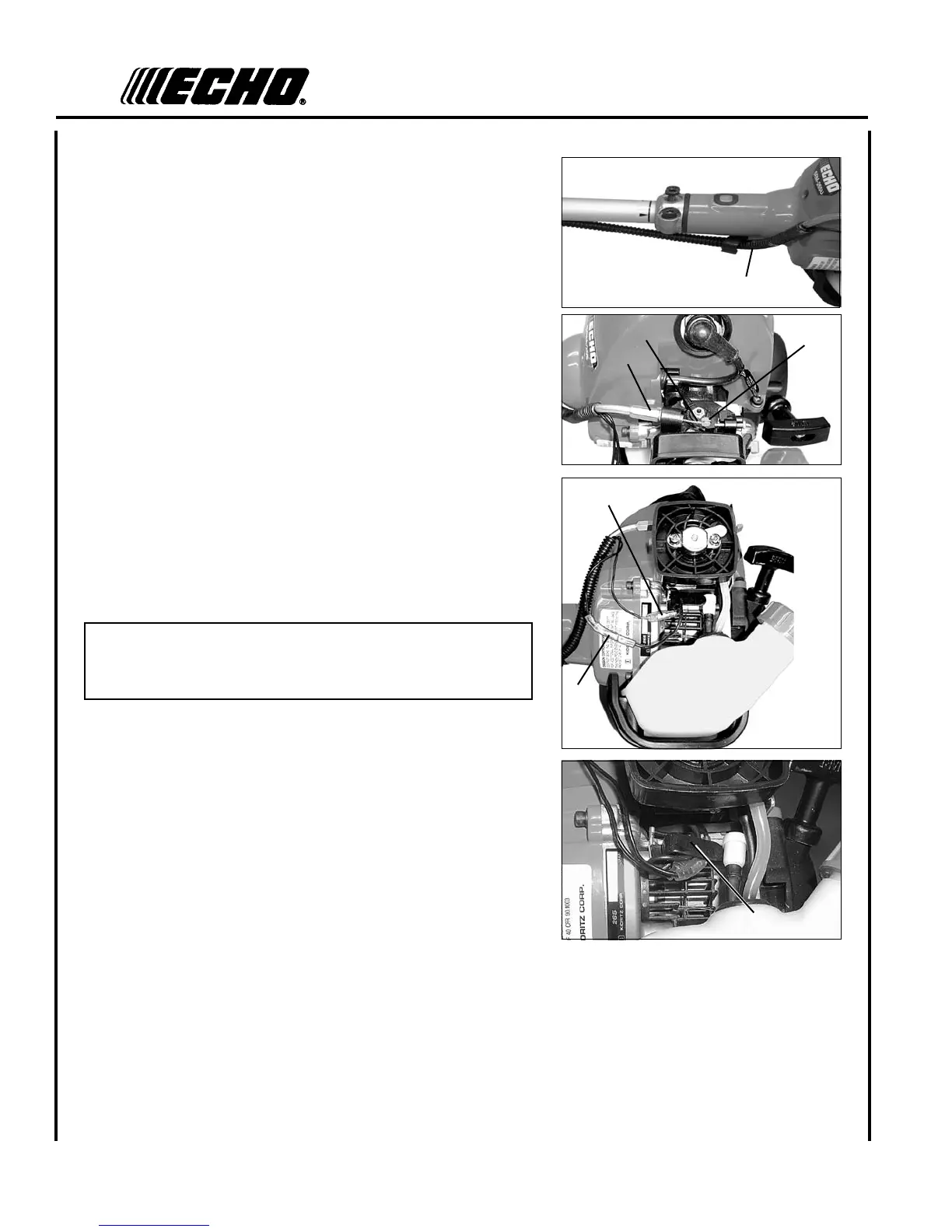

throttle lInkage and IgnItIon leads
1. Install throttle linkage cable into fan cover clip (A).
2. Close choke and remove air lter cover.
3. Place throttle linkage (B) through adjustment xture (C) and install
wire end into large carburetor throttle swivel hole (D). Check
throttle for freedom of movement and that wide open throttle / low
idle extremes are adjusted properly. The throttle linkage must be
adjusted by moving the adjustment xture (C). Consult with your
Echo Dealer for correct adjustment procedure.
4. Connect 2 ignition stop leads (E, F) from throttle cable tubing to 2
ignition leads (E, F) on engine.
CAUTION:
Assure ignition terminals are completely covered by clear plastic
sleeves.
5. Secure ignition leads against engine housing with clip (G).
6. Install air lter and cover.
G
B
C
D
A
