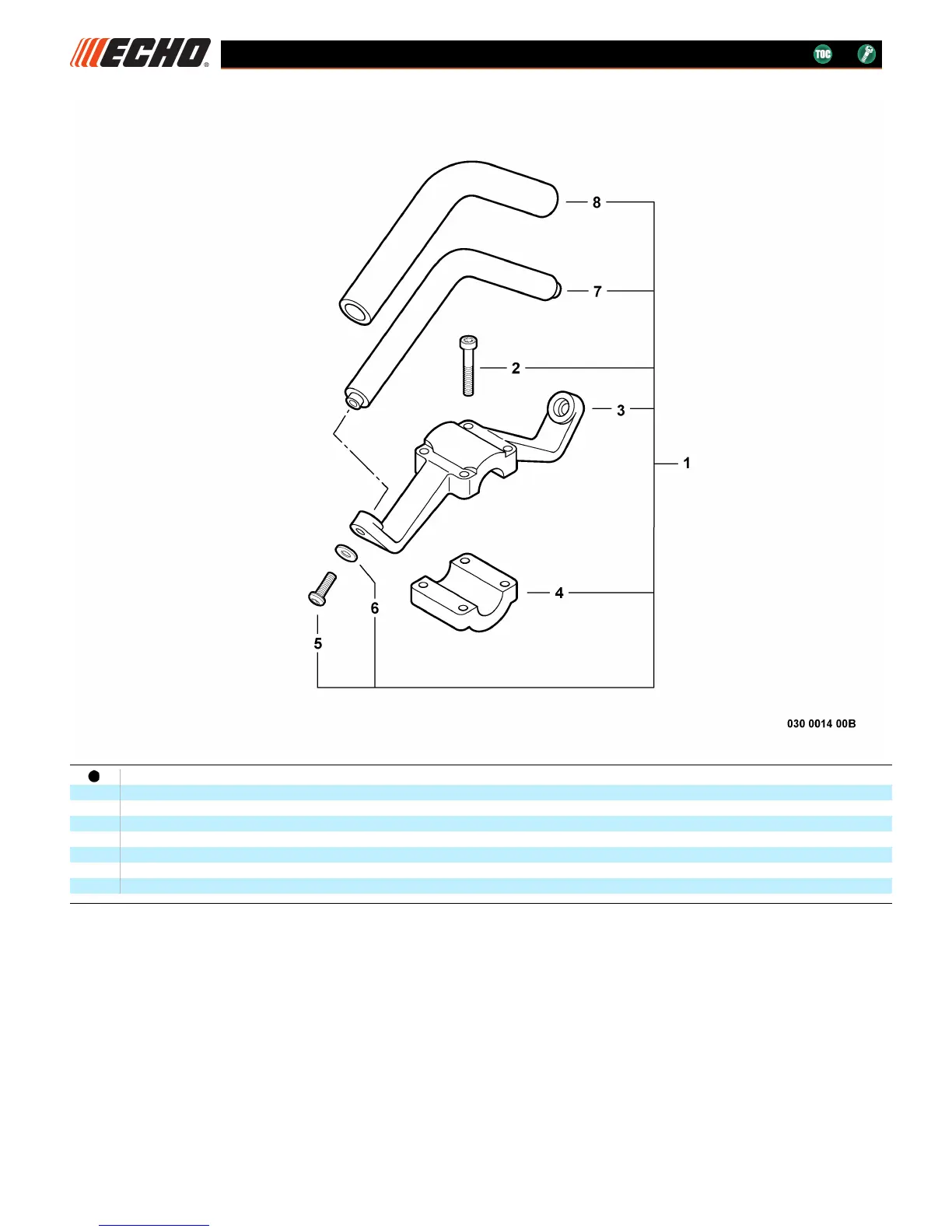

CONJUNTO DE MANGO DELANTEROFRONT HANDLE ASY1P0210156301
TORNILLO - 5X30SCREW - 5X304+ V8050000502
SOPORTE, MANGO - SUPERIORBRACKET, HANDLE - UPPER1+ 351232662303
SOPORTE, MANGO - INFERIORBRACKET, HANDLE - LOWER1+ C4230003004
TORNILLO - 5X20SCREW - 5X202+ V8050000105
ARANDELA - 5WASHER2+ 900600000056
MANGO - DELANTEROHANDLE - FRONT1+ 351205662307
AGARRE, MANGOGRIP, HANDLE1+ 351216662308
- 16 -
SRM-225 TRIMMER
Recortadora Front Handle
Mango delantero
