SRM-225 DESCRIPTION
1. POWER HEAD - Includes the Engine, Clutch, Fuel System, Ignition
System and Recoil Starter.
2. THROTTLE HANDLE - FOR RIGHT HAND - Contains Stop Switch,
Throttle Lockout, and Throttle Trigger.
3. THROTTLE TRIGGER LOCKOUT - This lever must be held during
starting. Operation of the throttle trigger is prevented unless throttle trigger
lockout lever is engaged.
4. STOP SWITCH - “SLIDE SWITCH” mounted on top of the Throttle Handle.
Move switch FORWARD to RUN, BACK to STOP.
5. SUPPORT HANDLE - FOR LEFT HAND - The support handle is factory
assembled to the Drive Shaft assembly but must be re-positioned for
proper cutting attitude and operator comfort.

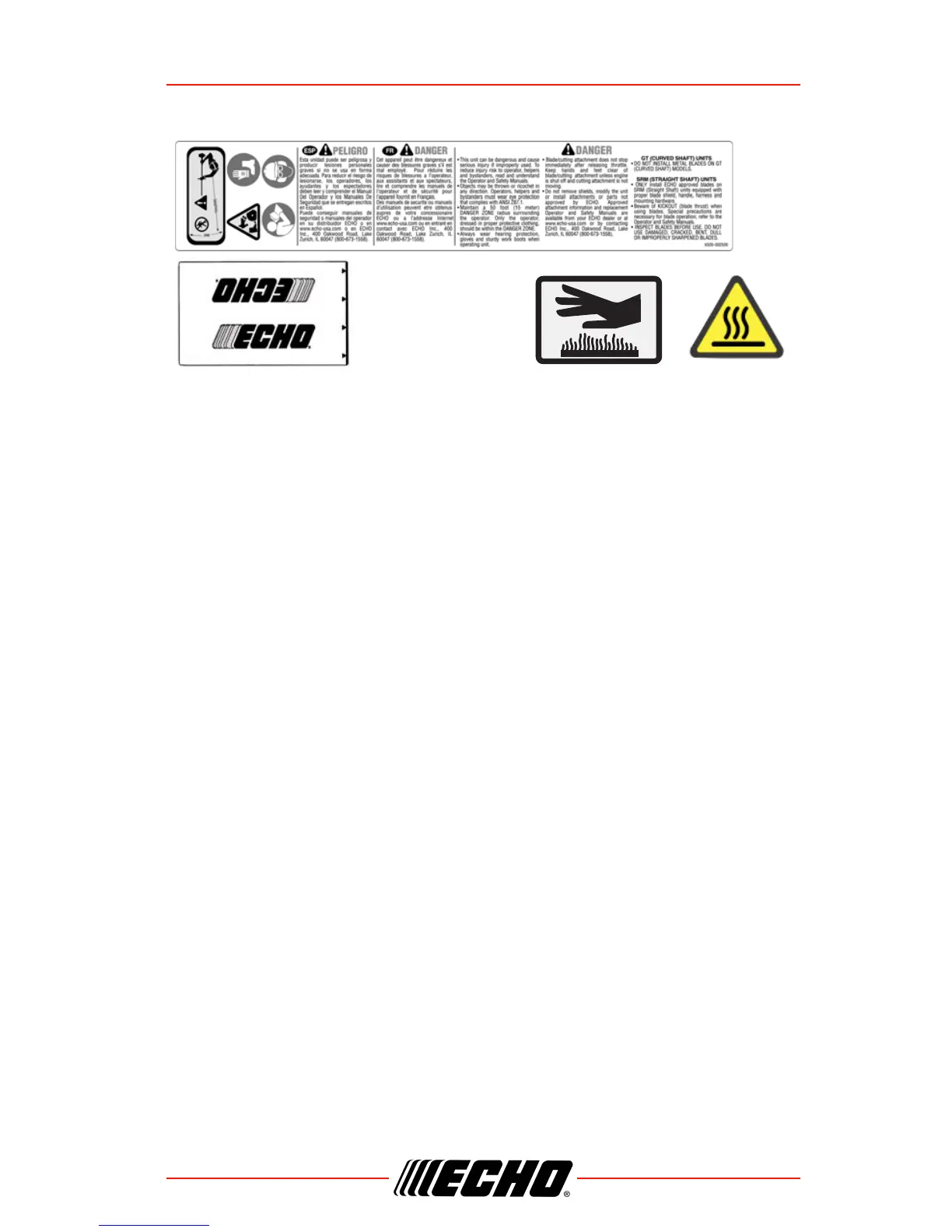

6. DRIVE SHAFT ASSEMBLY - Includes the Throttle Handle, Gear Housing
assembly, Support Handle, Drive Shaft and Safety Decal.
7. NYLON CUTTER HEAD - Contains replaceable nylon trimming line that
advances when the trimmer head is tapped against the ground while the
head is turning at normal operating speed.
8. CUT-OFF KNIFE - Automatically trims line to the correct length: 13 cm (5
inches) after head is tapped on the ground. If trimmer is operated without a
cut-off knife, the line will become too long, the engine will overheat, and
engine damage may occur.
9. DEBRIS SHIELD with CUT-OFF KNIFE - Required when unit is equipped
with nylon line head. Do not operate unit without shield.
10. THROTTLE TRIGGER - Spring loaded to return to idle when released.
During acceleration, press trigger gradually for best operating technique
11. SPARK PLUG - Provides spark to ignite fuel mixture.
12. ARM REST - Provides arm rest during operation and protects arm from the
hot engine.
13. RECOIL STARTER HANDLE - Pull handle slowly until starter engages,
then quickly and firmly. When engine starts, return handle slowly. DO NOT
let handle snap back or damage to unit will occur.
