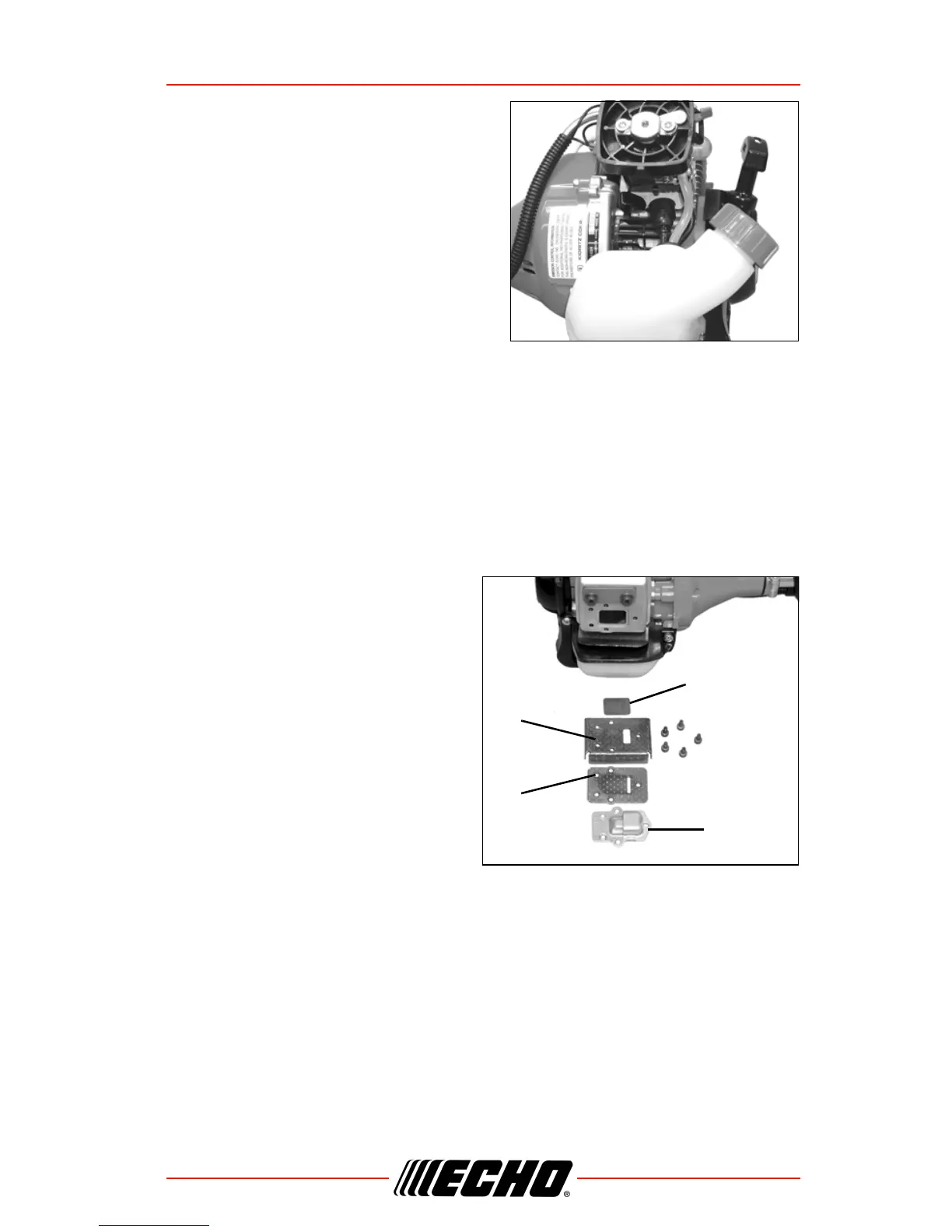

SRM-225 MAINTENANCE
6. Remove grass and leaves from the
grid between the recoil starter and
fuel tank.
7. Assemble components in reverse
order.
Exhaust System
Spark Arrestor Screen
Level 2.
1. Remove engine cover (B).
2. Place piston at Top Dead Center (TDC) to prevent carbon/dirt from entering
cylinder.
3. Remove spark arrestor screen
cover (C), gaskets (D), (E), and
screen (F), from muffler body.
4. Clean carbon deposits from
muffler components.
Note: When cleaning carbon
deposit, be careful not to
damage the catalytic
element inside muffler.
5. Replace screen if it is cracked,
plugged, or has holes burned
through.
6. Assemble components in reverse
order.
Exhaust Port Cleaning
Level 2.
Parts Required: Spark Arrestor Screen, Gasket
Parts Required: As needed: Heat Shield
F
C
E
D

Echo SRM-225 Specifications

General

Engine Displacement	21.2 cc
Cutting Swath	17 inches
Engine Type	2-stroke
Carburetor	Diaphragm
Shaft Type	Straight
Fuel Capacity	14.9 fl. oz
Fuel Tank Capacity	14.9 fl. oz
Warranty	5 year consumer / 2 year commercial
