ASSEMBLY SRM-225
18 X7722279402
© 2/2016 ECHO Inc.
ASSEMBLY
Shield Installation
(Nylon line operation)
Shield with cutoff knife is for use
with the Nylon Line Head only.
Install shield without cutoff knife
when using plastic or metal
blades, or serious injury may
result.

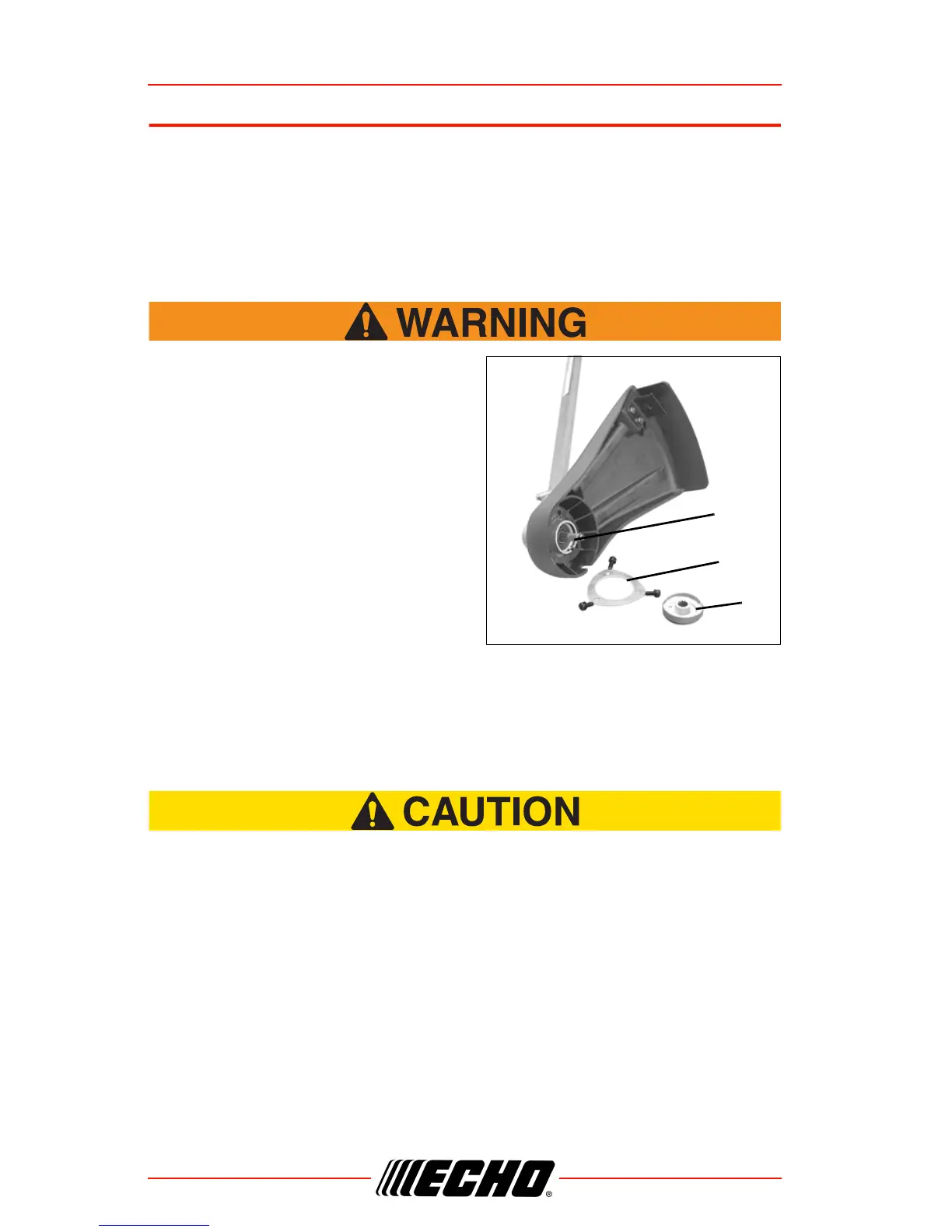

1. Place the shield on the bottom of
the bearing housing flange.
2. Place shield plate (B) on shield,
align holes. Install three (3) screws
from bottom through plate and
shield into gear case.
3. Assemble adapter plate (C) onto
PTO shaft.
Nylon Line Head Installation
Wear Gloves or personal injury may result:
◆ Cutoff knife is sharp.
◆ Gearcase and surrounding area may be hot.
Parts Required: Debris Shield, Shield Plate,
three (3) 5 x 16 mm screws.
Parts Required: Nylon Line Head.
