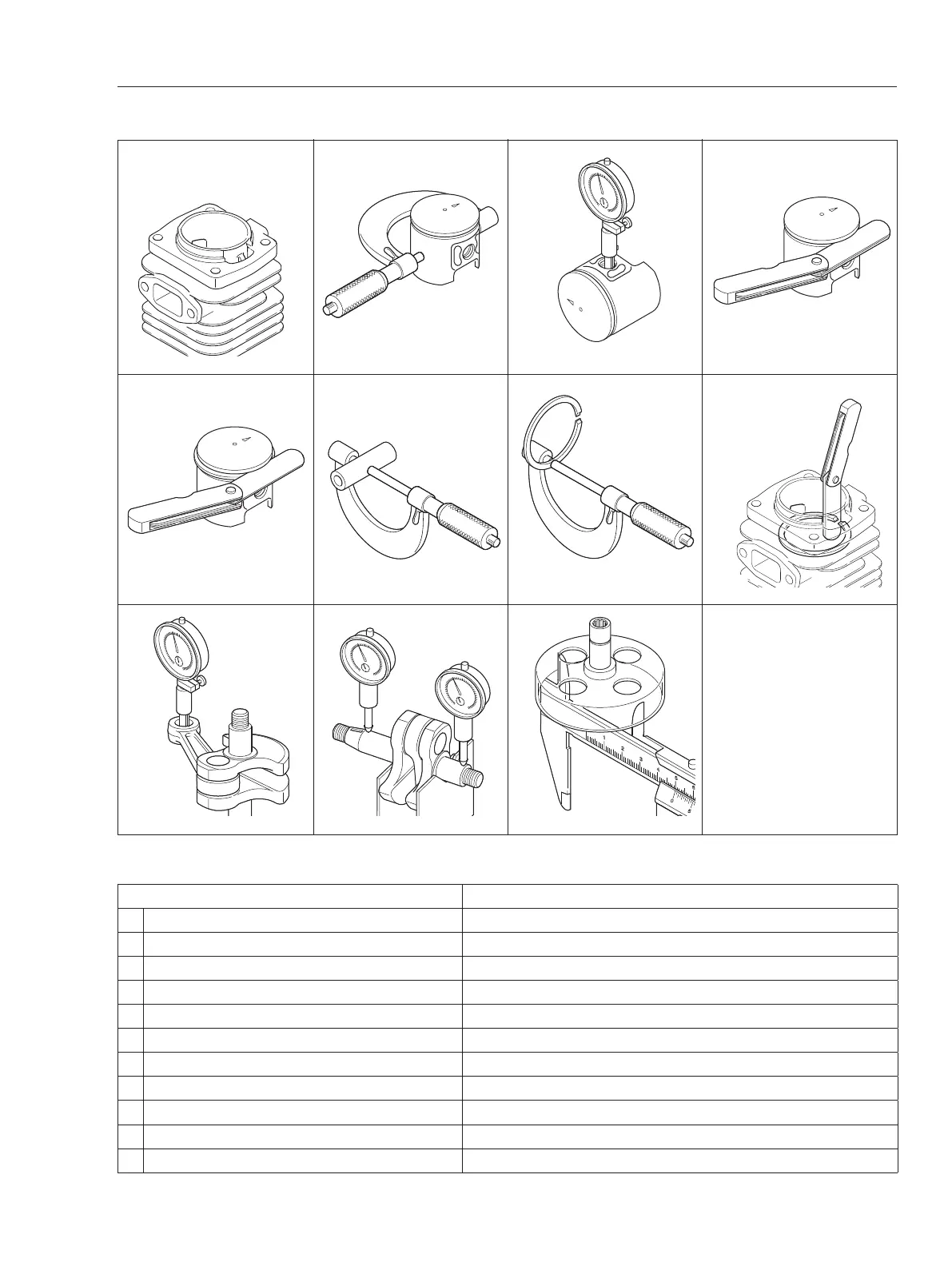

1-5 Service limits
ABCD
EFGH
KLM
Description
mm (in)
A Cylinder bore When plating is worn and aluminum can be seen
B
Piston outer diameter Min. 43. 95 (1.730)
C
Piston pin bore Max. 10. 035 (0.3951)
D
Piston ring groove Max. 1. 65 (0.065)
E
Piston ring side clearance Max. 0. 1 (0.004)
F
Piston pin outer diameter Min. 13. 97 (0.5500)
G
Piston ring width Min. 1. 45 (0.057)
H
Piston ring end gap Max. 0. 5 (0.02)
K
Con-rod small end bore Max. 14. 025 (0.5522)
L
Crankshaft runout Max. 0. 02 (0.001)
M
Clutch drum bore Max. 79. 5 (3.13)
