SERVICE INFORMATION SRM-510ES
6
a
1.5
1.65
1.3
0.4
a
0
0.4
50
0.8
1.2
1.
MPa
0
ECHO
PET-304
OPPAMA
PET-9000
INTEGRATED IGNITION ANALYZER
a
b
Key Part Number Description Used for:
1 G310-000050
Tachometer PET-304
Measuring engine speed to adjust carburettor
2 895610-79920 L-hex wrench (4 mm) Removing and installing hex. socket bolt (M5)
3 895611-79920 L-hex wrench (5 mm) Removing and installing hex. socket bolt (M6)
4 897501-03938 Puller Removing fl ywheel
5 897835-16131 Pressure connector Testing crankcase and cylinder leakages
6 897537-30130 Piston stopper Locking crankshaft rotation
7 897563-19830 Metering lever gauge Measuring metering lever height on carburettor
8 897603-23030 PTO shaft puller Removing PTO shaft
9 897701-02830 Bearing wedge Removing ball bearing remaining on crankshaft
10 897701-06030 Bearing wedge Removing ball bearing on PTO shaft / drive gear
11 897701-14732 Bearing tool
Removing and installing ball bearings on crankcase / clutch drum
12 897702-30131 Piston pin tool Removing and installing piston pin (Use 10mm dia. adapter)
13 897712-04630 2-pin wrench Removing and installing pawl carrier
14 897714-12330 Oil seal tool Installing crankcase oil seal (clutch side)
15 897714-24330 Oil seal tool
Installing crankcase oil seal (starter side) / PTO shaft bearings
16 897726-21430 Oil seal tool Installing crankcase oil seal (clutch side)
17 897718-03930 Bearing tool Installing crankcase oil seal (starter side)
18 897719-02830 Piston holder Making piston steady to remove and install piston / ring
19 363018-00310 Washer Installing crankcase oil seal (starter side)
20 91020 Limiter plug tool Removing and installing limiter plug
21 897800-79931 Spark tester Checking ignition system
22 897803-30132 Pressure tester Testing fuel pipes/tank and crankcase leakages
23 897826-16131 Pressure plug Plugging intake port to test crankcase / cylinder sealing
24 897827-16131 Pressure plate Plugging intake port to test crankcase / cylinder sealing
25 897831-16131 Pressure plug Plugging exhaust port to test crankcase / cylinder sealing
26 91037 Compression gauge Measuring cylinder compression
27
900300
Ignition Analyzer : PET-9000
Measuring Ignition timing, Primary/Secondary voltage engine speed

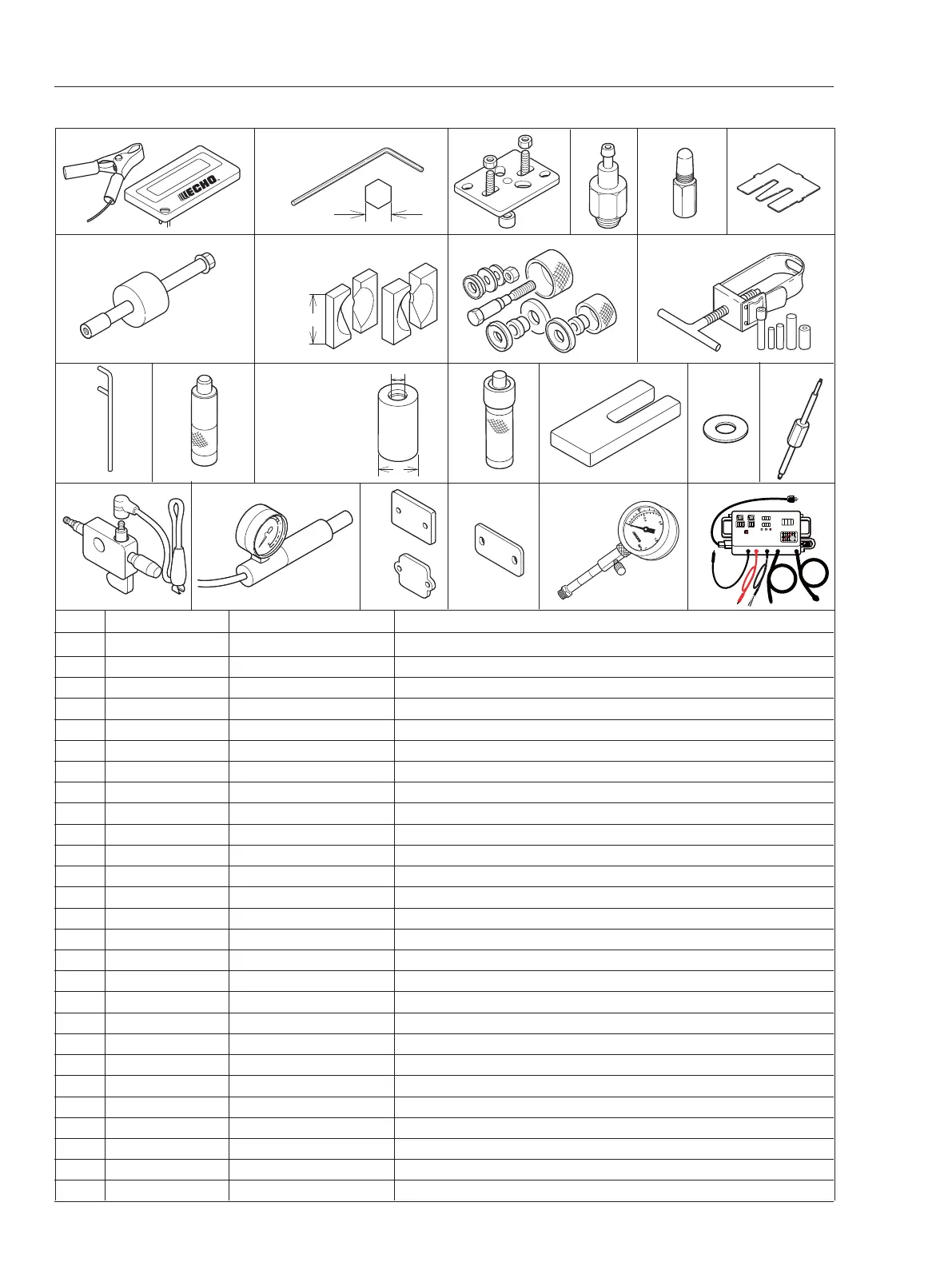

1-6 Special tools
1
8
20
9:
a
= 80
mm
10:
a
= 70
mm
21
4
11
22
24
13
65
12
18
2: a
= 4
mm
3: a
= 5
mm
23
7
17
25
15:
a
= 12
mm
b
= 32
mm
16
: a
= 15
mm
b
= 24.5
mm
19
26
14
