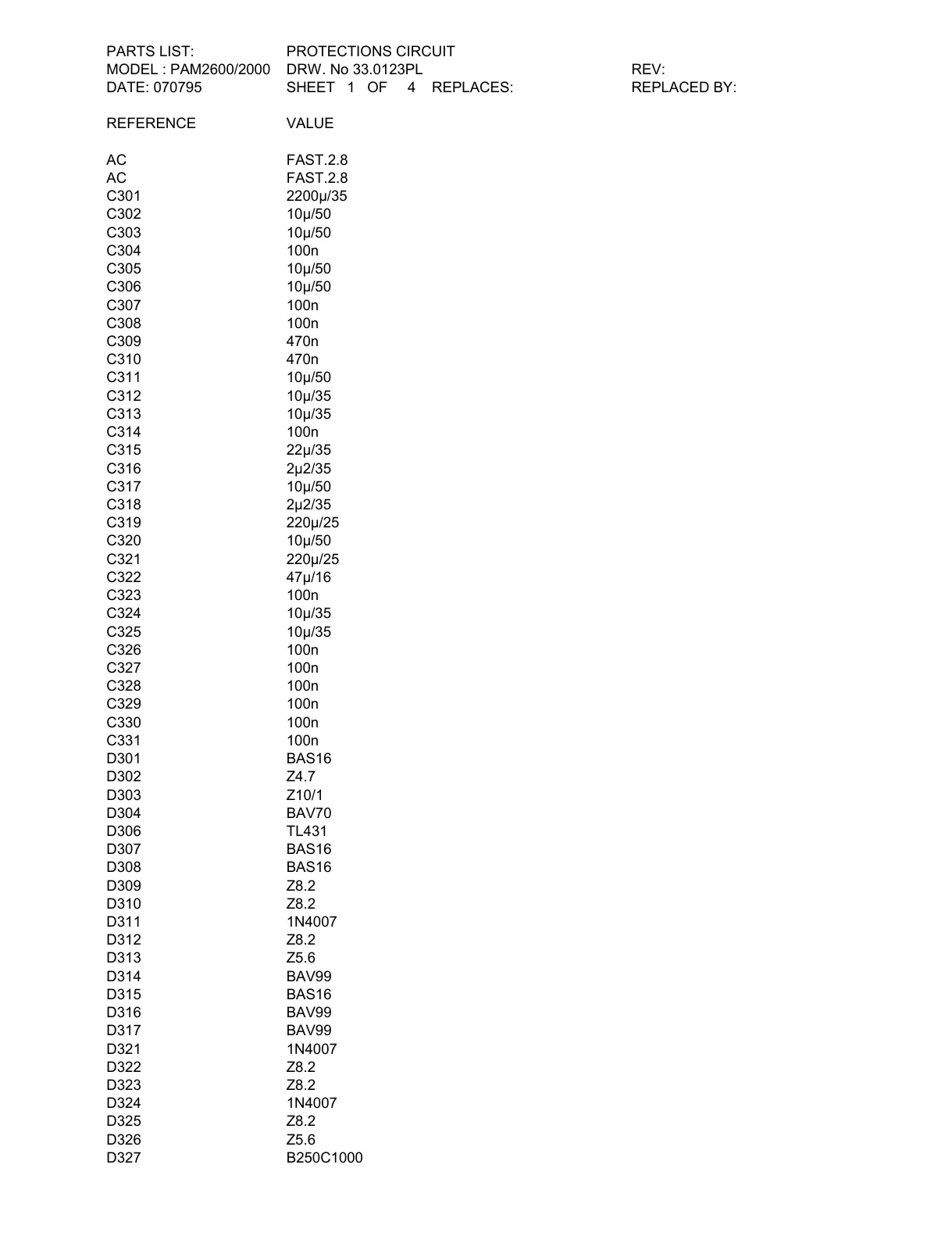

PARTS LIST: PROTECTIONS CIRCUIT
MODEL : PAM2600/2000 DRW. No 33.0123PL REV:
DATE: 070795 SHEET 1 OF 4 REPLACES: REPLACED BY:
REFERENCE VALUE
AC FAST.2.8
AC FAST.2.8
C301 2200µ/35
C302 10µ/50
C303 10µ/50
C304 100n
C305 10µ/50
C306 10µ/50
C307 100n
C308 100n
C309 470n
C310 470n
C311 10µ/50
C312 10µ/35
C313 10µ/35
C314 100n
C315 22µ/35
C316 2µ2/35
C317 10µ/50
C318 2µ2/35
C319 220µ/25
C320 10µ/50
C321 220µ/25
C322 47µ/16
C323 100n
C324 10µ/35
C325 10µ/35
C326 100n
C327 100n
C328 100n
C329 100n
C330 100n
C331 100n
D301 BAS16
D302 Z4.7
D303 Z10/1
D304 BAV70
D306 TL431
D307 BAS16
D308 BAS16
D309 Z8.2
D310 Z8.2
D311 1N4007
D312 Z8.2
D313 Z5.6
D314 BAV99
D315 BAS16
D316 BAV99
D317 BAV99
D321 1N4007
D322 Z8.2
D323 Z8.2
D324 1N4007
D325 Z8.2
D326 Z5.6
D327 B250C1000
