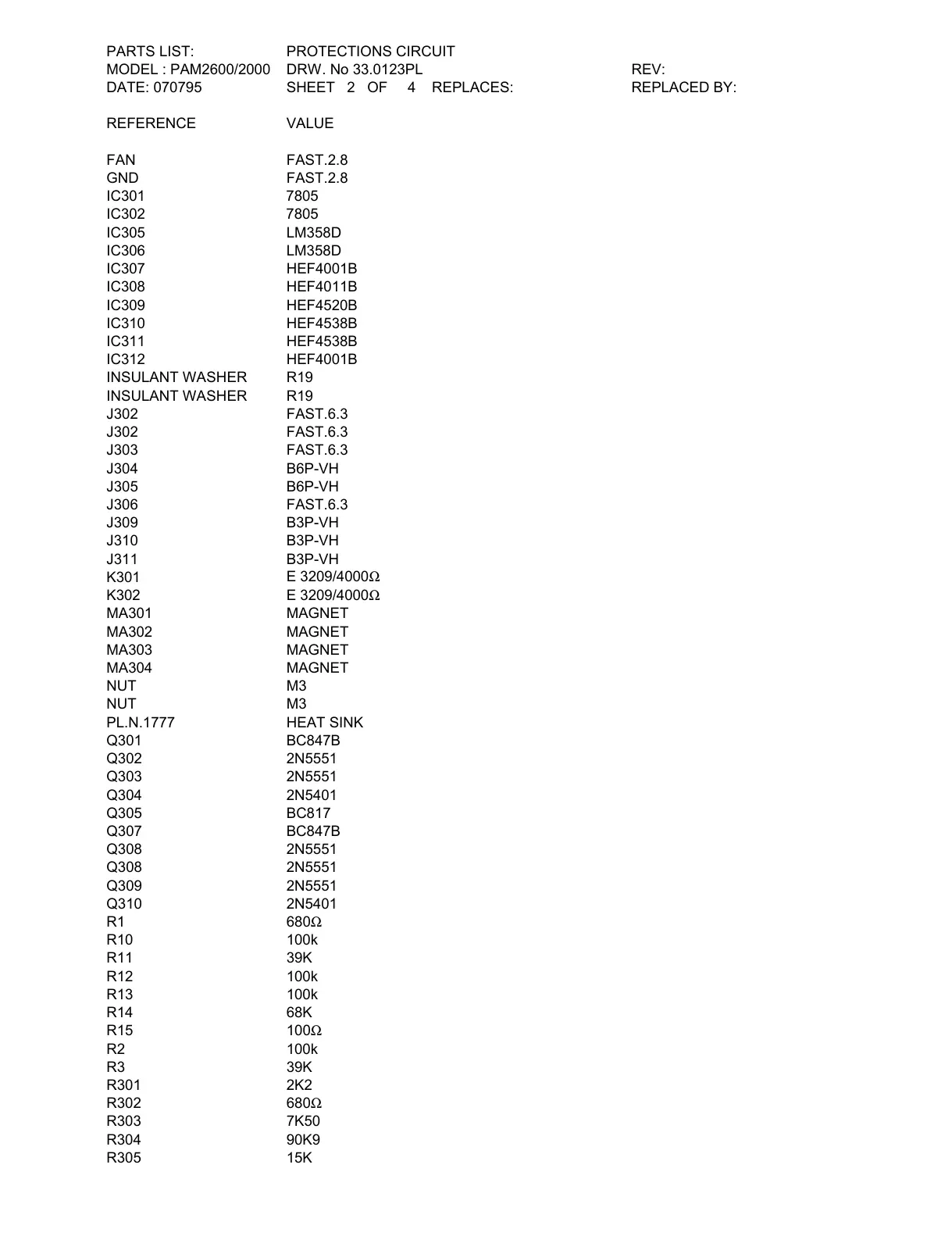

PARTS LIST: PROTECTIONS CIRCUIT
MODEL : PAM2600/2000 DRW. No 33.0123PL REV:
DATE: 070795 SHEET 2 OF 4 REPLACES: REPLACED BY:
REFERENCE VALUE
FAN FAST.2.8
GND FAST.2.8
IC301 7805
IC302 7805
IC305 LM358D
IC306 LM358D
IC307 HEF4001B
IC308 HEF4011B
IC309 HEF4520B
IC310 HEF4538B
IC311 HEF4538B
IC312 HEF4001B
INSULANT WASHER R19
INSULANT WASHER R19
J302 FAST.6.3
J302 FAST.6.3
J303 FAST.6.3
J304 B6P-VH
J305 B6P-VH
J306 FAST.6.3
J309 B3P-VH
J310 B3P-VH
J311 B3P-VH
K301
E 3209/4000
Ω
K302
E 3209/4000
Ω
MA301 MAGNET
MA302 MAGNET
MA303 MAGNET
MA304 MAGNET
NUT M3
NUT M3
PL.N.1777 HEAT SINK
Q301 BC847B
Q302 2N5551
Q303 2N5551
Q304 2N5401
Q305 BC817
Q307 BC847B
Q308 2N5551
Q308 2N5551
Q309 2N5551
Q310 2N5401
R1
680
Ω
R10 100k
R11 39K
R12 100k
R13 100k
R14 68K
R15
100
Ω
R2 100k
R3 39K
R301 2K2
R302
680
Ω
R303 7K50
R304 90K9
R305 15K
