Eclipse CD3100 - Device Controls and Features; Front Panel Layout and Controls

Names of controls and parts
13
III
Names of controls and parts

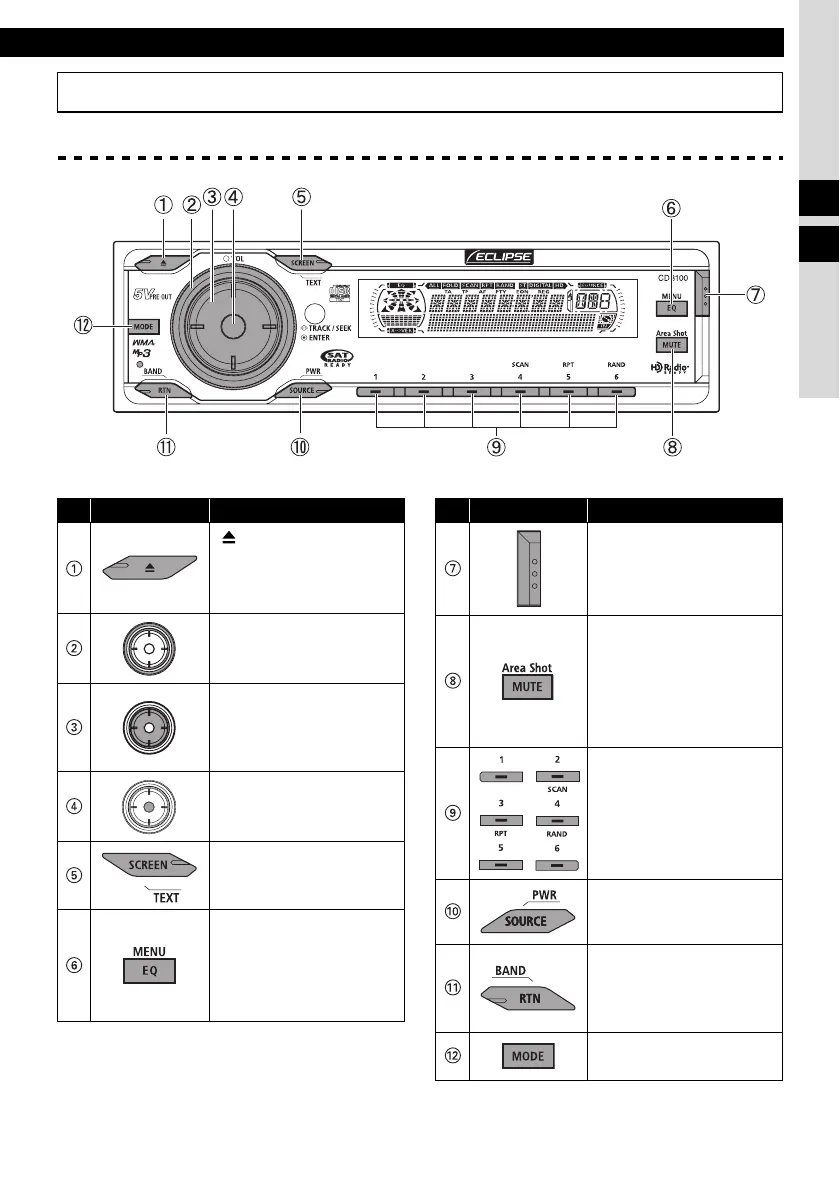

Front view
No. Button Name/Working
[ (OPEN/EJECT)]
button
Opens/closes front panel
and ejects CD.
[VOL] button
Adjusts volume.
[SELECT] button
Selects radio station and
CD tracks.
Selects setting items.
[ENTER] button
Enters selected item.
[SCREEN/TEXT] button
Switches screen pattern.
Switches title display.
[EQ/MENU] button
Switches preset EQ
mode.
Switches menu selection
mode.
No. Button Name/Working
[Release] button
Detach the right end of
the front panel from the
body of the main unit.
[MUTE/Area Shot]
button
Activates and deactivates
mute.
Switches Area Shot
function.
Buttons [1] to [6]
Selects radio preset
channels and performs
disc mode functions.
[SOURCE/PWR] button
Switches audio mode.
[RTN/BAND] button
Returns to previous
screen.
Switches radio band.
[MODE] button
Switches to rotary mode.
