5.3.2 Installation place
Horizontal installation
5.3.3 Install the main body

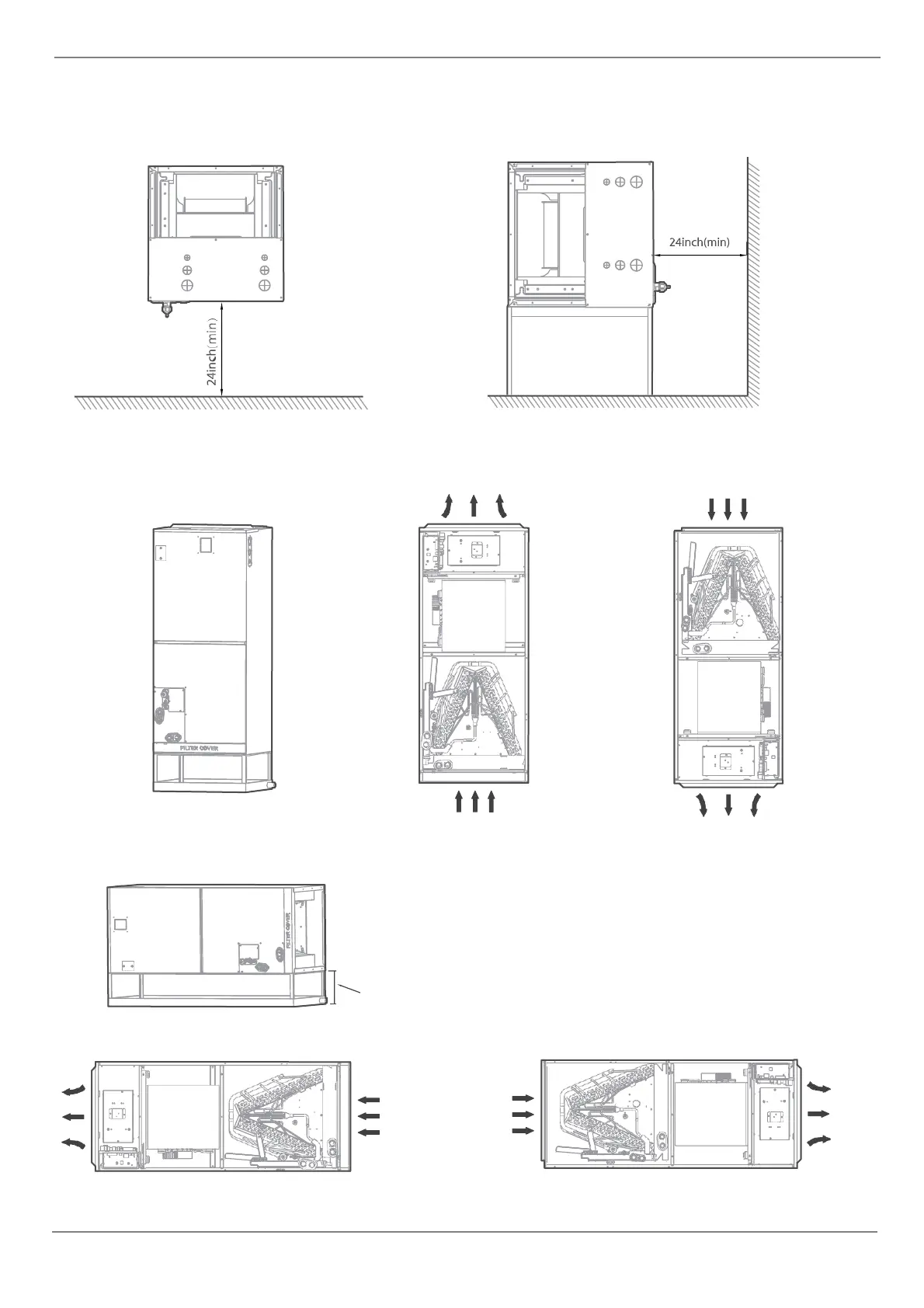

The unit may be installed in one of the upflow, downflow, horizontal left or horizontal right orientations.
Vertical installation
Horizontal installation
NOTE: For installation, an drain pan(not supplied) must be installed.
At least 18in(46cm)
Vertical installation
Horizontal left Horizontal right
Upflow
Downflow
