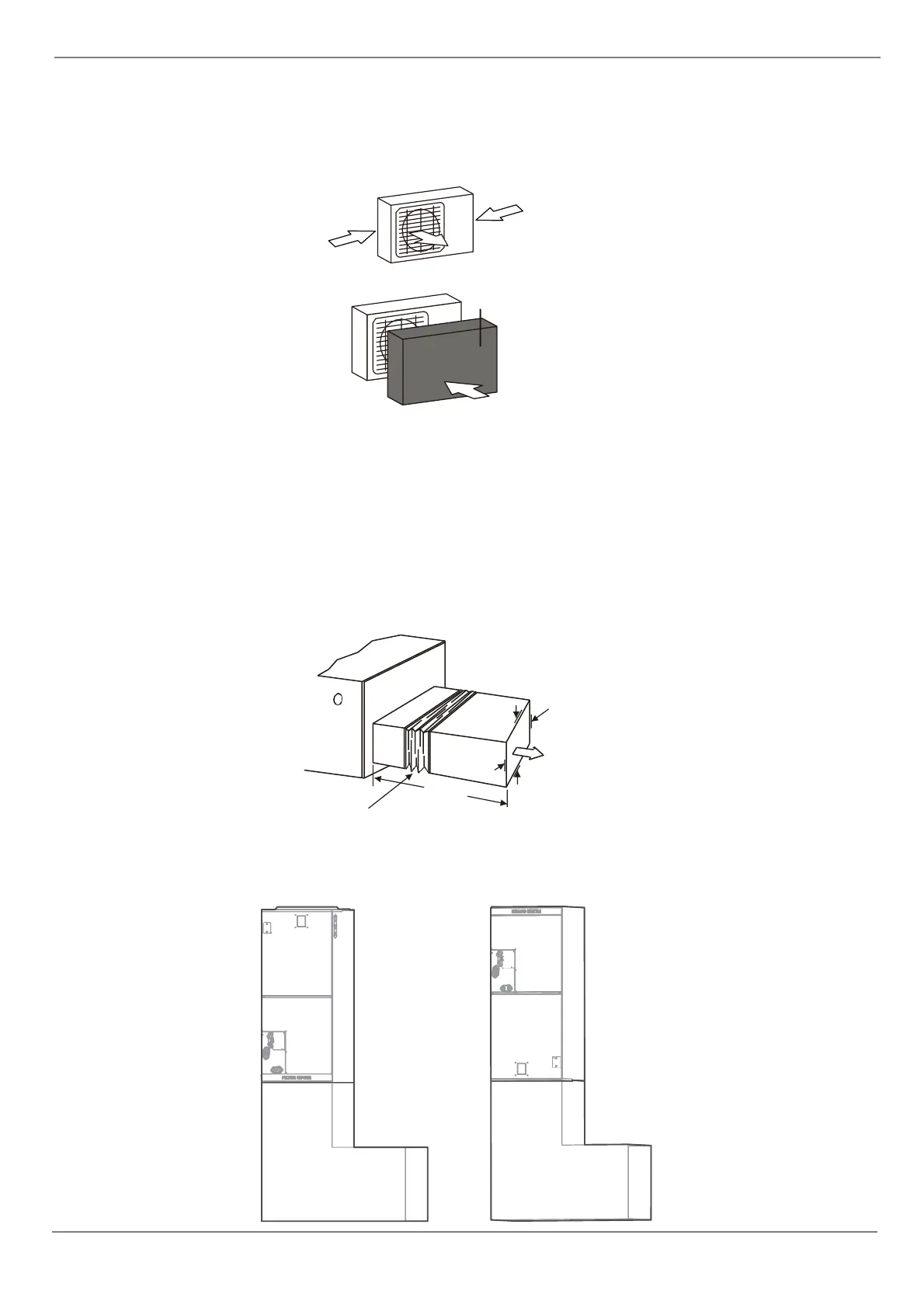

5.2.5 If the unit is exposed to heavy wind:
Strong wind
Strong wind
Wind Baffle
Strong wind
5.2.6 If the unit is frequently exposed to heavy rain or snow:
Build a shelter above the unit to protect it from the rain or snow. Be careful not to obstruct air flow around the unit.
5.2.7 If the unit is frequently exposed to salty air (seaside):
Use outdoor unit that is specially designed to resist corrosion.
MINIMUM
CLEARANCE OF
25.4mm/1″ALL SIDES
FLEXIBLE DUCT COLLAR
Vertical installation
When installed vertically (upward or downward), the lower end of the air outlet needs to be connected to the
L-shaped metal air duct and fastened by screws.
or
5.3 Indoor Unit Installation(AHU)
• Install unit so that air outlet fan is at a 90° angle to the direction of the wind. If needed, build a barrier in
front of the unit to protect it from extremely heavy winds.
1.5
m/
59
″
