Ecoflam Blu 5000.1 PR - Working Fields; Overall Dimensions

pag.14
B LB 832 BLU 5000.1 - 6000.1 PR / MD
Technical data Blu 5000.1 PR Blu 6000.1 PR Blu 5000.1 MD Blu 6000.1 MD
Thermal power max. kW 5.000 5.800 5.000 5.800
kcal/h 4.310.000 5.000.000 4.310.000 5.000.000
Thermal power min. kW 1.200 1.500 1.200 1.500
kcal/h 1.034.500 1.290.000 1.034.500 1.290.000
Max. natural gas capacity
Nm
3
/ h 500 580 500 580
Min. natural gas capacity
Nm
3
/ h 110 150 110 150
Natural gas pressure mbar 70÷300 70÷300 70÷300 70÷300
Voltage 50 Hz V 230/400 230/400 230/400 230/400
Motor power kW 11 15 11 15
Rpm N° 2800 2800 2800 2800
Fuel : P.c.i. Natural gas = 35,9 Mj / Nm
3
= 8.570 kcal / Nm
3

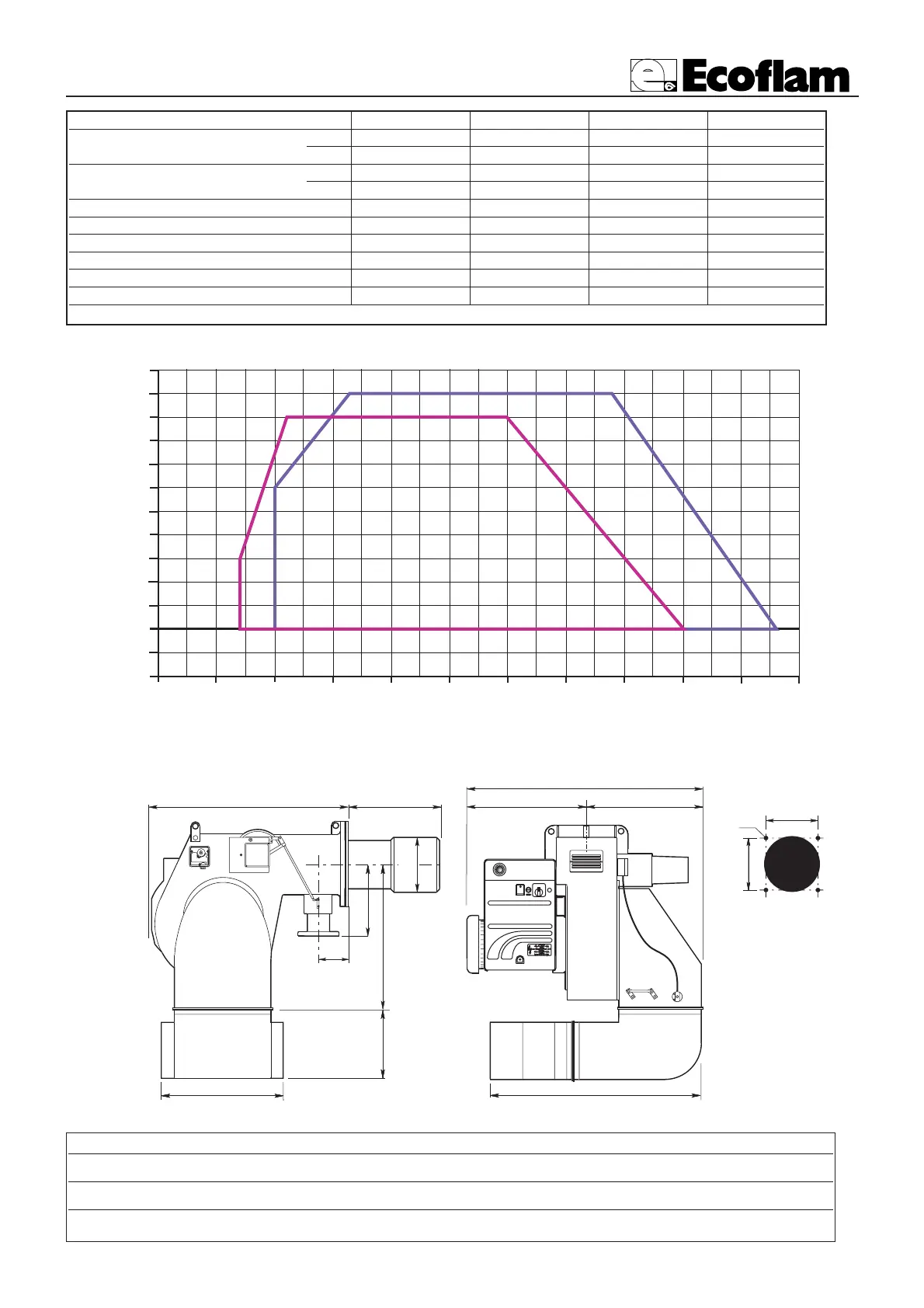

WORKING FIELDS
Output
Backpressure in comb. chamber
OVERALL DIMENSIONS
MODELS A B C D D1 E F G H I L M N O
Blu 5000.1 1019 495 524 375 575 970 320 565 400 330 330 M16 195 250
Blu 6000.1 1069 545 524 375 575 970 320 565 400 330 330 M16 195 250
D= Short head D1= Long head
