pag.19
LB 832 BLU 5000.1 - 6000.1 PR / MD B

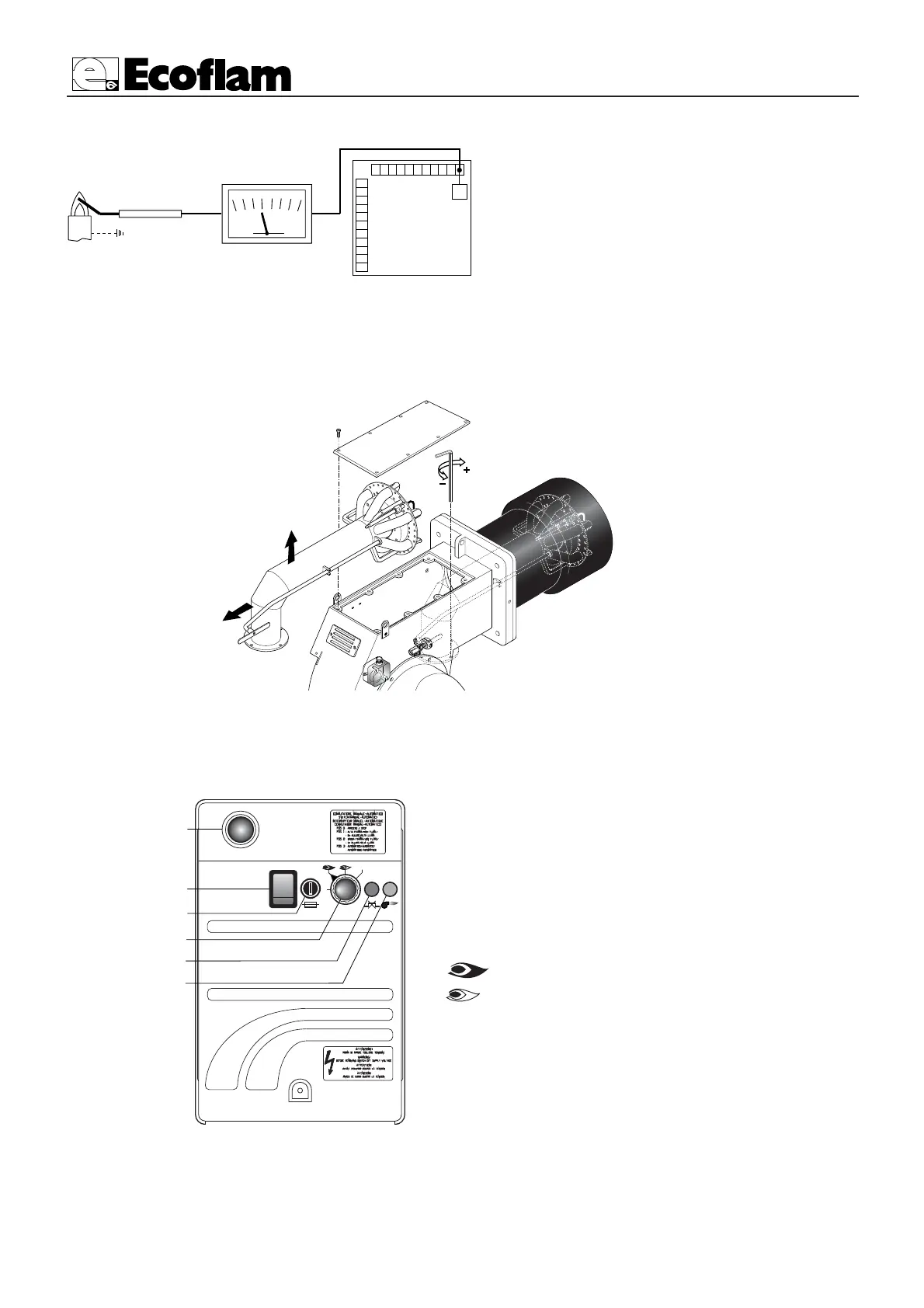

FIRING HEAD DISASSEMBLY
The ionization current is checked by inserting a microam-
meter with an end of scale of 50 µA (d.c.) in series with the
ionization probe. A faulty position of the electrode can lead
to a reduction in the ionization current and cause a safety
cut-out of the burner due to a flame detection failure. In this
case, check the position of the electrode, its electric connec-
tion and the earthing of the burner.
24
min. 6 µA
LANDIS LFL1.622
Microamperometro
fondo scala 50 µA
IONIZATION CURRENT
Microammeter
50 µA end of scale
A
B
C
D
A- main switch I / O
B- fuse
C- selector :
0 = operating elements locked in an
intermediate position
= operation on maximum capacity
= operation on minimum capacity
AUTO = automatic operation
D- thermal relaylock-out lamp
E - working lamp
F- reset key
E
F
0
AUTO
0
I
DESCRIPTION OF THE CONTROL PANEL OF THE BURNER
