9
www.ecoflam-burners.com
EN
420010371905

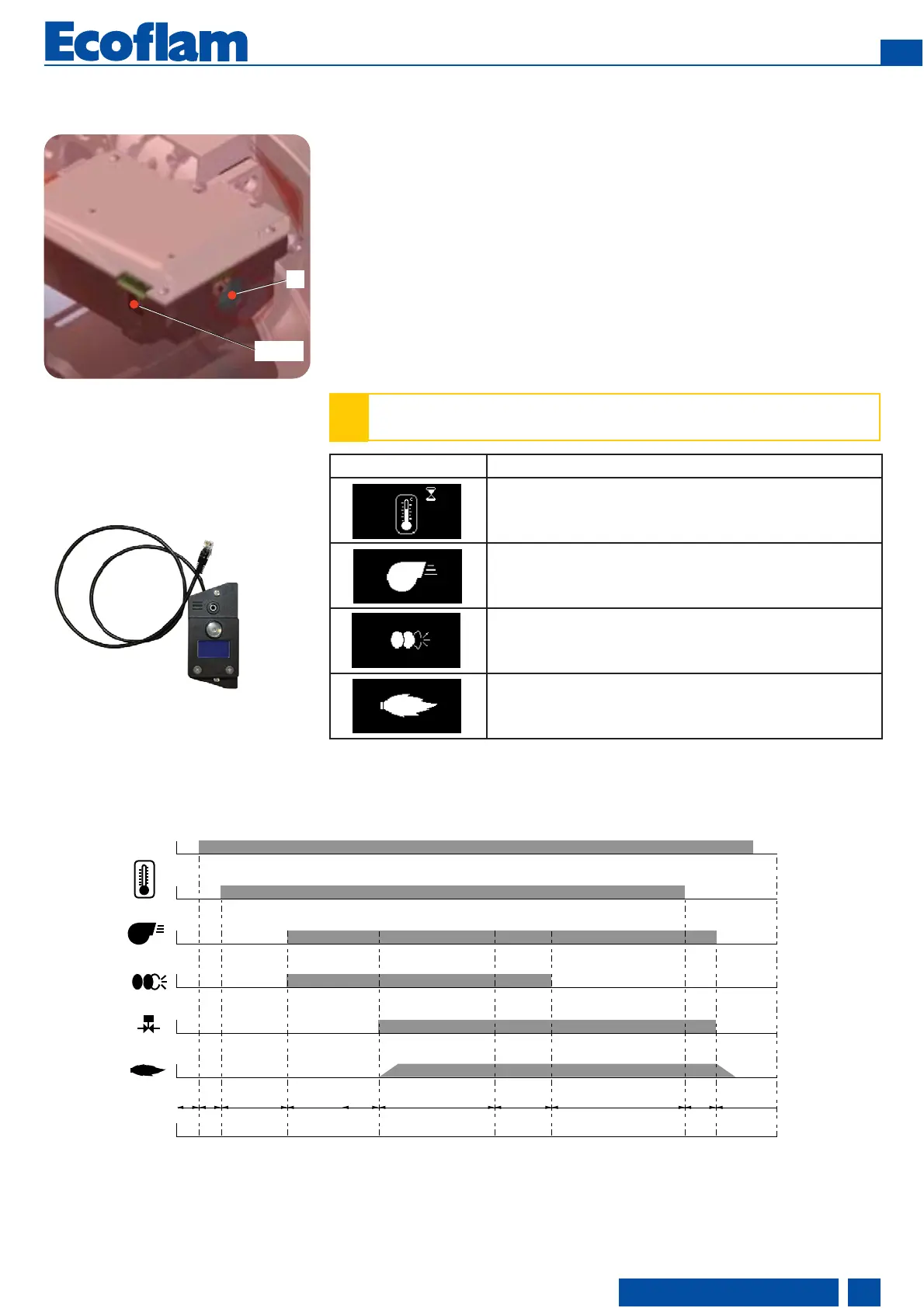

The E-BCU OIL fuel oil control and safety
unit controls and monitors the forced
draught burner. The microprocessor-
controlled program sequence ensures
maximum stability of time periods,
regardless of fluctuations in the power
supply or ambient temperature. The
design of the automatic combustion
control unit protects it from the effects of
brownouts. Whenever the supply voltage
drops below its rated minimum level (170
V), the control unit shuts down - even in
the absence of a malfunction signal. The
control unit switches itself back on again
once the voltage has exceeded the 178 V.
R
RJ45
R- Reset button + lock-out led.
RJ45 - Connector for PC interface
(diagnostic, separate item).
!
Always disconnect the power supply before installing or removing the control unit.
Do not attempt to open or carry out repairs
on the control unit.
Function - E-BCU OIL control and safety unit
KIT E-BCU
DIAGNOSTIC TOOL
(not supplied)
1
< 400s 17s 5s
5s
5s --- -< 1s
23 44 5 6 7 8 9
LINE
C
Locking and unlocking the system
The control unit can be locked (switched
to malfunction) and unlocked (malfunction
cleared) by pressing the R reset button,
provided the system is connected to the
mains power supply.
Symbol Designation
Waiting for heat request
Burner motor on
Start of ignition
Flame present
