Ecoflam MAX 30 - Service and Maintenance; Burner Maintenance Positions; Nozzle, Electrodes, and Fan Maintenance

13
420010280903 Max 15 - 20 - 30
EN

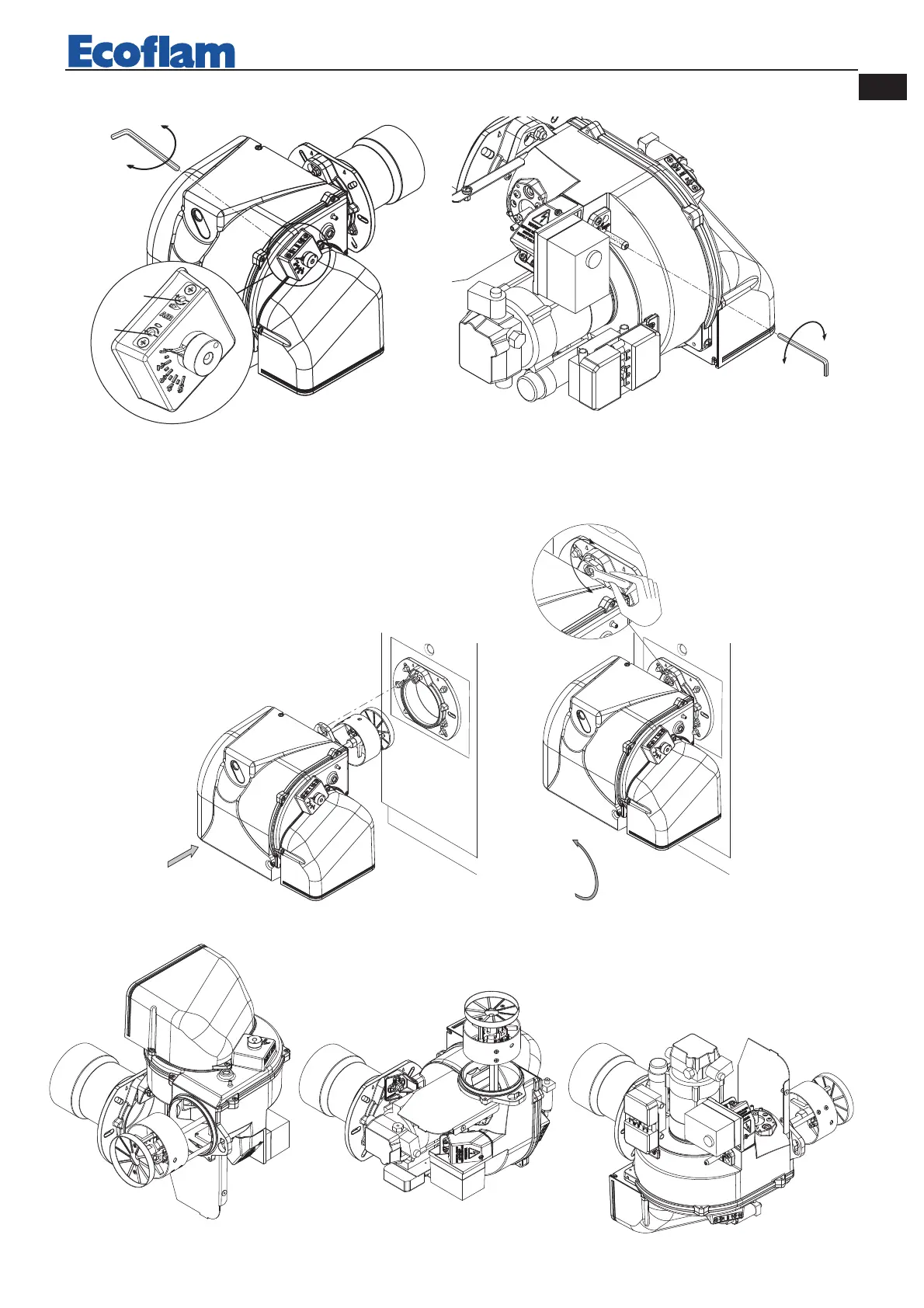

MAINTENANCE POSITION
–
+
2
3
1
MOUNTING TO THE BOILER
A
B
+
-
AIR REGULATION
+
-
0
1
2
3
4
FIRING HEAD SETTING
To adjust air flow, turn the screw A as required. To reduce output, turn screw clockwise, to
increase it turn screw counterclockwise. Note: screw B not used.
