Ecotec Amalfi - Installation Safety and Fixing; 2.10 Seismic Restraint; 2.11 Fixing to Timber Floor Framing

To Next Page

To Previous Page

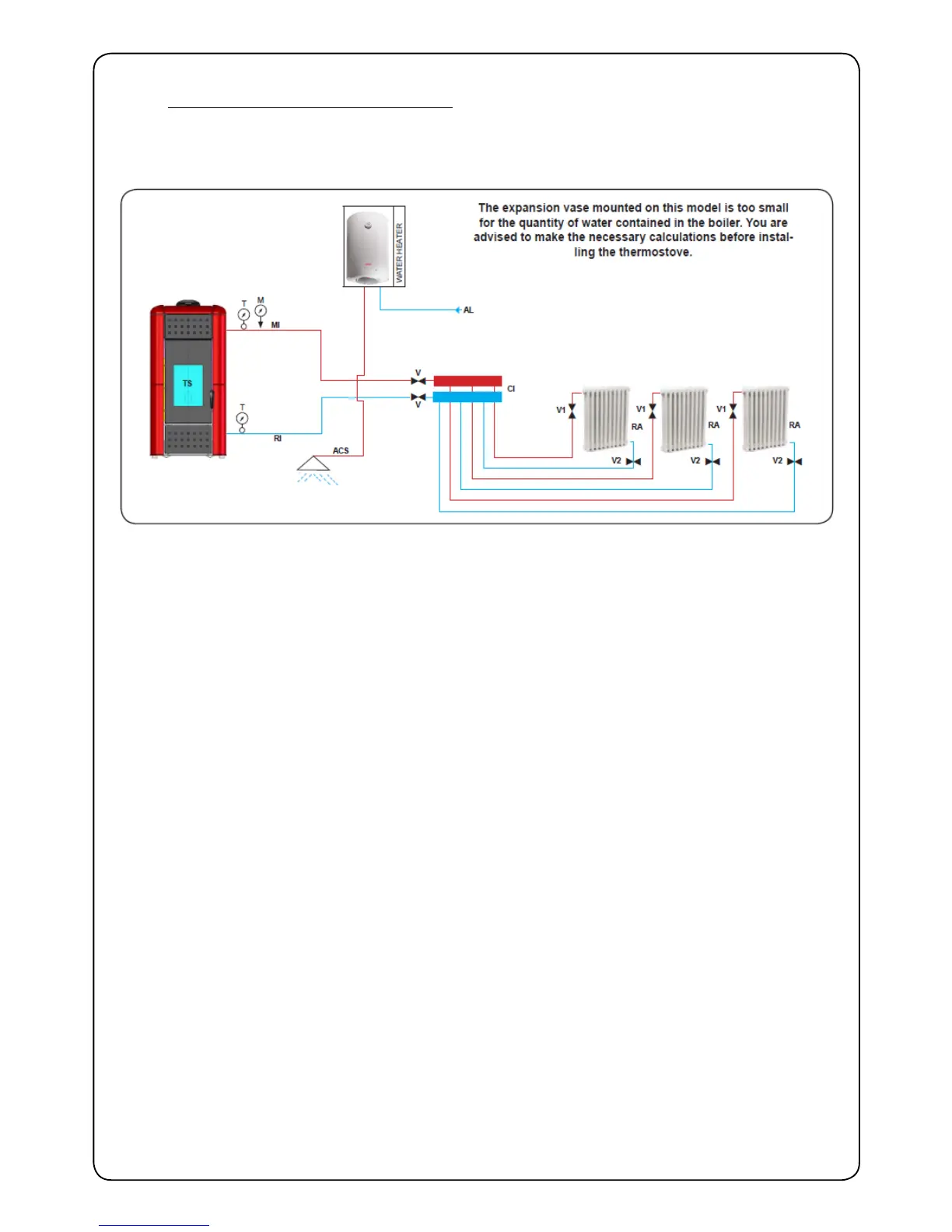

2.9.4 Hydraulic plant Thermostove for heating

This diagram is given as an indication only. Installation must be carried out by a plumber.

2.10 Seismic Restraint

All installation scenarios for Amal require the use of hold-down anchors (one on each side).

Fixing to Concrete Floor:

• Minimum M8 expansion anchors (M10 recommended) or min M8 epoxy- set anchors.

• Approved Anchors: Expansion Anchors-Ramset Dynabolt and Trubolt, Hilti HAS.

• Epoxy-set Anchors – Ramset Epcon, Ramset Chemset and Hilti HVU.

2.11 Fixing to Timber Floor Framing

Minimum 14g x 60 screws (6.3mm diameter) or M10 X 90 coach-screws. These shall be xed a minimum

of 40mm into the centre-line of the existing oor joists. If screws cannot be installed directly into an

existing oor joist, solid blocking between joists (min size 90x45) shall be provided.

Figure 27.
