Ecotric Vortex - Seagull

10
OPERATING PROCEDURES
For Seagull

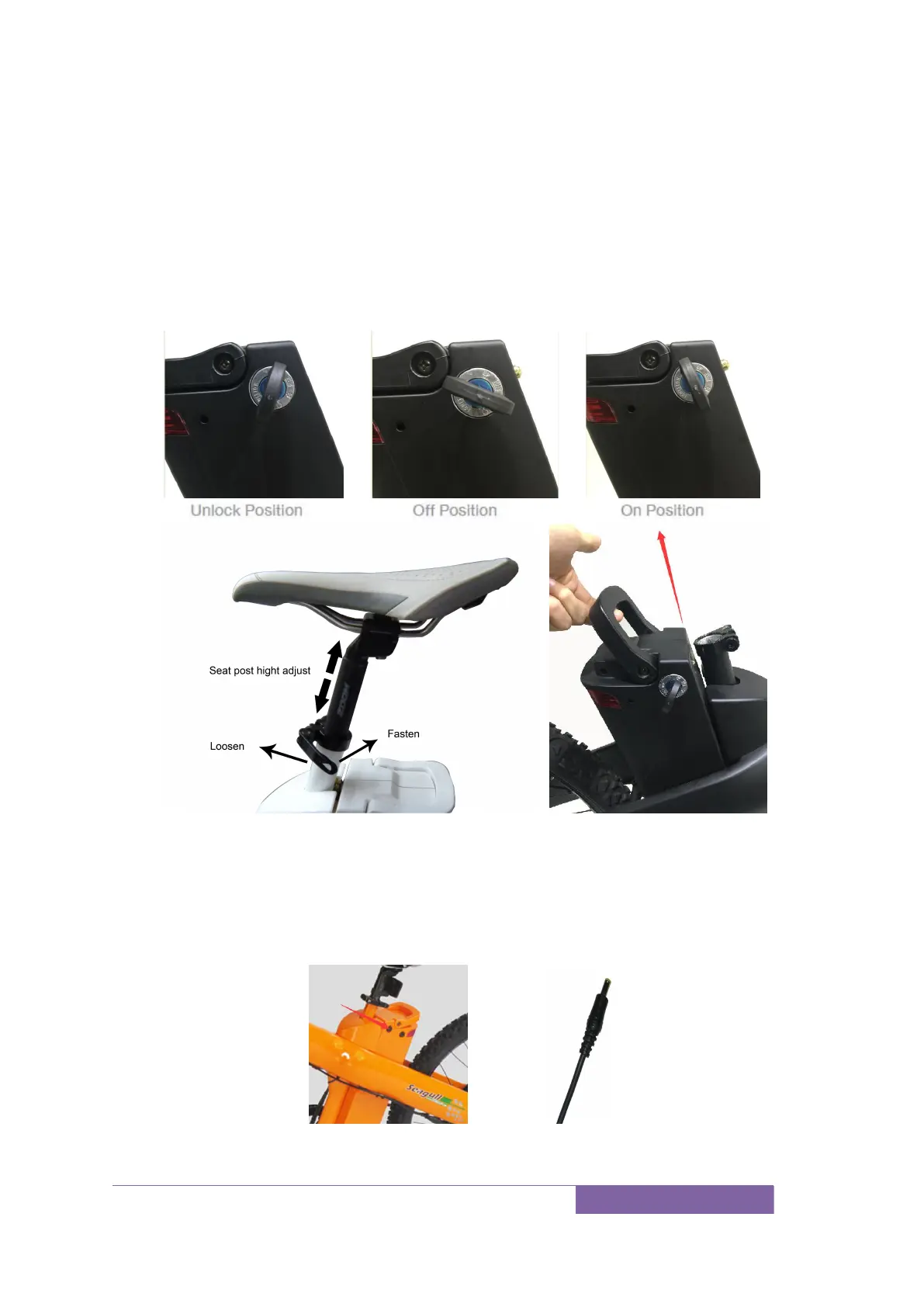

 To remove or insert the battery
Removable battery under the seat. Lift up the seat by loose the seat clamp(Figure 1)
to create room to insert and remove the battery, move the seat away from the bike,
turn the key to the "Off" position and press the key to "UNLOCK" position, Lift up the
hand shank on the top of the battery (Figure 2) and remove or insert the battery. The
key switch must be in the unlock position to slide the battery in and out.
 Charging of battery
To charge the battery, plug the charger into an AC outlet. The LED indication
light should be green showing the charger is working normally. Then plug the charger
plug(Figure 2) into the charging port on the bike(red arrow on Figure 3).
Figure 1
Figure 2
Figure 1
Figure 2
